Installation
Curtain Locations

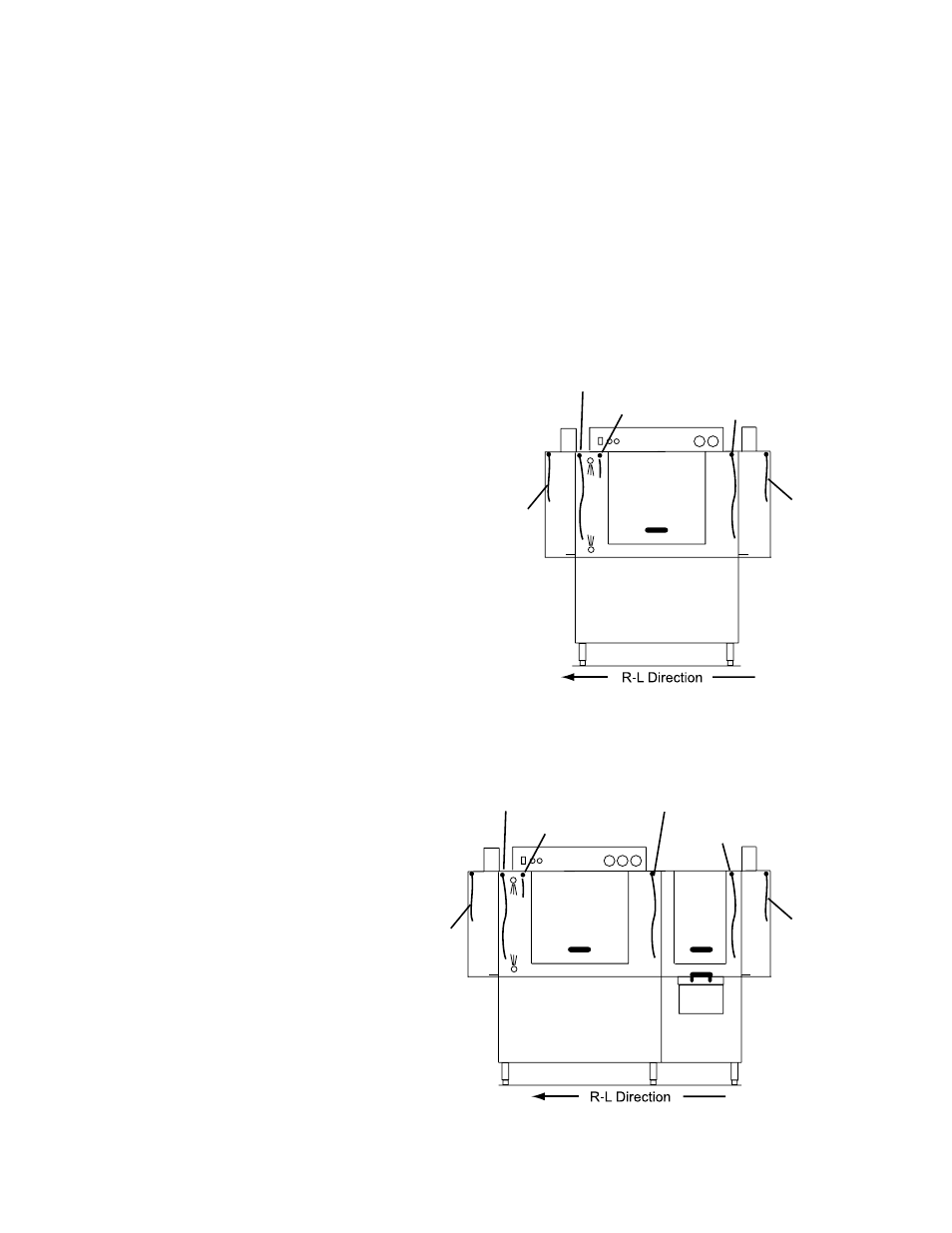

1. Refer to the illustrations below and hang the curtains as shown.
J-hooks are located in the corners of each section to accept the curtain rods.
• Standard long curtains 24" x 20-1/4"
• Standard medium curtains 24" x 13-/14"
• Standard short curtain 24" x 6-1/4"
2. Make sure the that the short flaps of the curtains face the load end of the dishwasher.
NOTE:
Misplacing a curtain or failing to
install a curtain will adversely affect
the proper operation of the machine.
Wash
Medium Curtain
Medium Curtain
Long Curtain
Long Curtain
Short Curtain
Wash Prewash
Long Curtain
Medium Curtain
Medium Curtain
Long Curtain
Long Curtain
Short Curtain
