Installation
Installing the Lower Spray arm Assembly

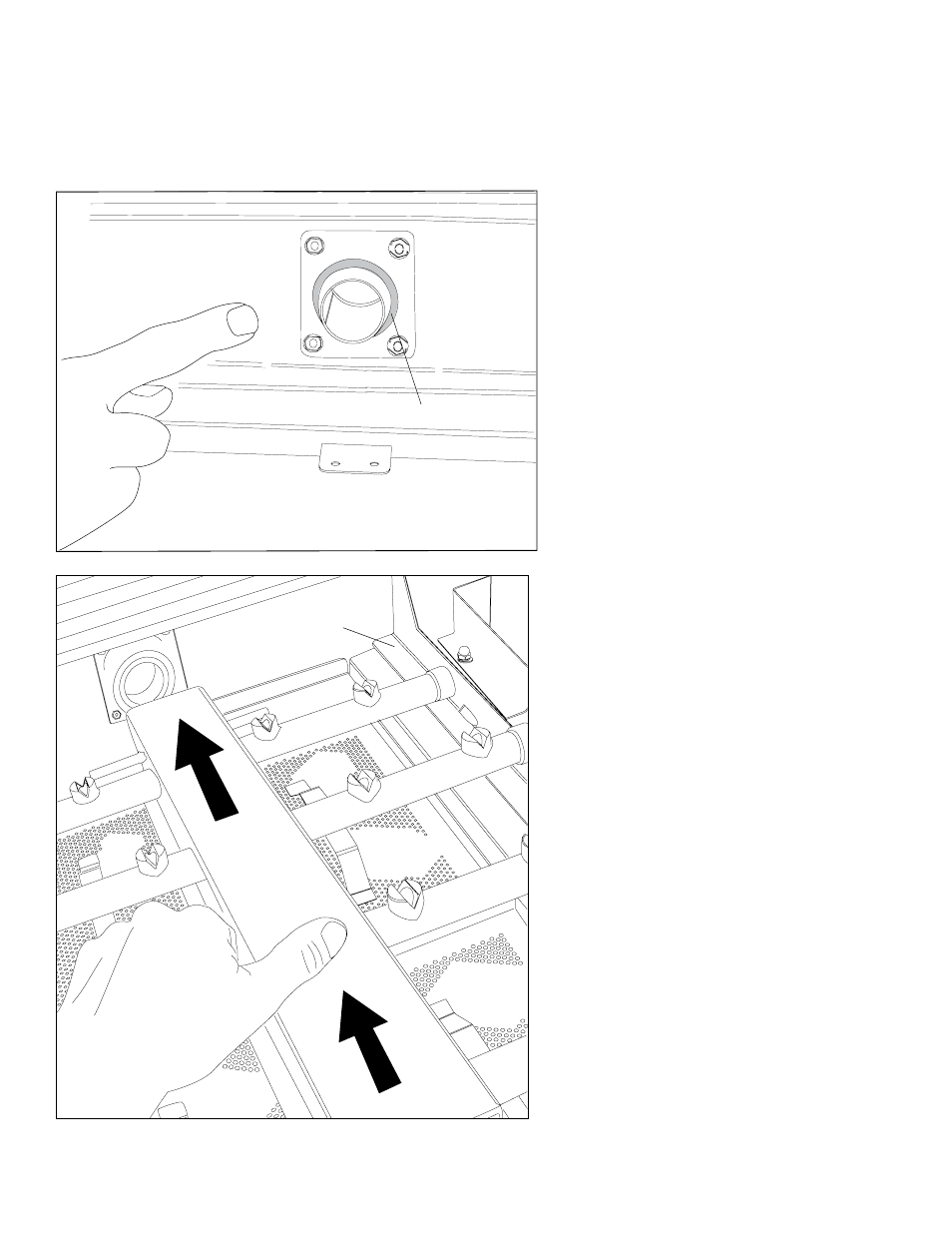

1. The lower spray arm assembly is
connected to the rear wall of the
wash tank.
2. The spray arm o-ring makes a
water-tight seal when the spray
arm is properly seated.
3. Slide the lower arm into place
making sure the spray arm is
fully back and contacting the
spray arm o-ring.
4. The spray pipes are supported on
each side by the spray arm
guides and will lock the spray arm
securely in place.
Spray Arm O-ring
Spray Arm Guide
