12
1. Upper Wash Arm
Rear Guide Pin
The rear guide pin is
attached to the rear of
the upper wash arm. It
mates with the upper
wash arm rear support.
2. Connection Flange Pins
The connection flange
pins are welded to the
sides of the upper wash
arm. These pins mate
with two slots in the
connection flange to
hold the wash arm in
place when installed.
3. Upper Wash Arm
Front Guide Pin
The front guide pin is
attached to the front
of the upper wash arm.
It mates with the front
supports.
4. Front Supports
There are two fronts
supports which hold
the front of the upper
wash arm in place when
the wash arm is installed.
Installing the Upper Spray Arm Assembly (continued)
Installation
Upper Wash Arm
Front Supports
Upper Wash Arm Front
Guide Pin
6
7
Upper Wash Arm
Upper Wash Arm
Rear Guide Pin
Connection
Flange Pin
Connection
Flange Pin
Rear Support
4
5 5

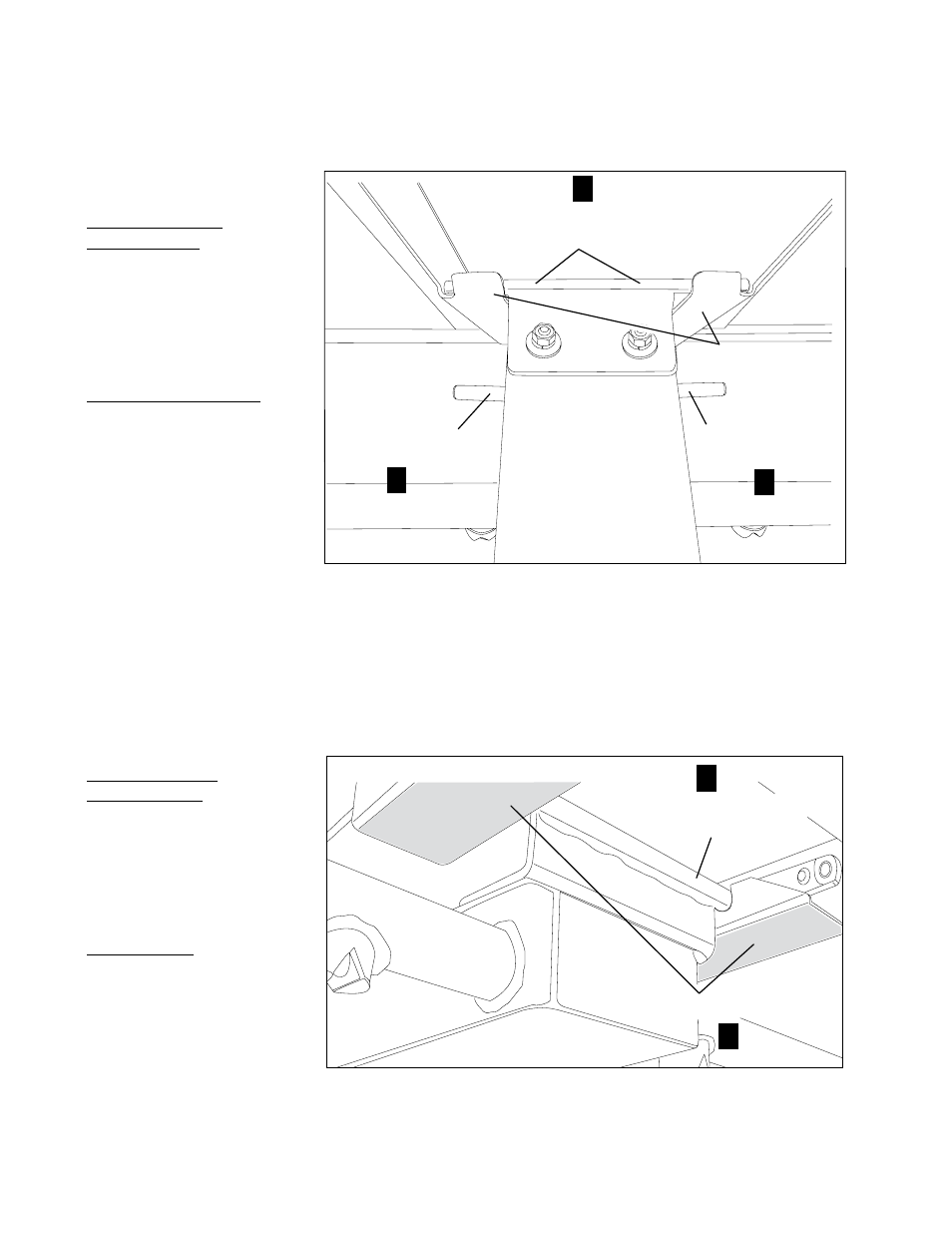

The upper wash arm is shown with the rear guide pin placed on the rear support
before sliding the upper wash arm into position.
The upper wash arm is shown with the front guide pin resting in the front supports.
