88
Rack Control Module Operation
Plate 6:
1. Doors closed.
2. Power light ON.
3. Floats up.
4. Tanks full.
5. Tank heat enabled.
6. Booster heat enabled.
7. Rack has exited the
machine/final rinse
switch de-activated.
8. Final rinse valve
disabled.
9. Rinse aid disabled.
10. RCM timer 90 second
interval complete.
11. Pumps and drive motor
off.
Plate 5:
1. Doors closed.
2. POWER light ON.
3. Floats up.
4. Tanks full.
5. Tank heat enabled.
6. Booster heat enabled.
7. Rack switch
de-activated.
8. Rack has moved
through the machine
to the final rinse zone
and activated the final
rinse switch.
9. Final rinse valve
enabled.
10. Rinse aid enabled.
11. RCM timer counting
down the 90 second
time interval.
12. Pumps and drive
motor running.
Rinse Flt L Wa
sh Flt L
Wa
sh Flt U
Final Rinse Rack Switch
Jam Switch Table Limi
t
Stop Start Pause Power
DR Level Rinse Flt U Prewash Flt L Prewash Flt U
Run
H7
H5 H3
H1
H2
H4
H6
AA Prewash DR
Ta
nk
Rinse
Tank Digital Display
Rinse
Reset
DR Pump
Pumps
Rinse Aid
Prewash Fill
Wash Fill
Final Rinse
Run Light
DR/Rinse Heat
Wash Heat
Booster Heat
RCM Status/Jumpers
= Indicator ON
= Indicator OFF
NOT USED
NOT USED
NOT USED NOT USED

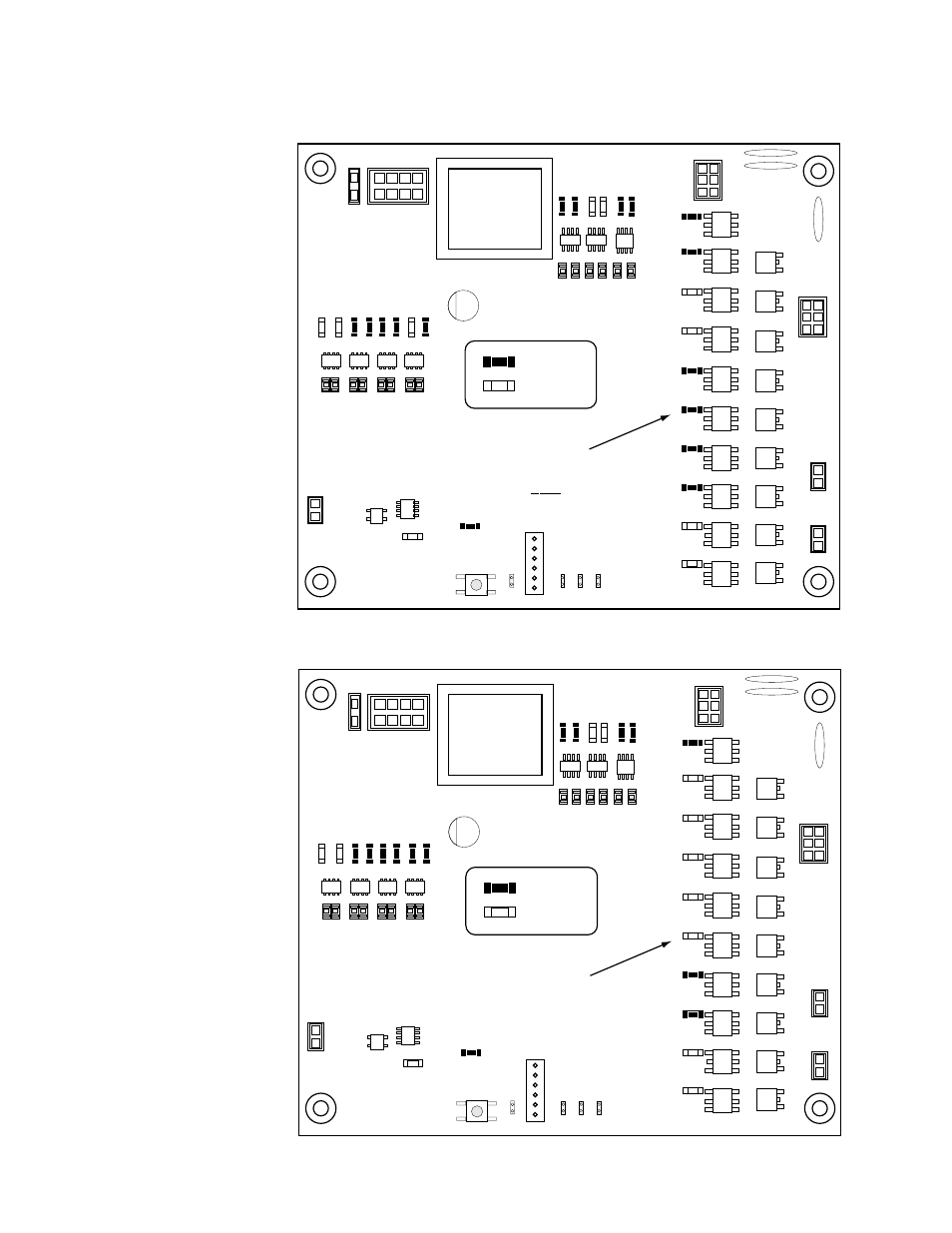

PUMPS light ON shows
the pumps are enabled and
the RCM Timer is counting
for 90 seconds.
Rinse Flt L Wa
sh Flt L
Wa
sh Flt U
Final Rinse Rack Switch
Jam Switch Table Limi
t
Stop Start Pause Power
DR Level Rinse Flt U Prewash Flt L Prewash Flt U
Run
H7
H5 H3
H1
H2
H4
H6
AA Prewash DR
Ta
nk
Rinse
Tank Digital Display
Rinse
Reset
DR Pump
Pumps
Rinse Aid
Prewash Fill
Wash Fill
Final Rinse
Run Light
DR/Rinse Heat
Wash Heat
Booster Heat
RCM Status/Jumpers
= Indicator ON
= Indicator OFF
NOT USED
NOT USED
NOT USED NOT USED
PUMPS light OFF shows
the pumps are disabled and
the RCM Timer has completed
the 90 second time interval.
Normal Operation Sequence
