S41i CO2 Incubator Shaker — Operating manual



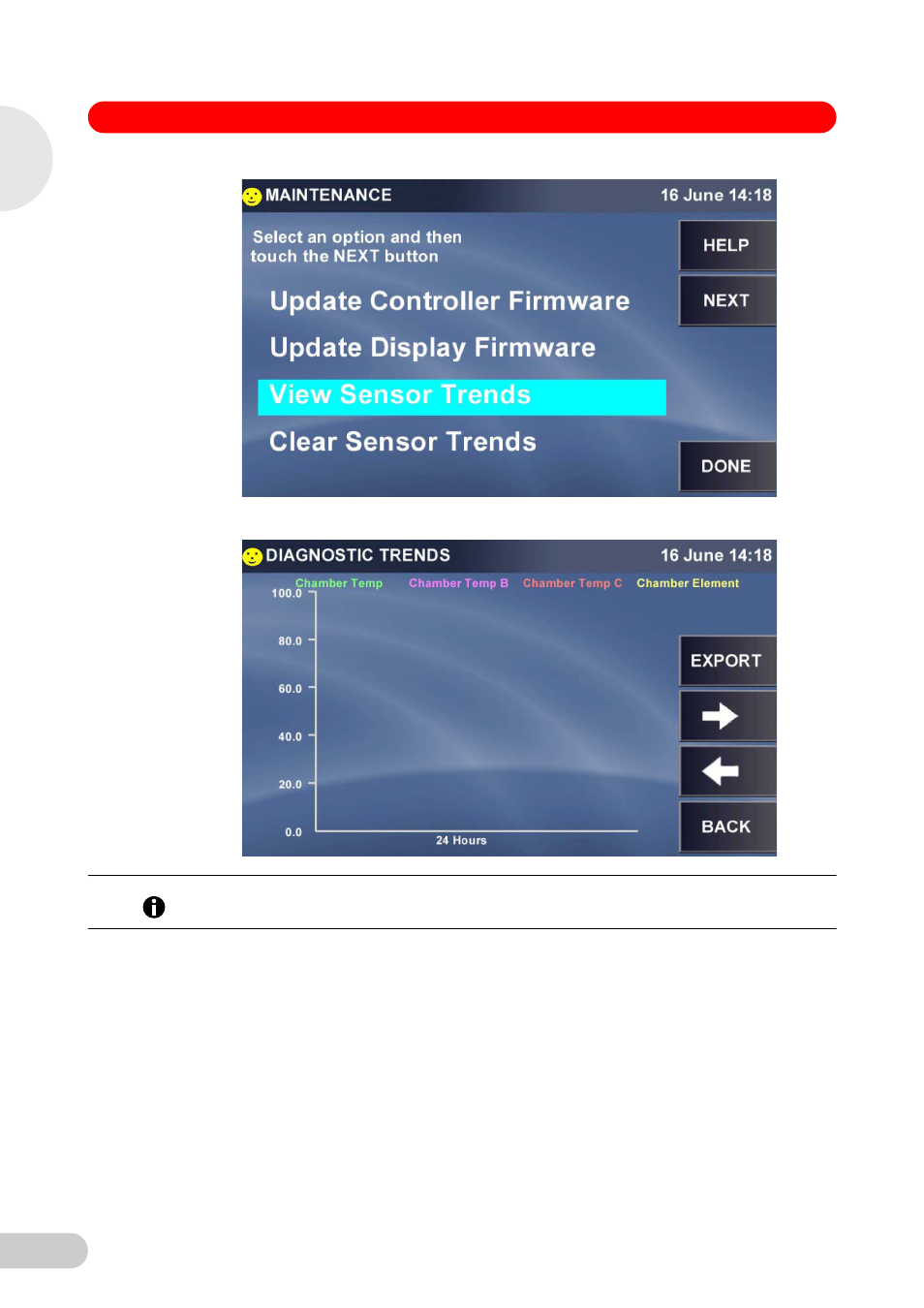

Press the NEXT button to open the first of five DIAGNOSTIC TRENDS screen:

Take special note of the color of each sensor parameter at the top of the screen, to identify its
related trend on the graph.



If the desired information is not displayed here, press the RIGHT arrow button to scroll through
the additional screens.



At any time you can press the LEFT button to return to the previous screen.



As with the Event Graph, at any time you can press the X or Y axis to change the display
parameters of these trends.



At any time you can press the EXPORT button to save diagnostic data to a USB memory stick/
flash drive. You will be prompted with the following screen:

Hint!

These sample screens do not display any logged data, but your screens should be complete with
data.

Operation
