The weight of the incubator/shaker is approximately 152 kg (335 lb), but actual in-use weight will
naturally be heavier and will depend on both the options installed and the material stored in the
incubator/shaker.
The incubator/shaker is designed so that one incubator/shaker can be safely stacked on top of
another S41i using the optional stacking kit, which includes instructions. It is not possible to put
any other type of incubator/shaker or heavy apparatus on top, as the top cover and stacking kit
are designed to support only the feet of another S41i.
4.5 Installation of foot shields
The front and side foot shields (see Fig. 3 on p. 13) are packed on top of the incubator/shaker,
enclosed in bubble wrap. To install them, beginning with the right side foot shield, follow this
procedure:
1. Orient the mounting bracket at the front face of the incubator/shaker, then align the foot
shield’s two keyhole slots with the two mounting pins on the bottom of the incubator/shaker.

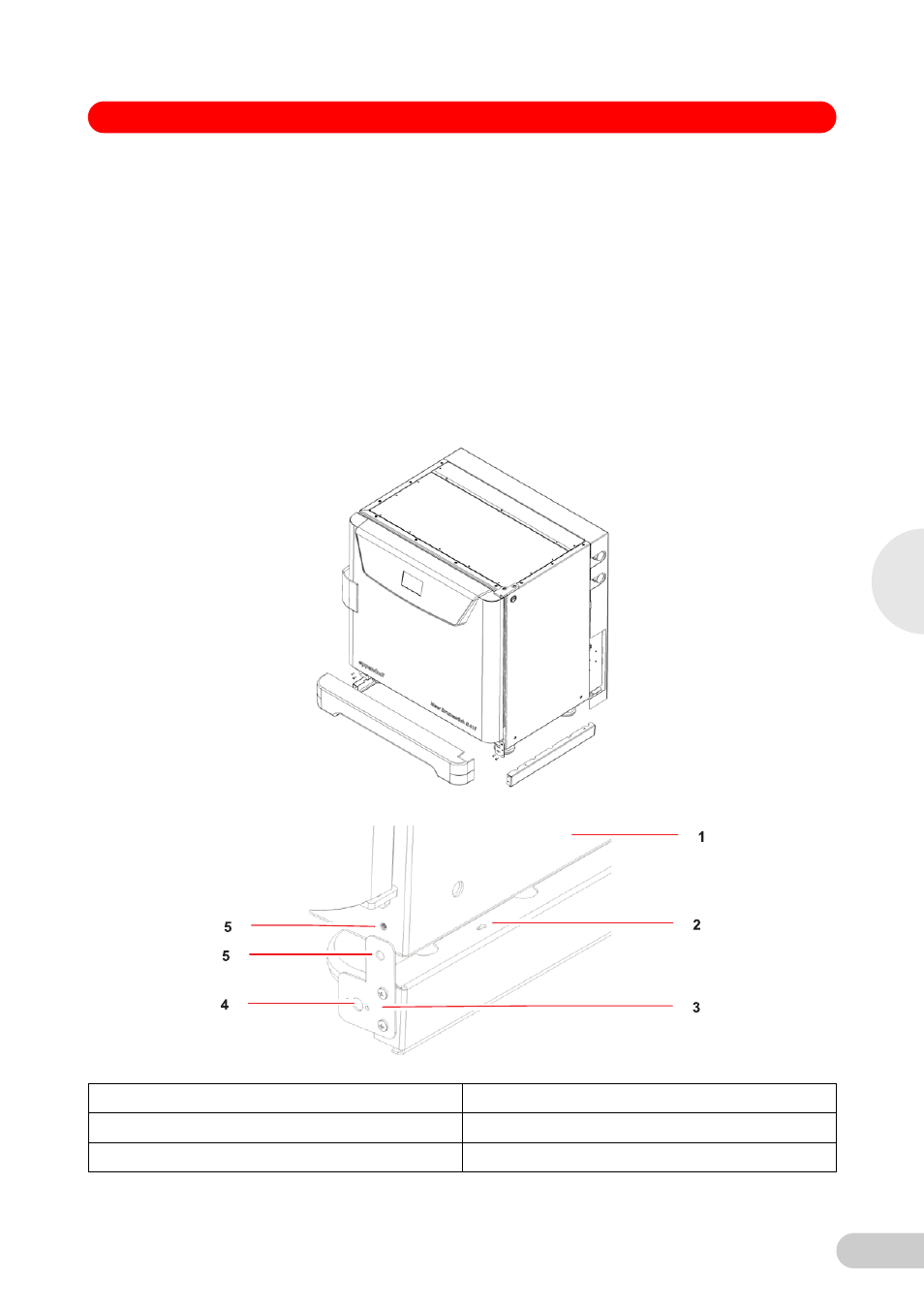

Abb. 3: Front and side foot shields
Fig. 3: Front and side foot shields
Abb. 4: Side foot shield installation
Fig. 4: Side foot shield installation
1 Right side of incubator/shaker 4 Hole for front foot shield’s ball catch
2 Keyhole slot on right side foot shield 5 Hole for M4 screw
3 Mounting bracket
