S41i CO2 Incubator Shaker — Operating manual
16
3. After making sure the sections of tubing are located between the clamp legs, roll the first
girdle down the legs of the clamp as far as it can go. The tubing sections will rest against the
platform, and the springs will be under the clamp base.
4. Place the second girdle around the upper portion of clamp body (just as the first girdle was
initially). Make sure that its spring sections rest against the clamp legs, while its rubber tubing
sections sit against the flask, in between the clamp legs.
Abb. 8: Clamp fastener
Fig. 8: Clamp fastener
New Brunswick flask clamps are used on a variety of incubator/shaker platforms. Flat head
screws of different lengths and thread pitch are used to secure the clamp. The following table
identifies the proper screw for your incubator/shaker application by reference to the head style.
Select the appropriate screws and set the others aside.

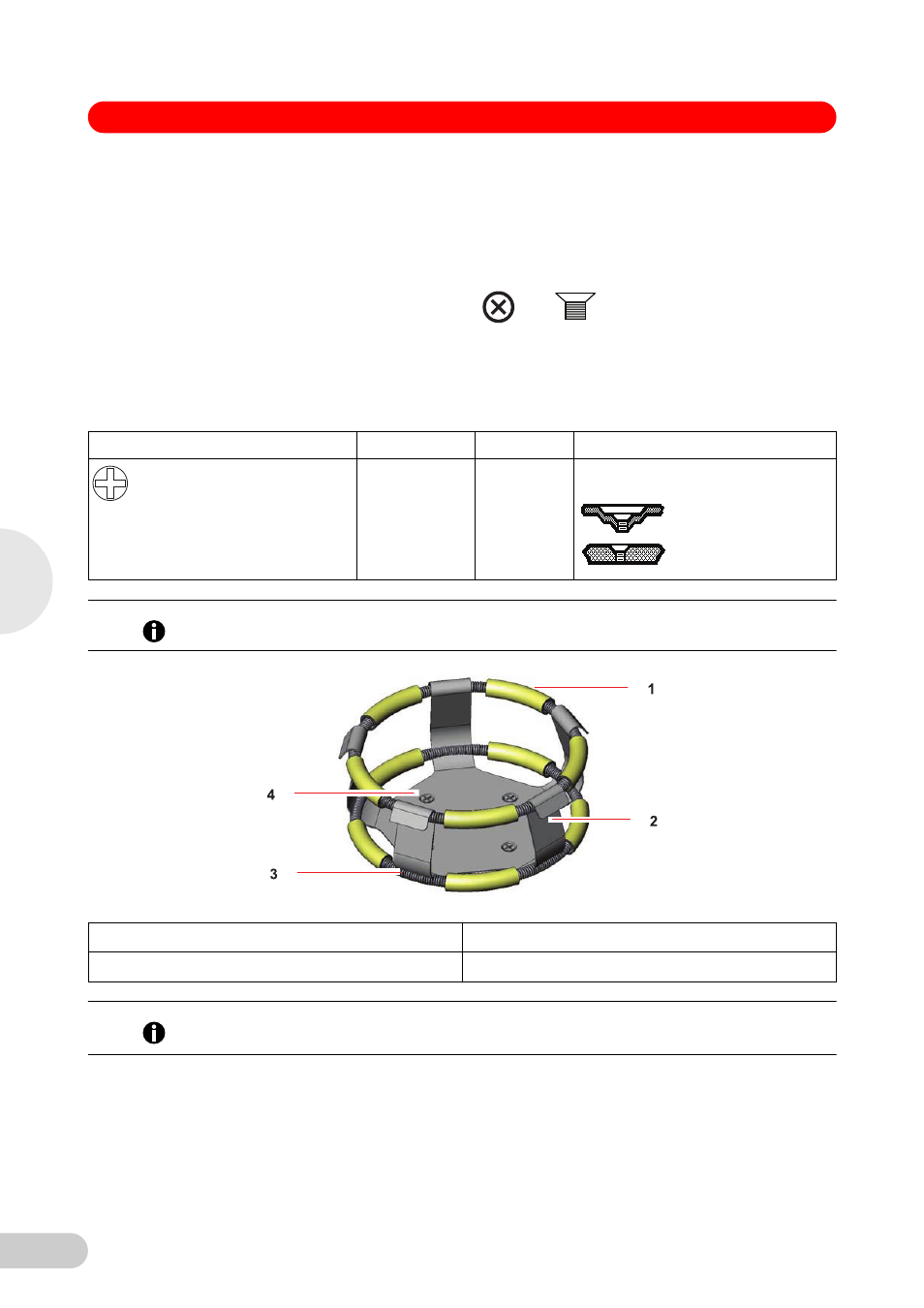

Abb. 9: Double girdle clamp installation
Fig. 9: Double girdle clamp installation
4.9 Stacking instructions
To stack two S41i incubator shakers, you must first have purchased the stacking kit. You will find
the instructions contained in the kit.
Description Part number Qty Application
10-24 × 5/16 (7.9 mm) flat Phillips
(+) head screw
S2116-3051 1 5/16" (7.9 mm) thick aluminum, phenolic
and stainless steel platforms.
Hint!
One-liter and larger flask clamps are fastened with 5 screws.
1 Upper girdle with girdle tubes 3 Lower girdle with girdle tubes
2 Clamp body (legs and base) 4 Clamp mounting holes (quantity: 5)
Hint!
The upper girdle secures the flask within the clamp, and the bottom girdle keeps the flask from
spinning.
4
Installation
