10. DAILY INSPECTION & MAINTENANCE
10 - 8
P/N 0082168

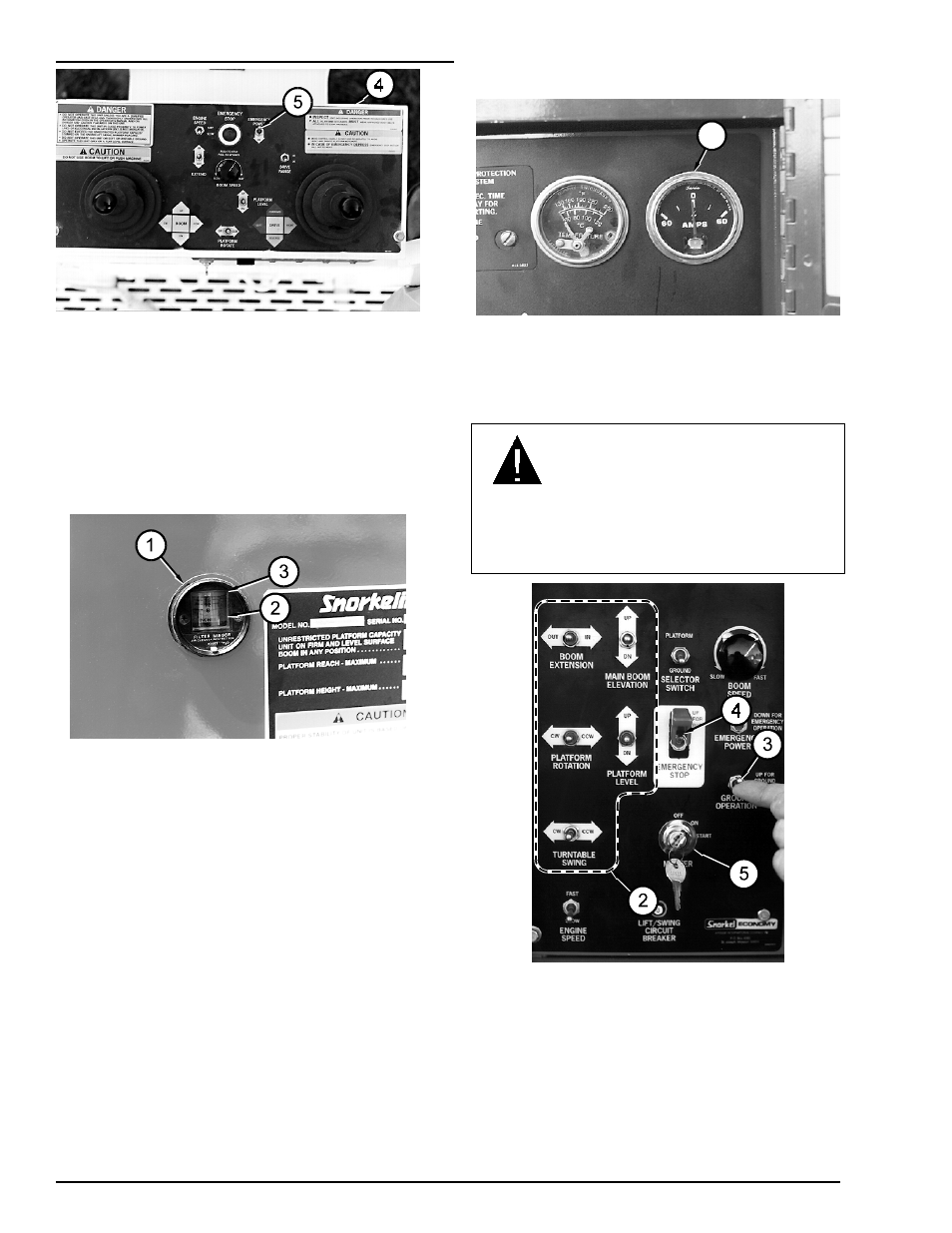

Check each of the boom-movement functions
from the platform-control box (4), using
EMERGENCY POWER (5). Check all positions
of each control. (For correct emergency power
operating procedures see the “EMERGENCY
OPERATION” chapter.)
19. Air filter
Start the engine from the ground-control panel.
The FILTER MINDER gauge (1) has a yellow
disk in it (2). As the air filter clogs the yellow
disk raises toward the red area (3) of the sight
glass. If the yellow disk is in the red, after the
engine has been running for 30 seconds, the
air filter needs to be replaced. (For further
explanation of the FILTER MINDER gauge, see
the “GAUGES & CIRCUIT BREAKERS”
chapter.)
20. Charging system
1
With the engine running, the needle in the
AMPS gauge (1) should not be to the left of “0”
(left of “0” is discharging).
21. Ground-control panel switches and alarms
D A N G E R
When you check TURNTABLE SWING at CW
(1) the turntable will move directly toward
you. Be sure you have room to step
backward.
Check each of the five platform-moving
switches (2) using GROUND OPERATION (3)
to see that they cause the TB 60 to move the
way it should. Check both positions of each
switch. (For correct operating procedures see
the “OPERATION” chapter.)
