4. GAUGES & CIRCUIT BREAKERS
4 - 3 P/N 0082168
Y
Hydraulic Oil Filter
1
2
3

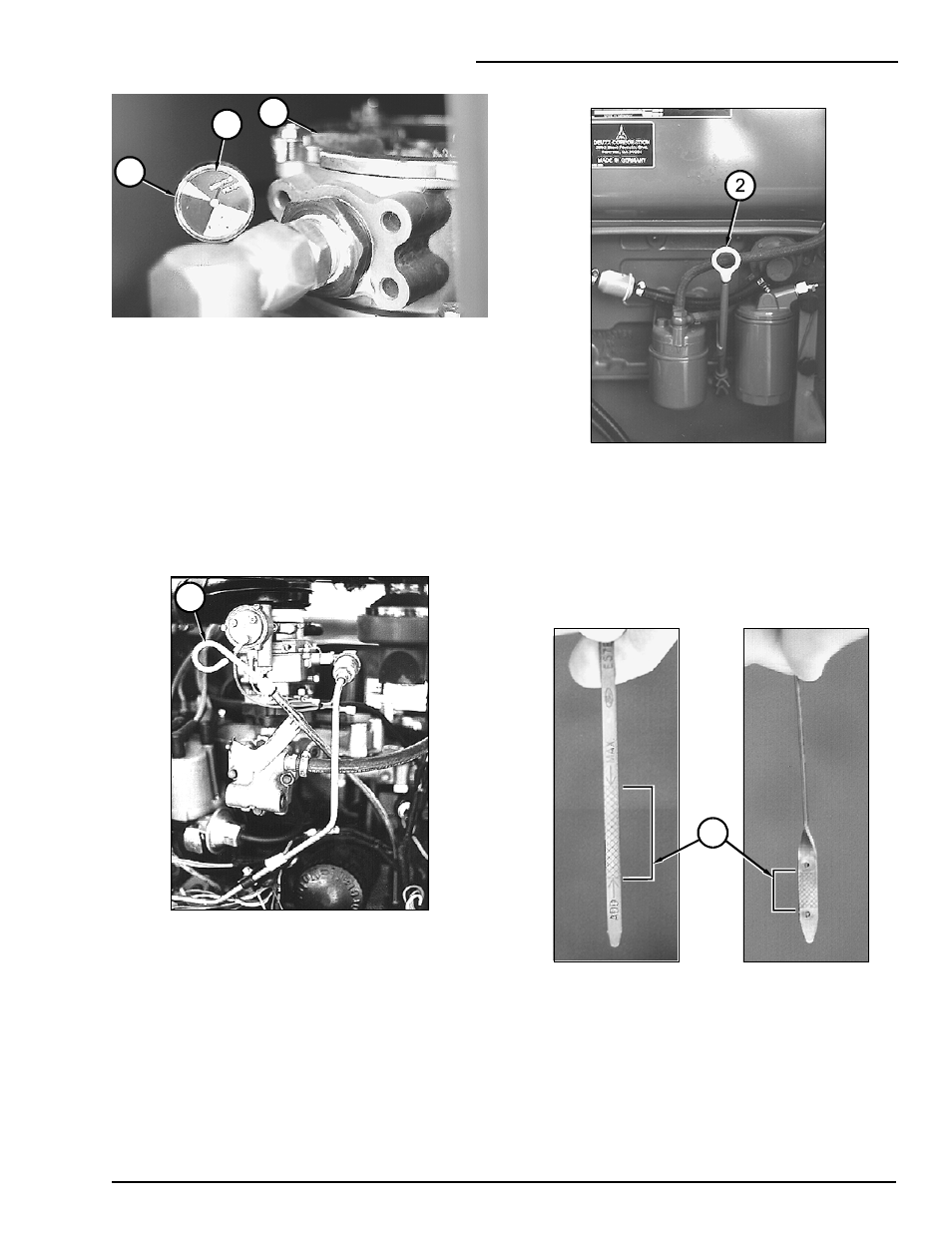

The hydraulic-oil filter gauge (1) is located at the
hydraulic-oil filter (2) input on top of the hydraulic
oil tank. The gauge measures pressure into the
filter. As the filter clogs, the pressure goes up.
The hydraulic oil filter gauge should only be read
by qualified trained maintenance personnel. An
accurate reading requires very special conditions
and should not be attempted by operators.
Y
Engine Oil
FORD
1
DEUTZ
Engine oil level is measured with a dipstick (1)
(2). Oil sump and oil filter capacities given in the
“SPECIFICATIONS” chapter are approximate.
True values may vary from machine to machine
due to slight variations or modifications during
production. The oil dipstick is the only way to
accurately gauge if the engine oil level is correct
FORD DEUTZ
3
Engine oil level should always be in the cross-
hatched area (3) of the dipstick — never above
nor below it.
