7. OPERATION
7 - 8 P/N 0082168
„

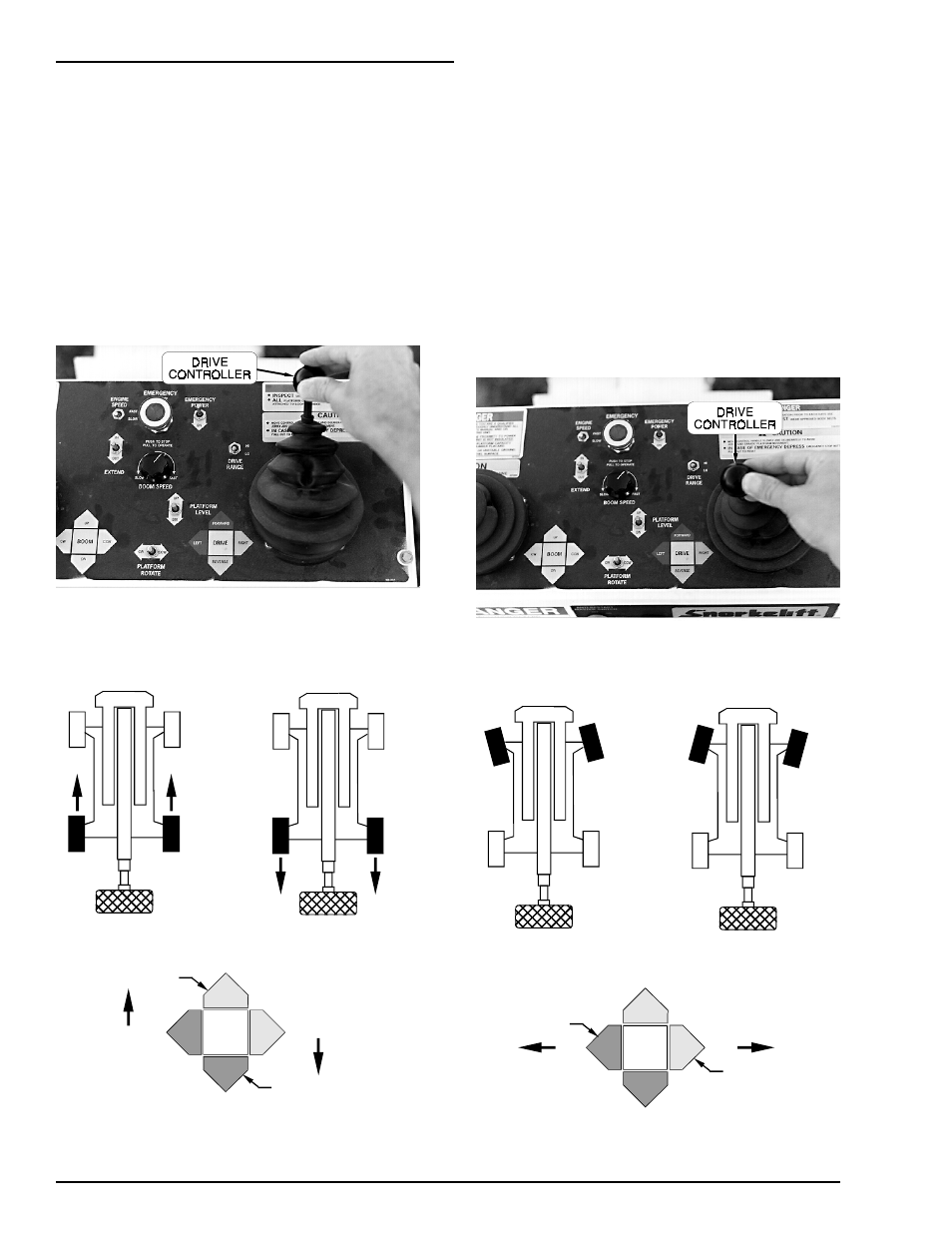

MOVING THE TB 60
There is a blue arrow on the FORWARD end of
the chassis and a yellow arrow on the
REVERSE end of the chassis. Pushing the
DRIVE controller FORWARD causes the
chassis to move in the direction of the blue
arrow on the end of the chassis. Pushing the
DRIVE controller to REVERSE causes the
chassis to move in the direction of the yellow
arrow on the opposite end of the chassis.
NOTE: You must be stepping on the foot
switch for the DRIVE controller to work.
R E V E R S E
D R IV E R IG H T L EF T
FO RWAR D
S T E E R
W H E E L S
D R IV E
W H E E L S
D R IV E
(F O R W A R D )
D R IV E
(R E V E R S E )
D R IV E
(R E V E R S E )
D R IV E
(F O R W A R D )
„
STEERING
There are two blue arrows on the LEFT side of
the chassis and two yellow arrows on the
RIGHT side of the chassis. Pushing the DRIVE
controller to LEFT causes the front wheels to
turn for a left turn. Pushing the DRIVE
controller to RIGHT causes the front wheels to
turn for a right turn.
NOTE: You must be stepping on the foot
switch.
NOTE: When you release the DRIVE
controller the wheels stay where you set
them. The wheels do not return to the
“straight ahead” position.
R EV E R S E
D R IV E R IG H T L E FT
F O RWA R D
S T E E R
W H E E L S
D R IV E
W H E E L S
D R IV E
(L E F T )
D R IV E
(R IG H T )
D R IV E
(R IG H T )
D R IV E
(L E F T )
