AEM 30-6905 Universal Programmable EMS-4 User Manual
Page 47
Page 47 of 279 EMS-4 Install and Tuning Guide_Rev 1.6

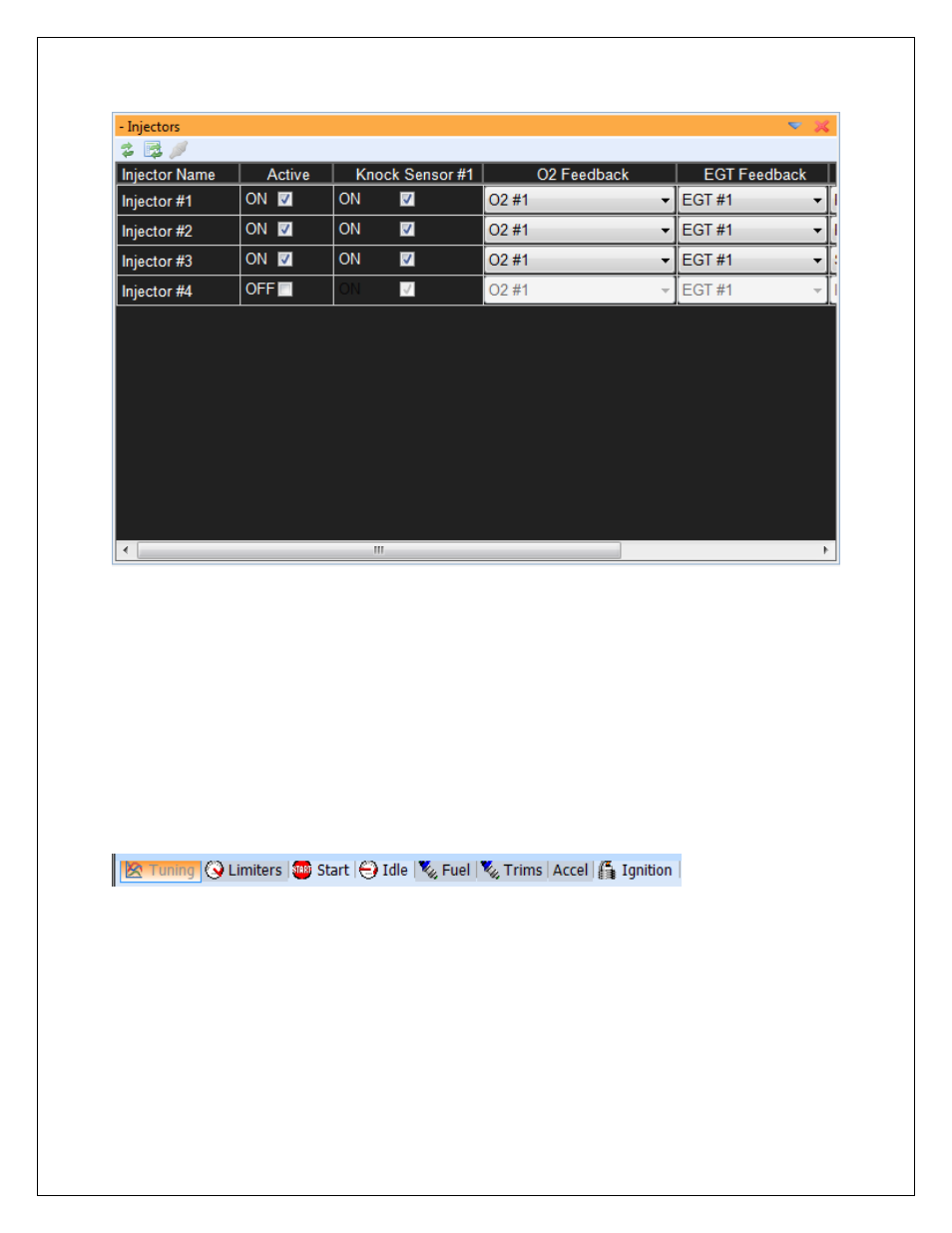

Injectors Display
Auto Arrange Displays
– Automatically organizes the displays within the current tab so that
none are overlapping.
Restore Displays
– Restores the workspace settings back to the previously saved settings.
TABS
AEM Tuner Tabs
The Tabs menu item lists all currently saved tabs screen templates. Right clicking in the tab
area of the menu space shown above will bring up the following menu:
