AEM 30-6905 Universal Programmable EMS-4 User Manual
Page 254
Page 254 of 279 EMS-4 Install and Tuning Guide_Rev 1.6
3-D Maps for Nitrous

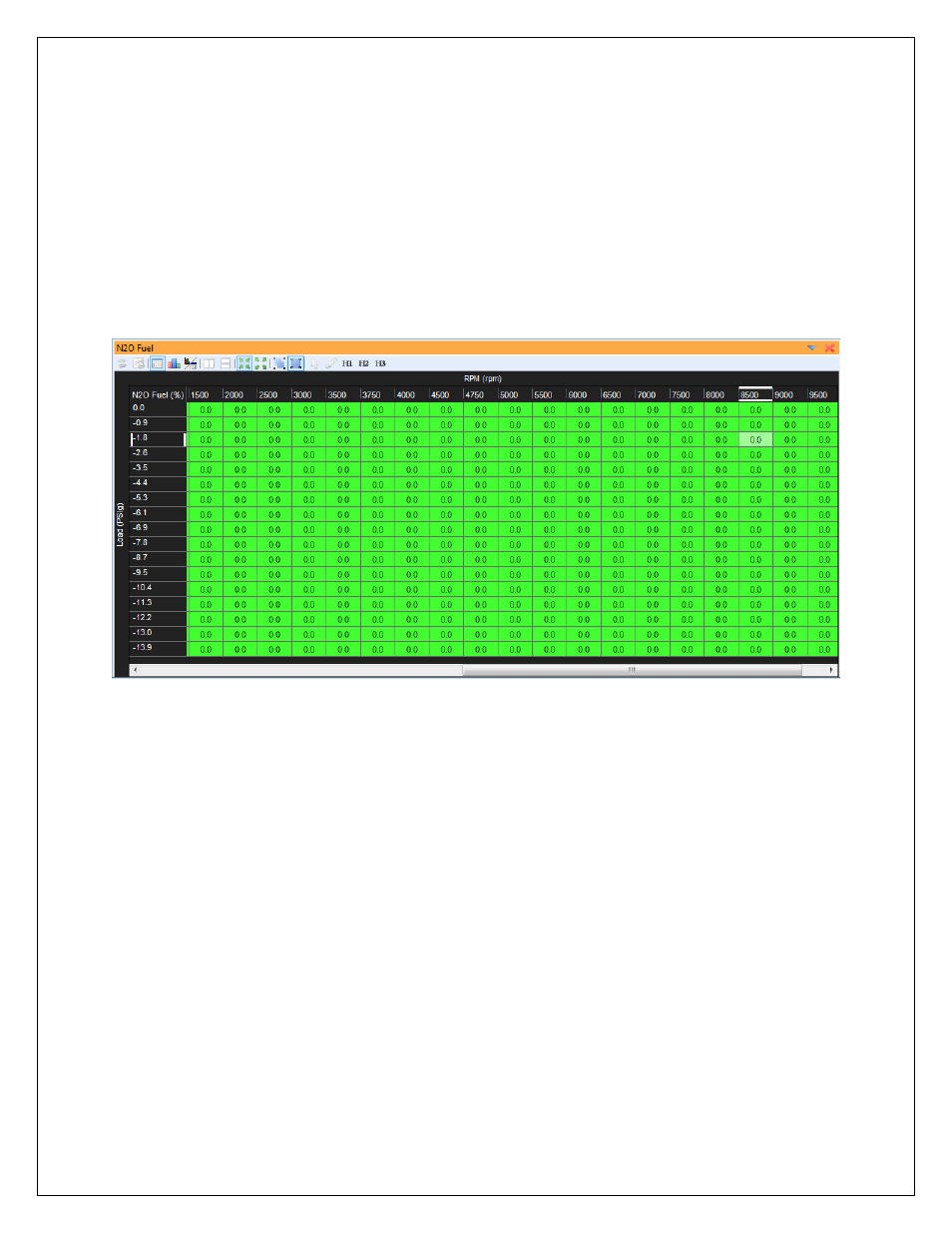

N2O Fuel map
Units: Engine Load vs Engine Speed vs Fuel % Description: This map allows a percentage of
additional fuel to be added or subtracted from the base map when the nitrous options become
active. This map allows adjustment over engine speed and engine load.
N2O Ignition map
Units: Engine Load vs Engine Speed vs Degrees Description: This map allows ignition timing to
be advanced or retarded against the base ignition map when the nitrous control is active. This
map is adjustable over engine speed and engine load.
