AEM 30-6905 Universal Programmable EMS-4 User Manual
Page 127
Page 127 of 279 EMS-4 Install and Tuning Guide_Rev 1.6
Air Temp Analog Inpu(t)
– Usually set to Air Temp Volts. Defines what pin the EMS expects to
see the air temperature input on.
Air Temp Fail Max
– If the air temperature exceeds this value the input will be considered in fail
mode and the EMS will set the value to Air Temp Failsafe.
Air Temp Fail Min - If the air temperature falls below this value the input will be considered in
fail mode and the EMS will set the value to Air Temp Failsafe.
Air Temp Failsafe
– Default failsafe value for the air temperature input.
Air Temperature Setup Wizard
The setup wizard in AEM Tuner contains calibration settings for several different air temperature
sensors.

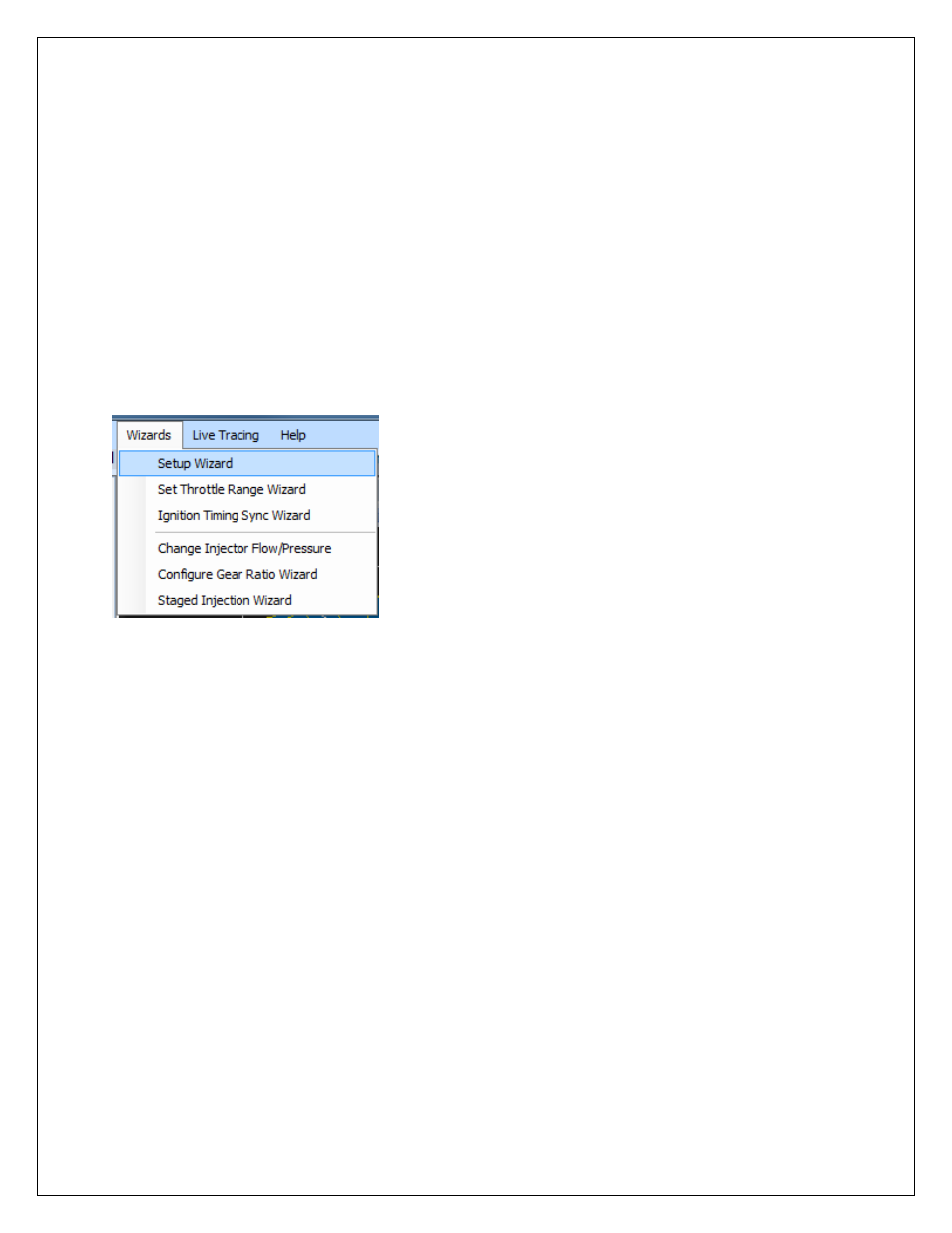

Go to the Wizards menu item and select Setup Wizard.
