Crank fuel & engine start – AEM 30-6905 Universal Programmable EMS-4 User Manual
Page 148
Page 148 of 279 EMS-4 Install and Tuning Guide_Rev 1.6
Crank Fuel & Engine Start

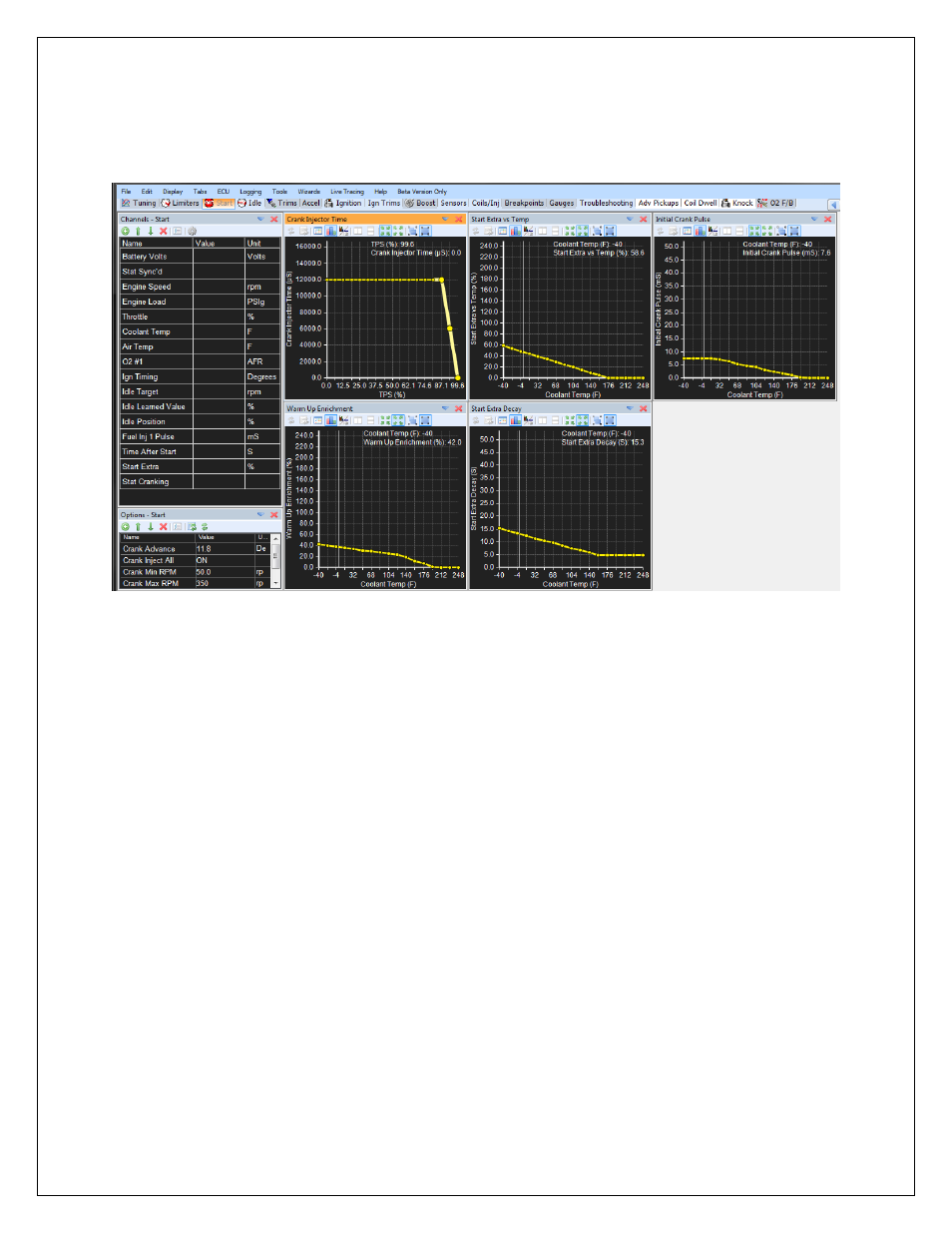

Typical Start Setup Tab
Crank setup options
Crank Advance
– Desired ignition timing during cranking conditions
Crank Inject All
– When selected, all injector outputs will fire at the same time and inject fuel
using the pulsewidth values defined in the Initial Crank Pulse table.
Crank Min RPM
– The minimum engine speed before fuel and spark events are allowed.
Typically set to 50 RPM.
Crank Max RPM
– The maximum engine speed for cranking fuel and spark values. Varies but
usually set to 300
– 500 RPM.
