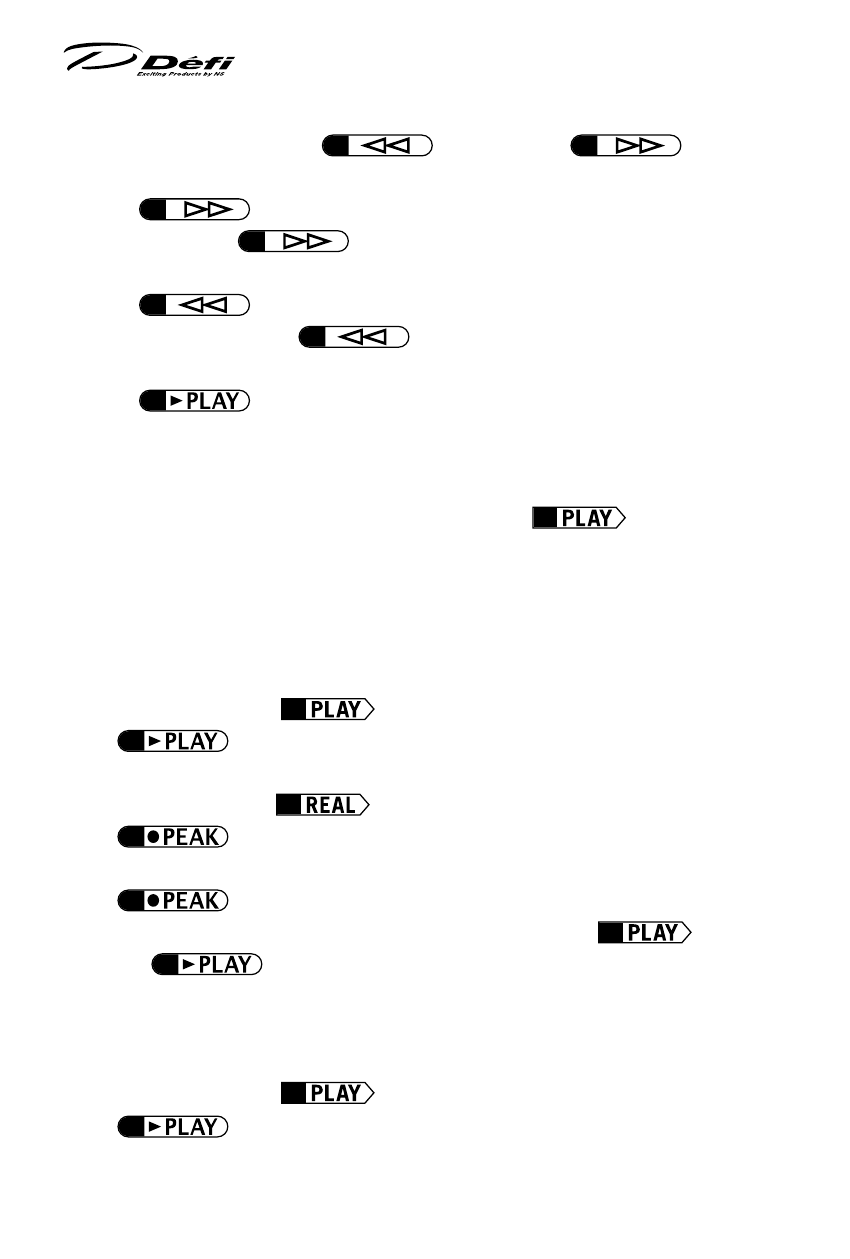

7 -11-1. Operation during playback

・Playback is paused if the

M

button or the

R

button is

pressed during playback.

・If the

R

button is pressed during pause, playback goes frame

by frame. If the

R

button is pressed long during pause, it fast

forwards playback.

・If the

M

button is pressed during pause, playback is rewound

frame by frame. If the

M

button is pressed long during pause,

playback is rewound.

・If the

L

button is pressed during pause, playback restarts.

playback ⇔ pause ⇔ single frame forward/rewind, fast forward/rewind

7 -12. Play Peak mode (slide switch position:

M

)

The peak values recorded while recording are displayed during Playback
mode. The maximum and minimum values are displayed in order as for oil
pressure and fuel pressure.

IF NEITHER OIL PRESSURE NOR FUEL PRESSURE SENSOR IS CONNECTED:
1. Set the slide switch to

M

.

2. If the

L

button is pressed, the gauge shifts to Playback mode and

replays the data. The LED is blinking during Playback mode.

3. Set the slide switch to

U

during playback (or pause).

4. If the

M

button is pressed during playback (or pause), the gauge

displays the peak value of recorded data.

5. If the

M

button is pressed again, the gauge returns to playback of

the data. To return to Real mode, set the slide switch to

M

and press

long the

L

button.

Data playback is ongoing during Play Peak mode.

IF EITHER OIL PRESSURE OR FUEL PRESSURE SENSOR IS CONNECTED:
1. Set the slide switch to

M

.

2. If the

L

button is pressed, the gauge shifts to Playback mode and

replays the data. The LED is blinking during Playback mode.
