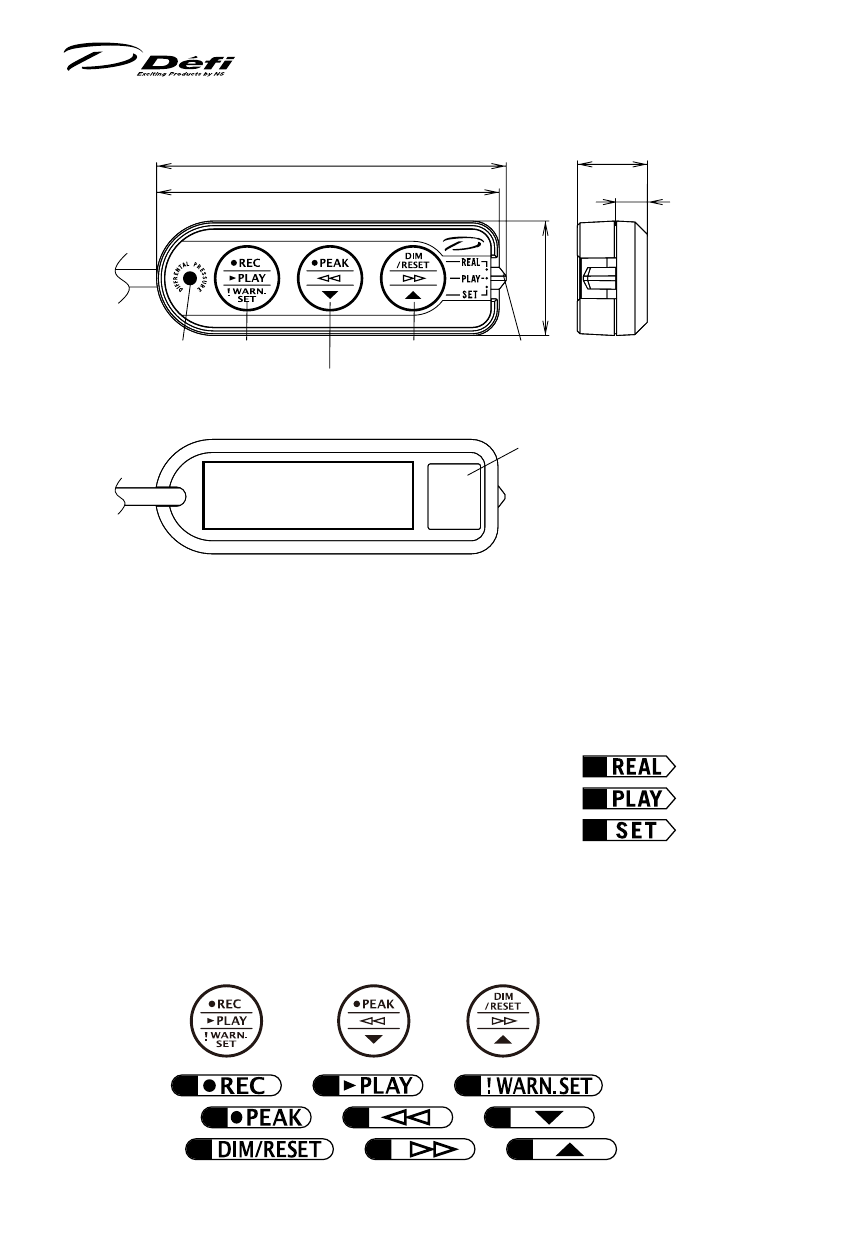

5 -3. Part Names & Dimensions of Switch unit in mm(inches)

Buttons and slide switch

Operation of gauges is handled by 3 buttons and 1 slide switch. By sliding the
switch position, the functions of buttons change.

Slide switch

In this manual, positions of the slide switch are illustrated as follows:
REAL(upper): for Real mode operation

U

PLAY(middle): for operation to replay recorded data

M

SET(lower): for operation to set up

L

Buttons

Each button has three marks(upper, middle, and lower position) in accordance
with positions of slide switch. In this manual, each button is illustrated as fol-
lows:

Left button:

L

or

L

or

L

from the top

Middle button:

M

or

M

or

M

from the top

Right button:

R

or

R

or

R

from the top

Left

Middle

Right

80(3.15")

78.4(3.09")

26.2(1.03")

16(0.63")

Differential pres-

sure LED(blue)

Backside of switch unit

Slide switch

(REAL/PLAY/SET from the top)

Left button

Middle button

Lot No. label

Do not peel the labels

sticked on the product and

warranty card.

Right button

Applying position of
double-sided tape

7(0.28")
