Defi ADVANCE Control Unit (DF07703 Manufactured in and before January, 2012) User Manual

Page 18

13. Disconnect the meter wire from the gauge, and attach the gauge by using

mounting bracket. Confirm it is installed firmly, then connect the meter wire
again.
⇒ Refer to each gauge operation manual

14. Connect the switch unit to the control unit and fix the switch unit with

double sided tape. Before attaching it , make sure the surface is clean.
⇒ Refer to 5 -3. Part Names & Dimensions of Switch unit in mm(inches).

15. Set 2 dip switches of the control unit.

●

Dip switch 1: Setting the buzzer sound ON/OFF.

●

Dip switch 2: Select the opening/ending mode from A or B when the

ignition is on/off.
⇒ Refer to 5 -2. Part Names of Control Unit in mm(inches), 7 -6-2. Set the
warning buzzer ON/OFF, and 7 -2-1. Change of Opening mode / Ending mode.

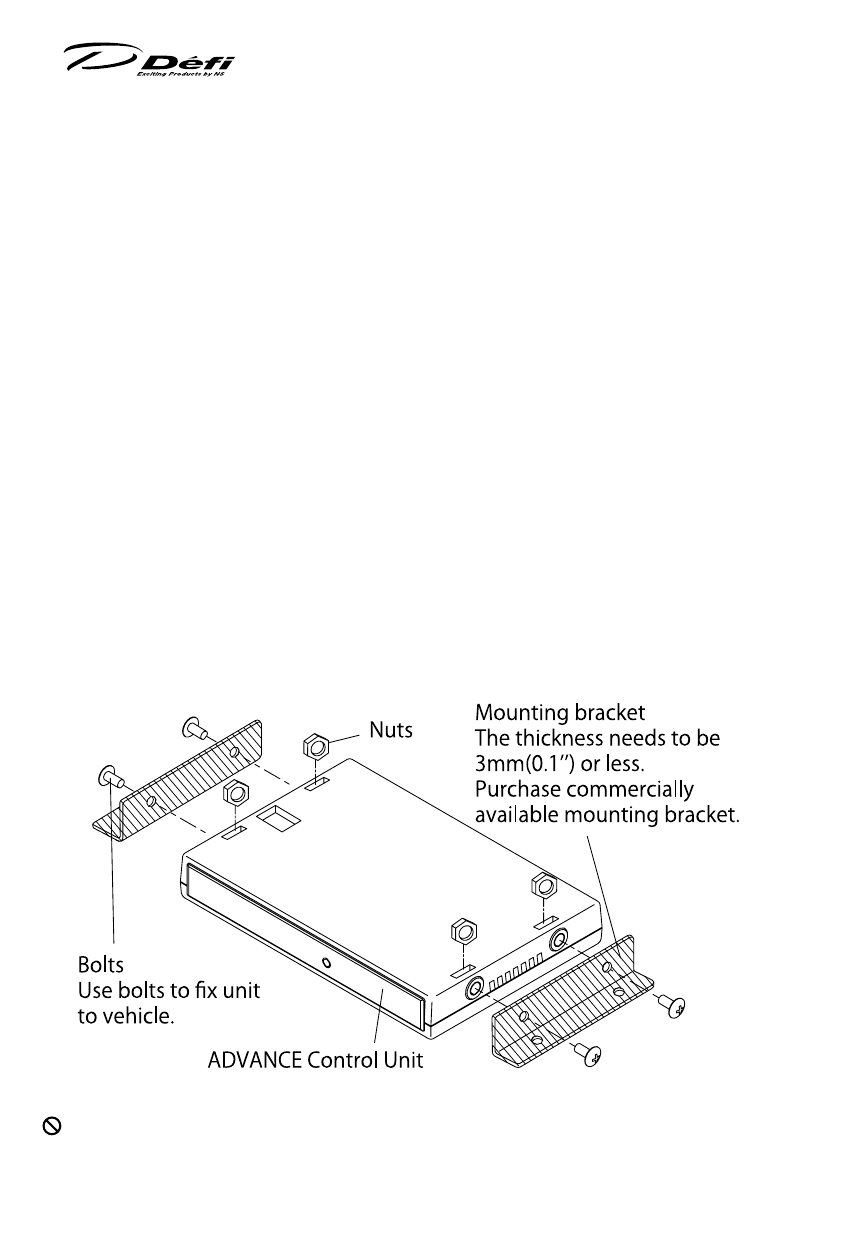

16. After setting is done, fix the control unit with attached nuts and bolts and

commercial mounting bracket.

Confirmation

Gauges, including this product, are not waterproof. Please do not install

gauges near the vehicle floor or in wet areas.
