Defi ADVANCE Control Unit (DF07703 Manufactured in and before January, 2012) User Manual

Page 26

background image

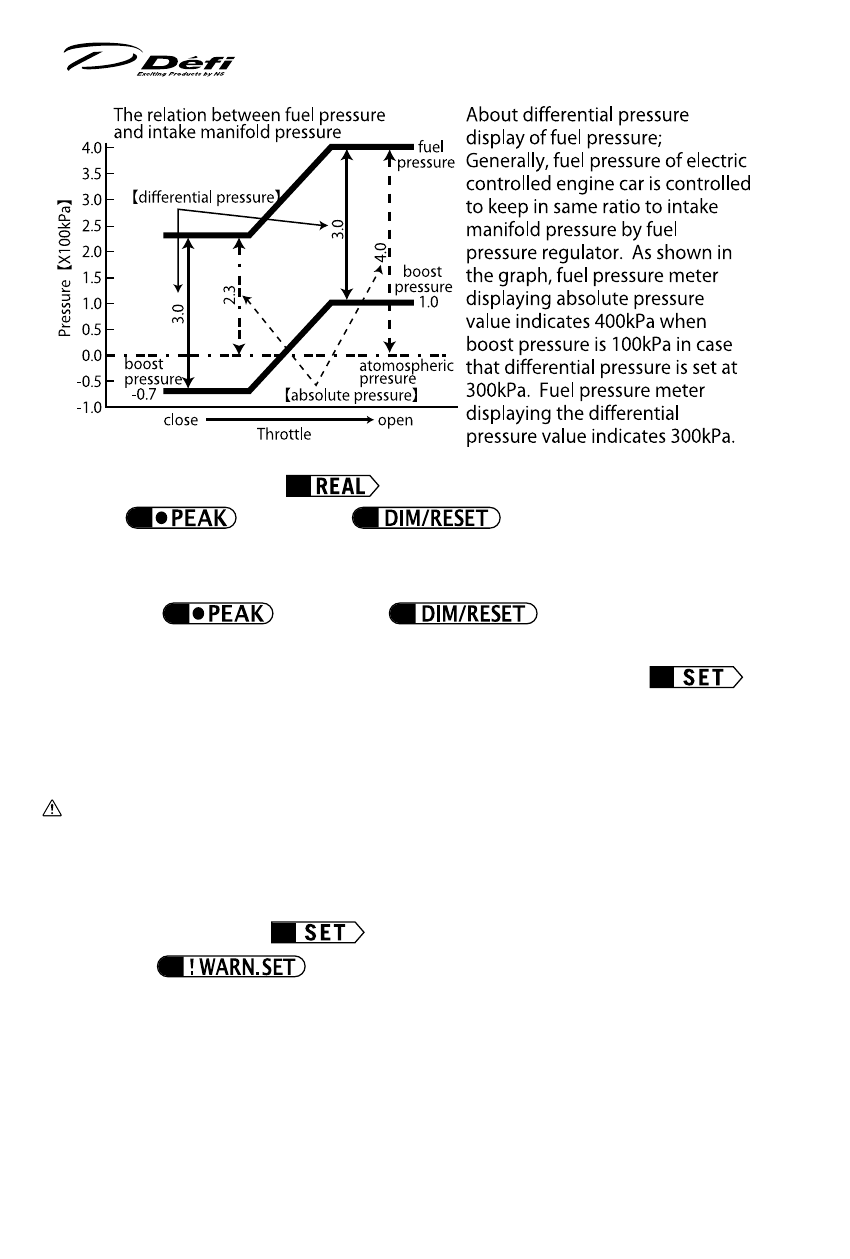

1. Set the slide switch to

U

.

2. If the

M

button and

R

button are pressed at the

same time, the fuel pressure gauge displays the differential pressure and the
indicator of DIFFERENTIAL PRESSURE on the switch unit is lighted up. To can-
cel, press

M

button and

R

button together again.

7 -4. Setting number of cylinders mode (slide switch position :

L

)

When the tachometer is installed, please set the number of cylinders.
factory default setting: 4 cylinder

If ZDs are installed as well, settings for tachometer need to be done in Sys-

tem Setup Mode of ZD. The settings of ZD are applied to other tachometers
connected to the ADVANCE System. Refer to ZD manual for setting.

1.Set the slide switch to

L

2.When the

L

button is pressed long, the gauge shifts to Setting

number of cylinders mode, and warning and peak LEDs on the gauge blink
alternately.
If ZDs are installed, the system moves into System Setup Mode of ZD not
tachometer setting mode. LEDs on the gauge doesn't blink. When the
tachometer is not installed, the system does not shift to Setting number of
cylinders mode.

64
