6 Installation

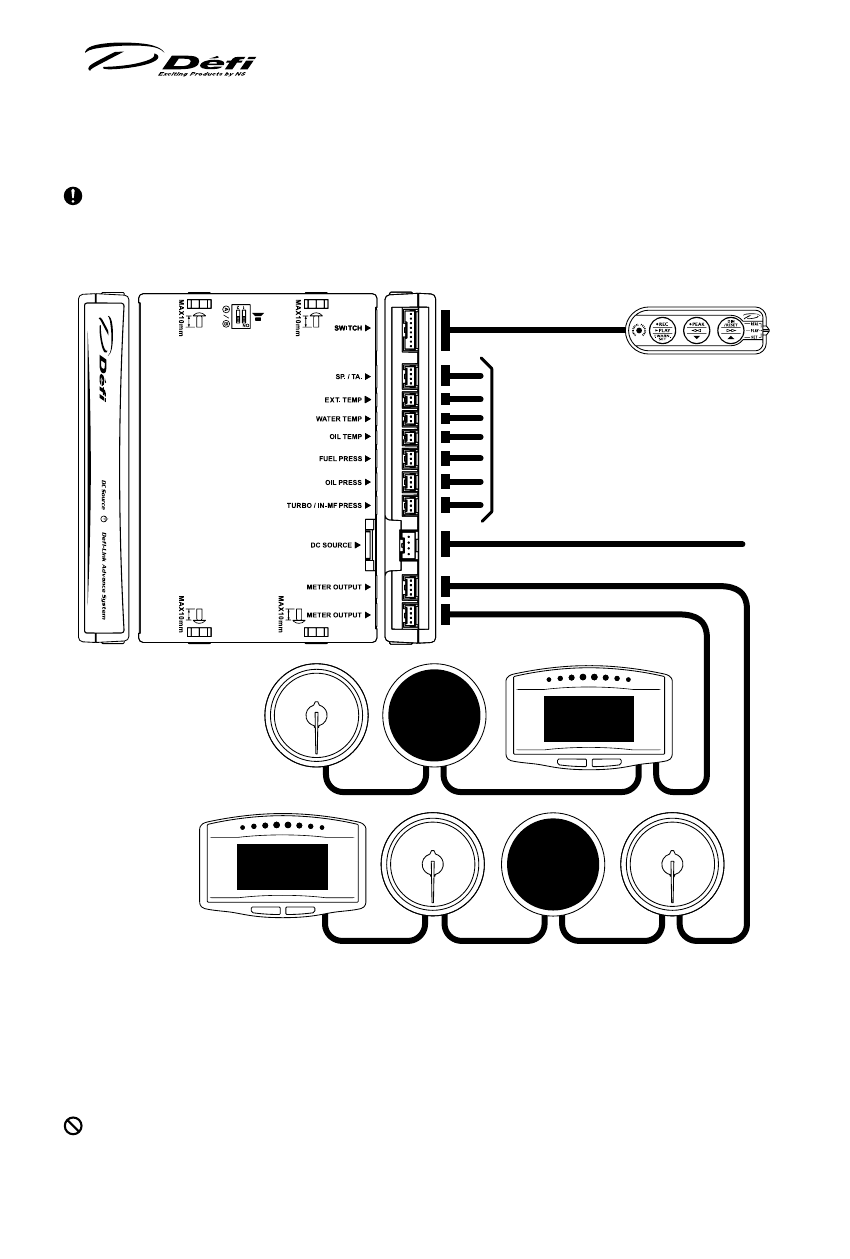

6 -1. Installation diagram

Confirmation

Please refer to how to install gauges, displays, and sensors of each manual

as well as this manual.

The meter wire can be connected to both two connectors of METER OUTPUT.
Up to 7 gauges and displays in all can be connected to one control unit. (Ex. If
7 gauges are connected to one line, none can be connected to the other line.
If three gauges are connected to one line, up to 4 gauges can be connected to
the other line.)

Do not connect more than one gauge of the same variety. (Ex. You can NOT

connect 2 turbo gauges together.) However, several ZDs can be connected.

Sensor Wires

 →Sensors

  →Connect to vehicle

Power source wire

→Connect to vehicle

Switch unit

Meter wire

Meter wire

CR

ZD

CR

CR

BF

ZD

ADVANCE

Control Unit

BF

53
