Installing and Operating BayStack ARN Routers
1-22 114200 Rev. A
5. Attach the 25-pin receptacle connector on the combined cable and
adapter to the console host connector
(Figure 1-15) .

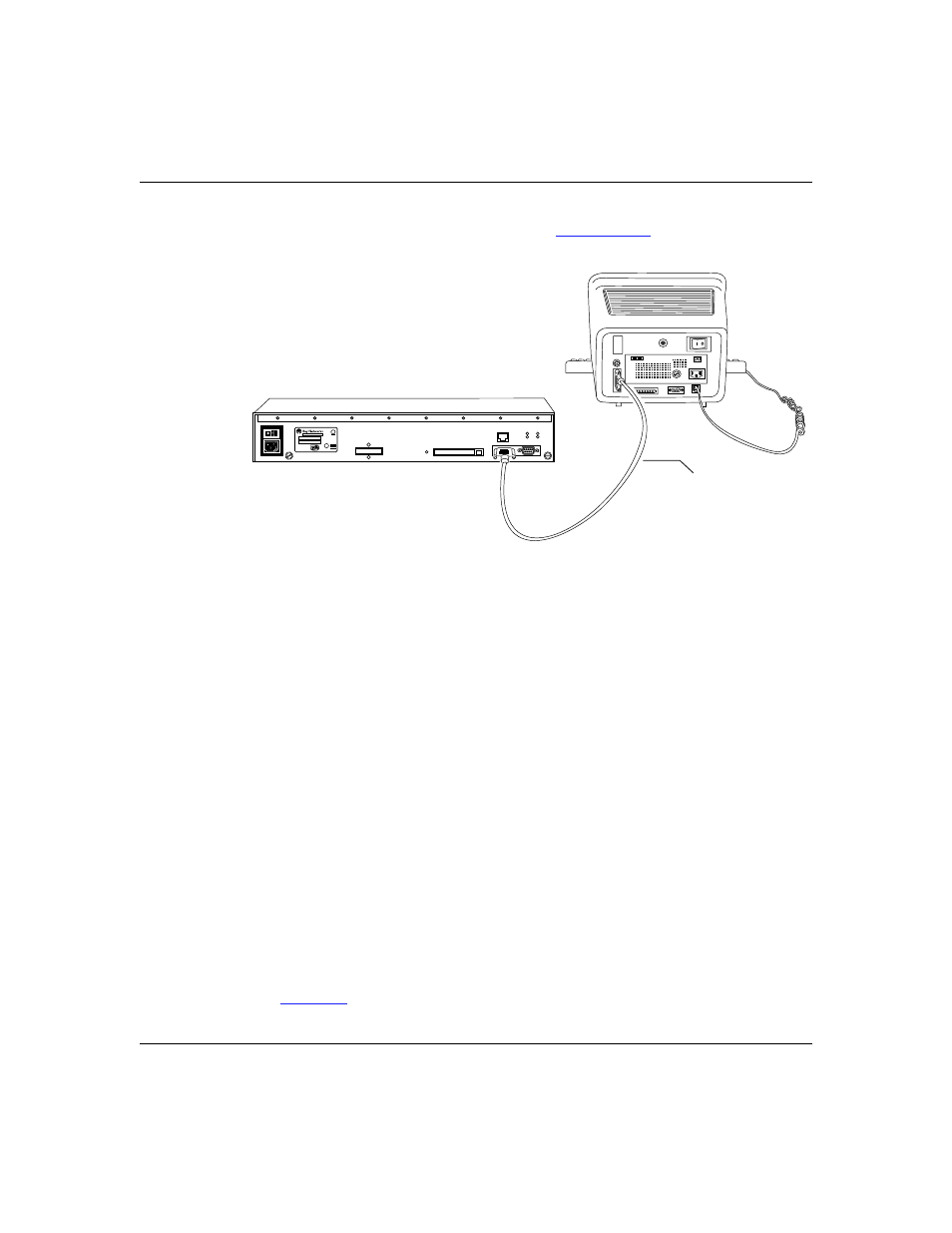

Figure 1-15. Connecting a Terminal Console to an ARN
6. Insert the 9-pin receptacle end of the console cable into the ARN console
port connector.
The console is now connected to the ARN.
Connecting a PC Console
You need both pieces in the ARN console/modem cable kit to connect a PC:
• Order No. 110307 serial console/modem cable (with 9-pin receptacle to
25-pin plug connectors)
• Order No. 110308 null modem crossover adapter (with two 25-pin receptacle
connectors)
You also need another standard AT serial cable with a 25-pin plug connector.
Once you have the correct equipment, complete the following steps:
1. Power on and configure the PC console, using the parameters in
Table 1-3 and instructions in the console user manual.
COMM
20 mA PR KB
Console cable plus
null modem adapter
ARN0058A
Redundant Power
Modem
UL
UL
100-240~ 1.2A 50-60Hz
