Installing and Operating BayStack ARN Routers
1-20 114200 Rev. A
To connect to a V.34 modem interface:
1. Insert the RJ-11 telephone cable into the V.34 modem interface labeled
Telco (
Figure 1-13 ).

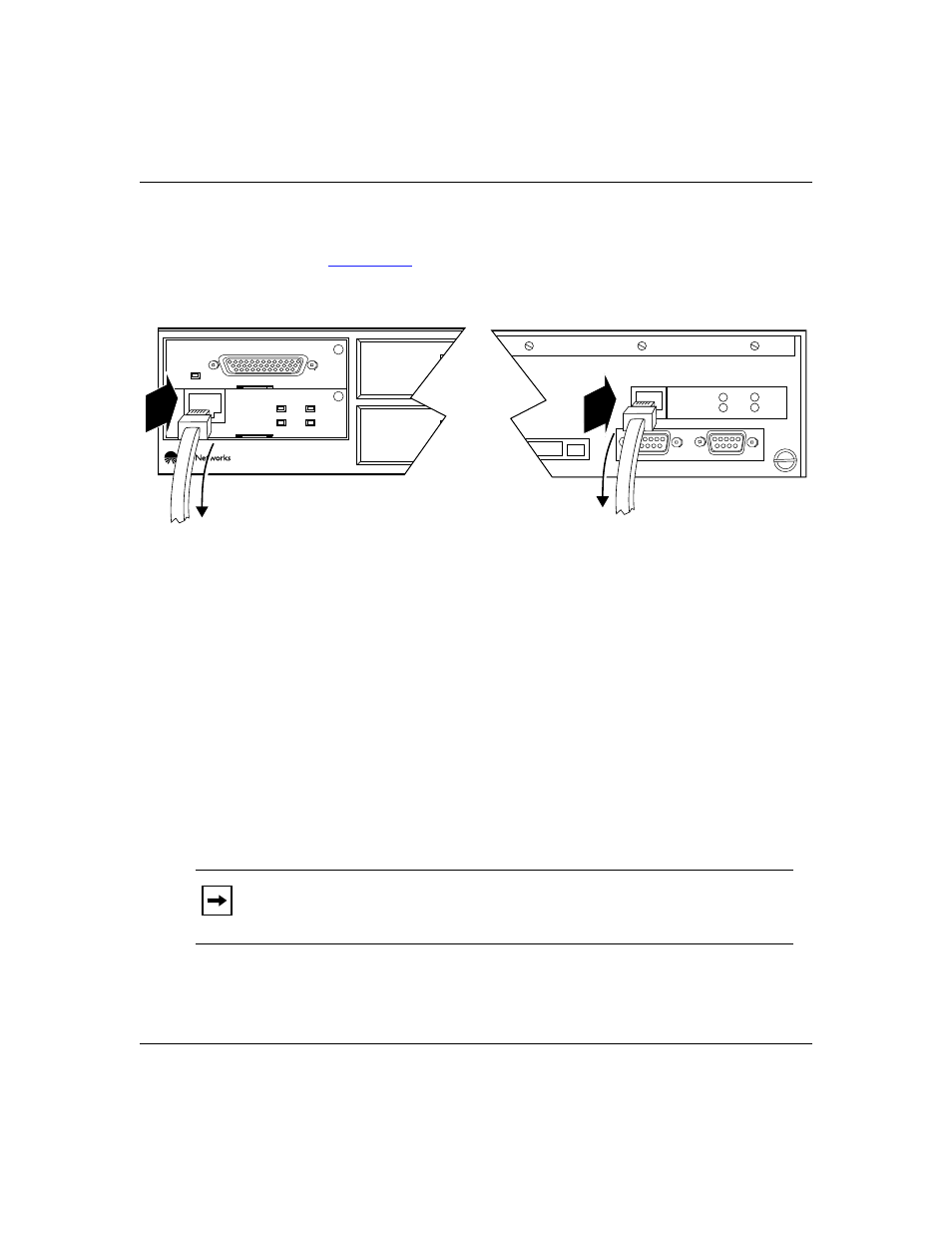

Figure 1-13. Connecting an RJ-11Cable
2. Connect the other end of the cable to an analog telephone line (for
example, the telephone wall receptacle).
Connecting a Management Console
Use t he back-panel console port to connect an ASCII-based terminal or a personal
computer terminal emulator to the ARN.
Using a local terminal, you can monitor the results of startup diagnostics and set
the boot configuration. Using an attached modem, you can allow remote dial-in
access to diagnostics.
Note: To use the Netboot, Directed Netboot, or Local Boot software
configuration options, you must connect a console the first time you power up
the ARN, as described in Chapter 3.
Front-panel V.34 Modem Interface
ARN0071A
COM
Telco
Tx
Rx
RLSD
DTR
RLSD
Serial
V.34 Modem
1
2
Tx
Rx
Cl
Tx
Rx
Cl
1
1
To
RJ-11 telephone
receptacle
ARN0072A
Back-panel V.34 Modem Interface
Console Modem
Modem
Tx
Rx
RLSD
DTR
To
RJ-11 telephone
receptacle
