CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-8
NOTE:
When re-assembling the pressure plate ASSY, ensure that the paper indicator arm is under the
pressure plate.
!
CAUTION:
When unhooking the catches to remove the pressure plate, do not bend the pressure plate,
gently ease the plastic cover. If the pressure plate is deformed, paper feeding problems may
occur.

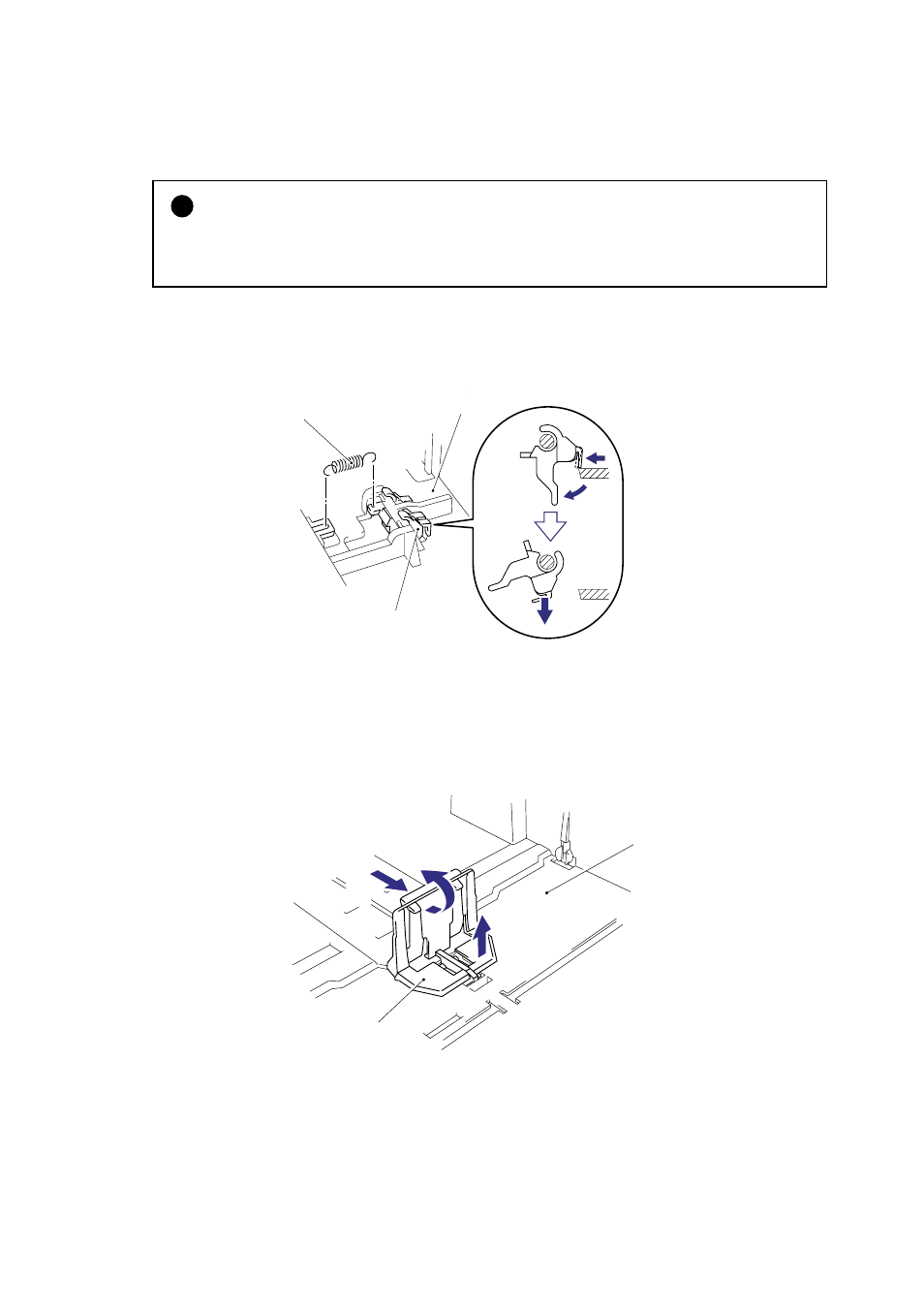

(14) Remove the release lever extension spring.
(15) Unhook the two catches and rotate the lock lever to remove it downwards from the
cassette.
Fig. 4-11
NOTE:
When re-assembling the lock lever, insert it upwards from underneath the cassette and rotate it
until the two catches lock into place..
(16) Slide the rear paper guide fully forwards in the cassette and remove it from the slot.
Fig. 4-12
Paper cassette
Rear paper guide
Release lever
extension spring
Paper cassette
Lock lever
➀
➁
➂
