CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY

4-4

3.3

Paper Cassette

(1) Close the front cover, pull out the paper cassette from the printer and remove the paper

from the cassette.

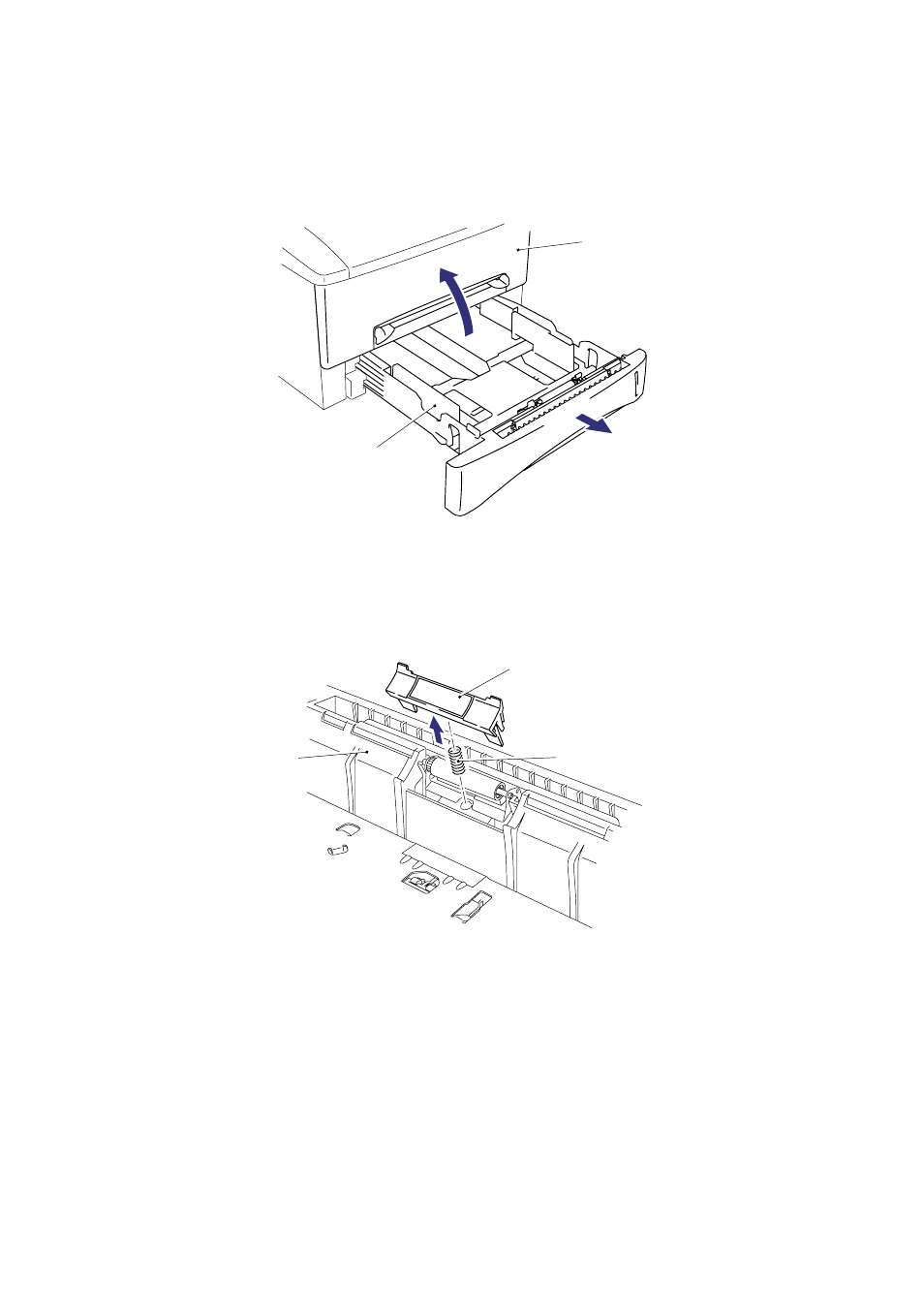

Fig. 4-3

(2) Remove the separation pad holder ASSY by pulling it upwards, then remove the

separation pad spring from the paper cassette.

Fig. 4-4

Paper cassette

Separation pad spring

Separation pad holder

Front cover
