CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY

4-3

3. DISASSEMBLY

PROCEDURE

3.1

AC Cord

(1) Disconnect the AC cord from the printer AC inlet.

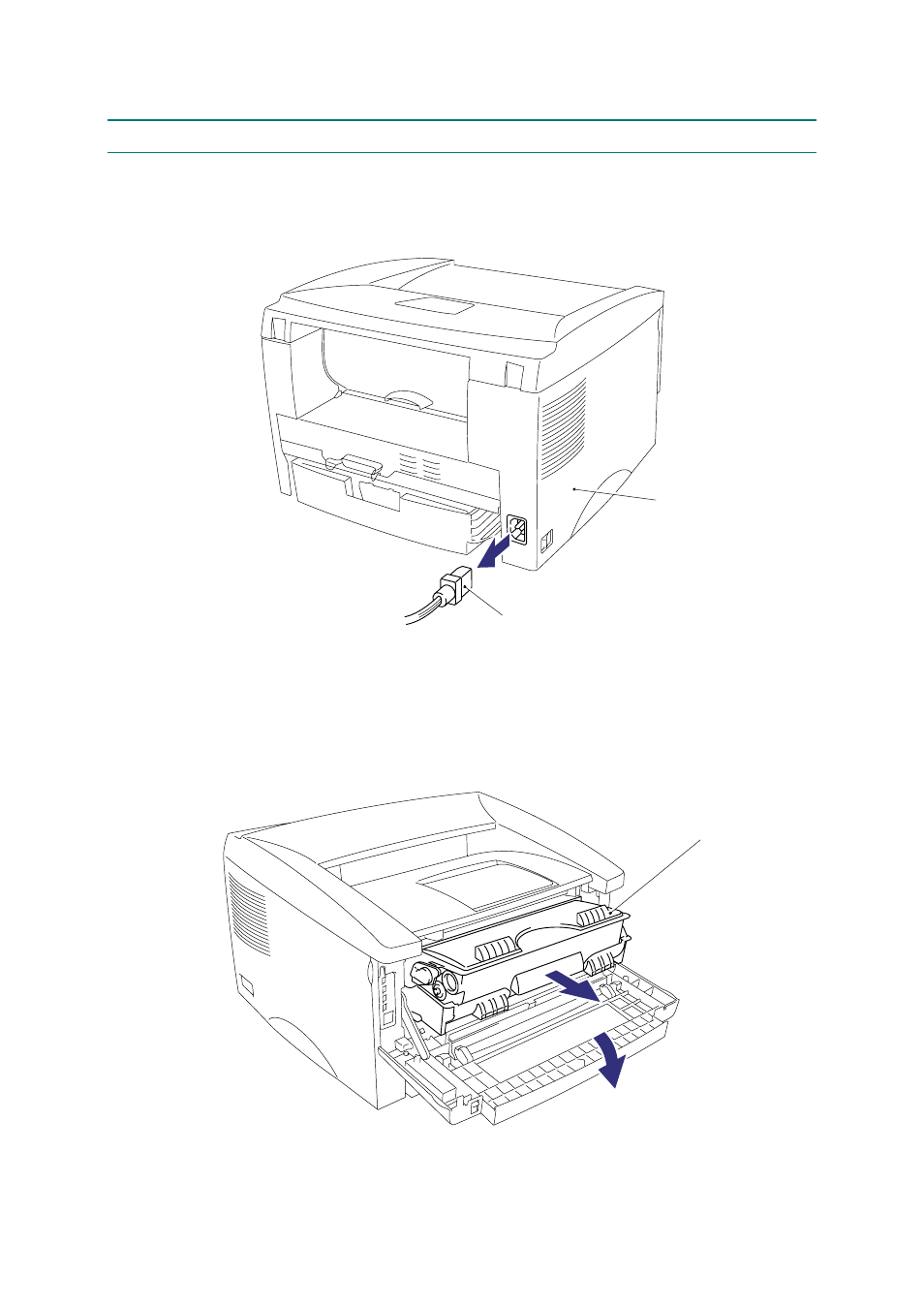

Fig. 4-1

3.2

Drum Unit

(1) Open the front cover and remove the drum unit from the printer.

Fig. 4-2

Printer

AC cord

Drum unit
