CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-28
!

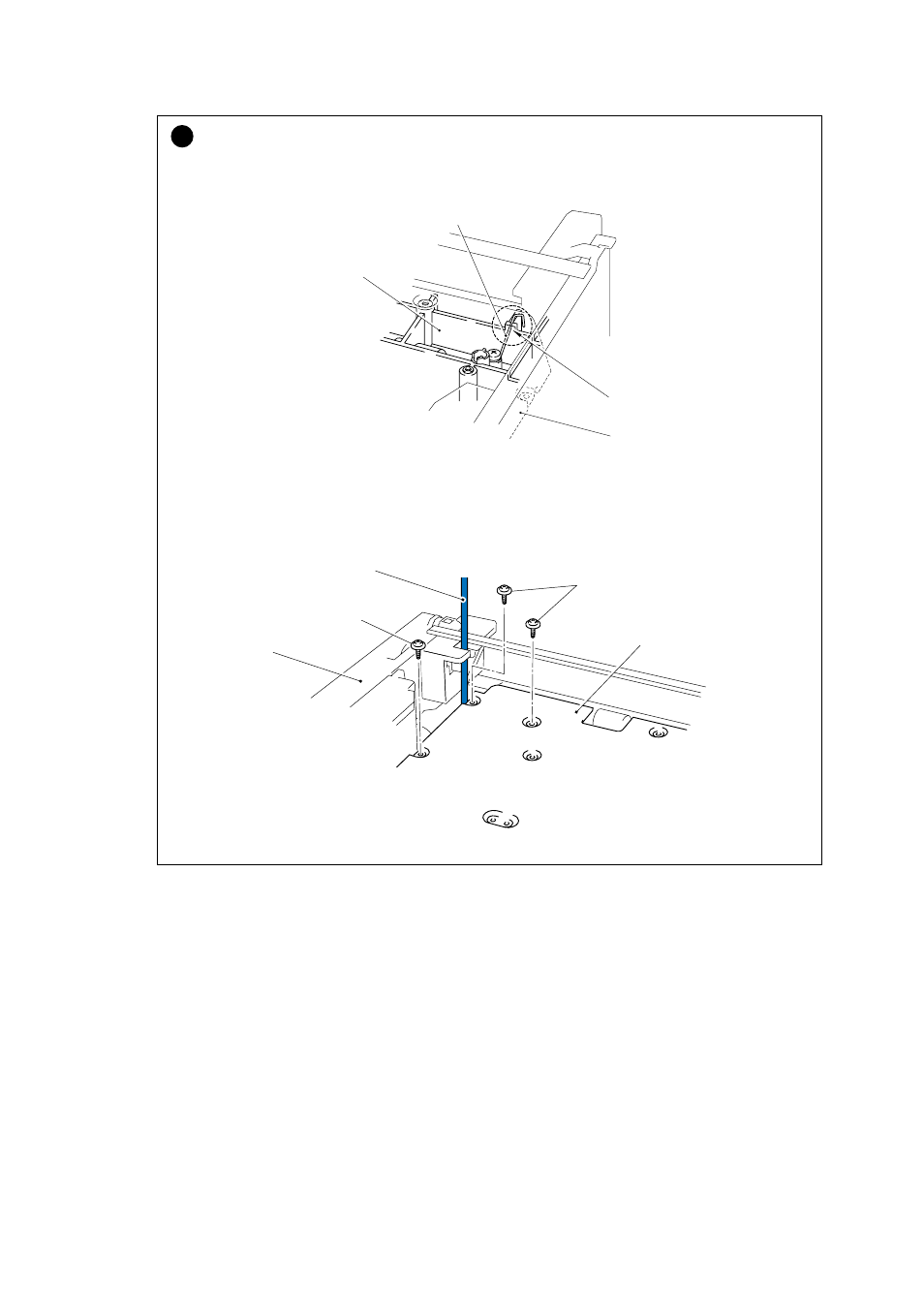

CAUTION:
•
When re-assembling the base plate, be sure that the ground wire connected to the paper
feed roller ASSY is fixed into the slit on the plastic chute referring to the figure below;
Fig. 4-49
•
When securing the screws to assemble the base plate, ensure you use the jig shaft
referring to the figure below so that the engine PCB is assembled correctly;
Fig. 4-50
Taptite, bind M4x10
Taptite, bind M4x10
Main frame
Base plate
Jig shaft
(slit)
Ground wire
Plastic chute
Main frame
