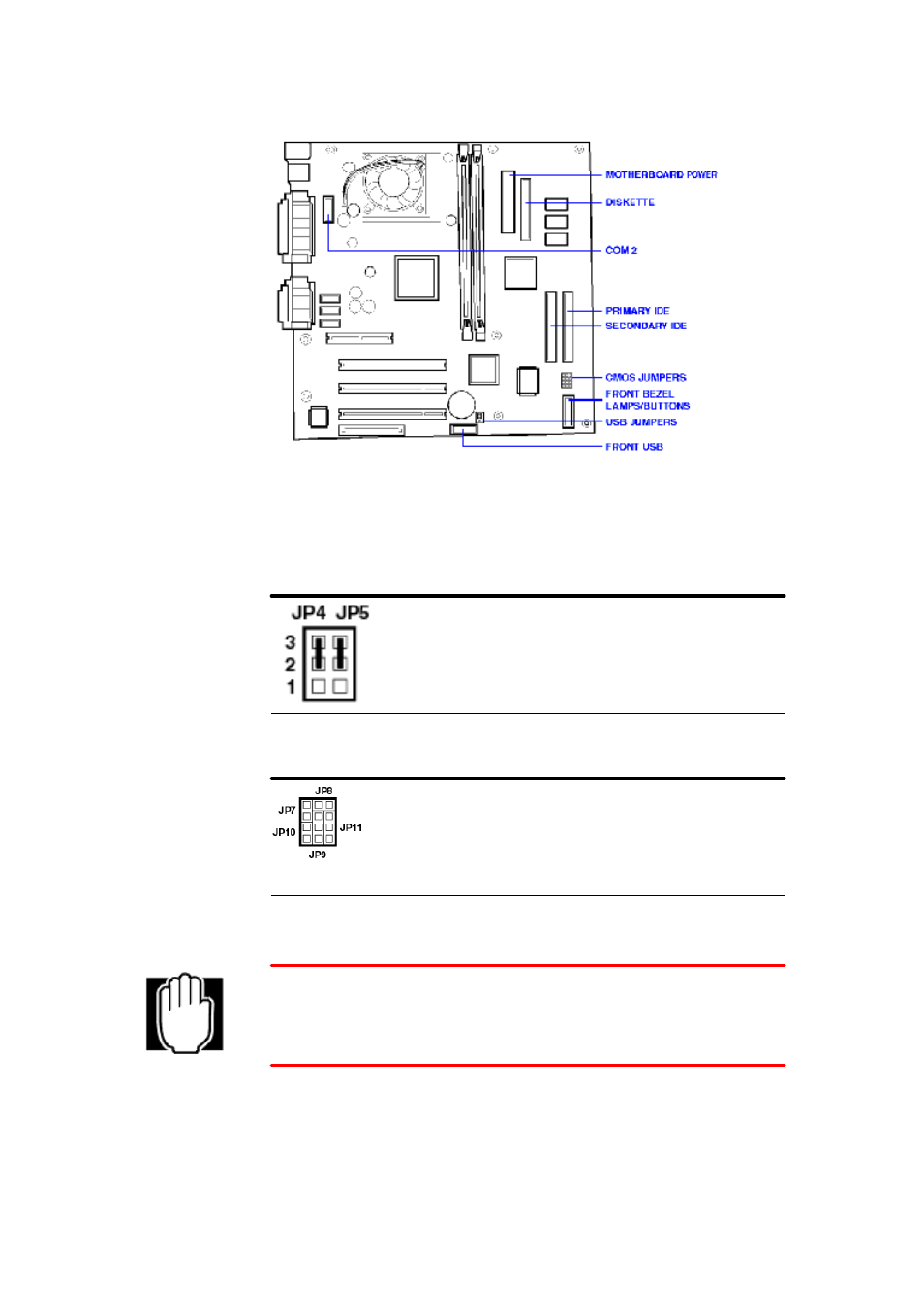

Locating the
motherboard
connectors and
jumpers
The motherboard power connector supplies the necessary current from the power supply.
The Secondary IDE, Primary IDE and Diskette connectors are the data cable connections for the
respective devices.
A front USB can be enabled. Please use the USB jumpers pointed out in the previous graphic.
The USB jumpers look like this:
USB
JP4
JP5 FRONT
1–2
1–2 BACK
2–3
2–3
CMOS setting jumpers can be used to lock, unlock or reset password and others. The CMOS
jumpers look like this:
JP7
JP8
JP9
JP10
JP11
OFF = LOCK
ON = UNLOCK
NO REBOOT
CLEAR PWD/CMOS
SAFE MODE
CHASSIS INTRUSION
Replacing the 3100 Series CPU
The CPU is on the motherboard.
Work on a flat, static- free surface. Wear an antistatic wrist strap or touch the computer's metal
chassis. Do not place the CPU on the antistatic bag or slide it over any surface.
For the Celeron processor:
