Toshiba Equium 3100 M User Manual
Page 26

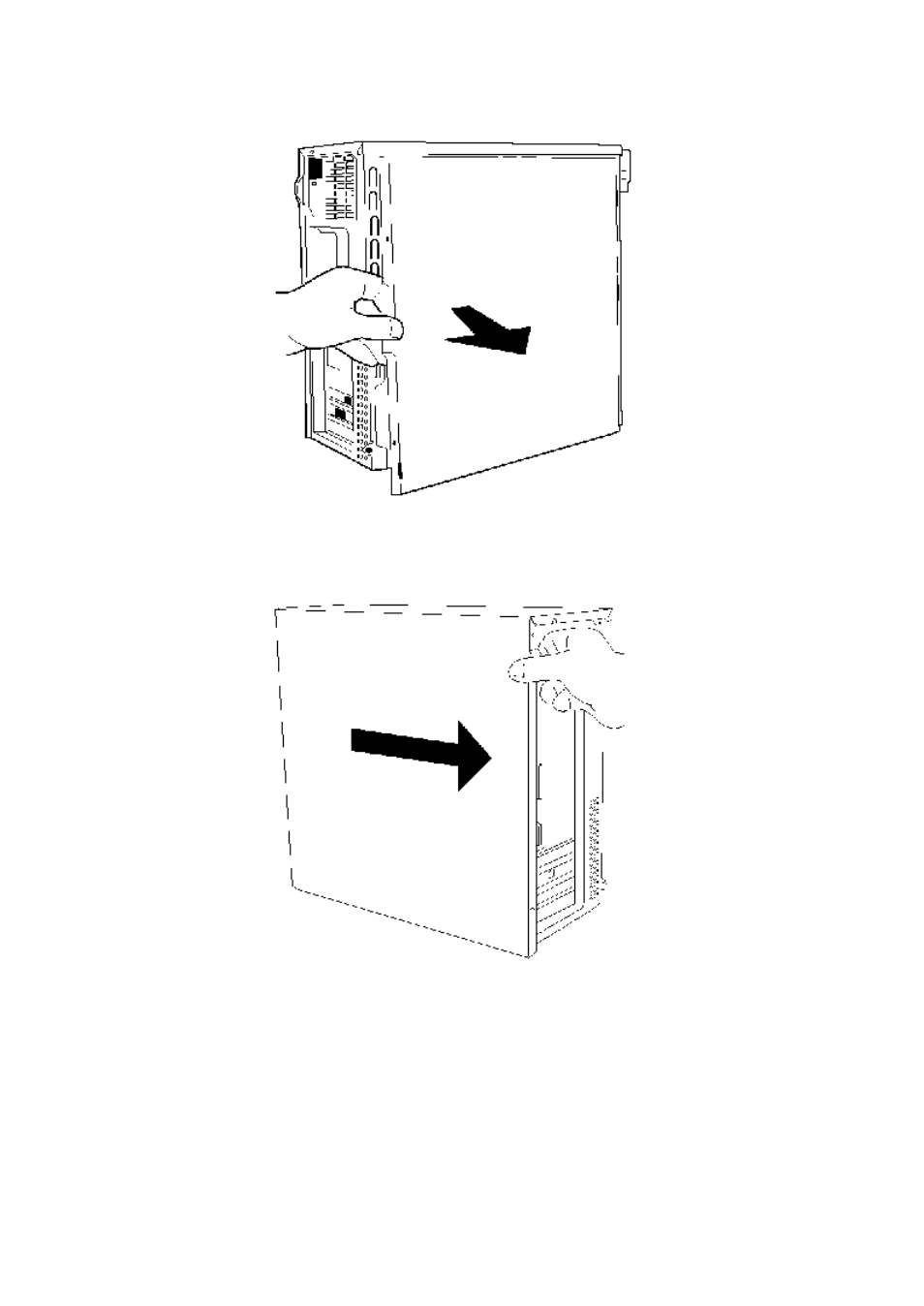

Lifting the panel
off
For more extensive servicing, you need to remove the right panel. To remove the other panel:
1.
Remove the three screws at the rear of the case that attach the remaining panel.
2.
Pull the case toward you about an inch, then lift the case up and off the machine.
Pulling the panel
back
