14 DS692DB2
CDB8422
2.3.3 CS8422 Interrupt Controls and Status Tab
The “CS8422 Interrupt Controls and Status” tab provides high-level control of the CS8422’s interrupt pin
register settings. A description of each control group is outlined below. See the CS8422 data sheet for
complete register descriptions.
INT Pin Control - Controls the CS8422’s INT pin polarity and modes.
Interrupt Error Unmasking - Controls the CS8422’s interrupt error unmasking to affect the INT pin.
Interrupt Status - Shows the status of CS8422’s unmasked interrupt errors.
Update CS8422 - Reads all registers in the CS8422 and reflects the current values in the GUI.

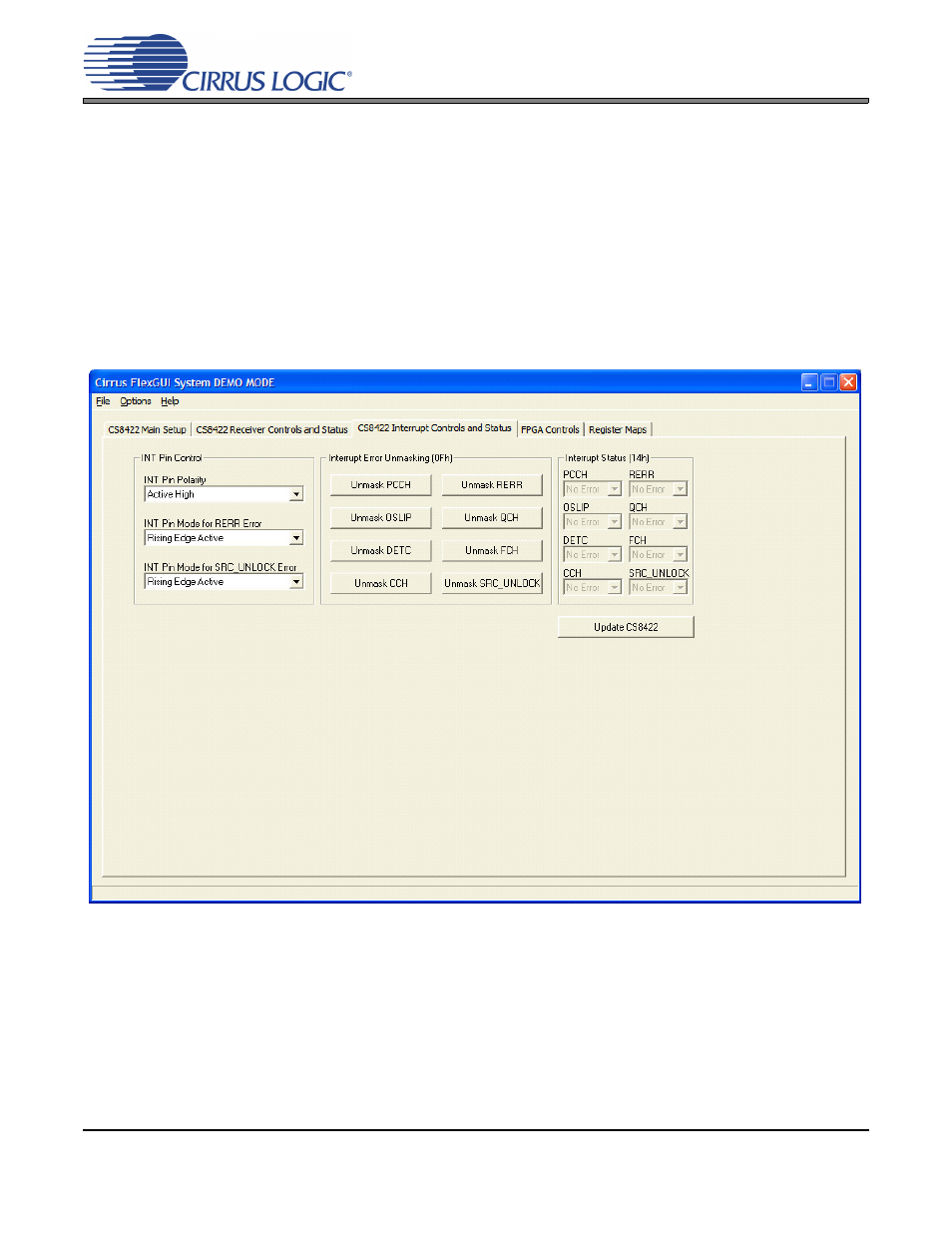

Figure 8. CS8422 Interrupt Controls and Status Tab
