DS692DB2 13
CDB8422
2.3.2 CS8422 Receiver Controls and Status Tab
The “CS8422 Receiver Controls and Status” tab provides high-level control of the CS8422’s S/PDIF re-
ceiver register settings. A description of each group is outlined below. See the CS8422 data sheet for
complete register descriptions.
Receiver Input Control - Configures the CS8422’s receiver input pins and mux.
Receiver Data Control - Configures the CS8422’s receiver data processing.
Receiver Error Unmasking - Configures the CS8422’s receiver error unmasking.
Receiver Error - Shows the status for the CS8422’s unmasked receiver errors.
Receiver Channel Status - Shows the status bits for the CS8422’s selected receiver channel.
Receiver Status - Shows CS8422’s receiver errors occurring within last input data block.
Receiver Format Detect Status - Shows the data format detected on the CS8422’s receiver.
Update CS8422 - Reads all registers in the CS8422 and reflects the current values in the GUI.

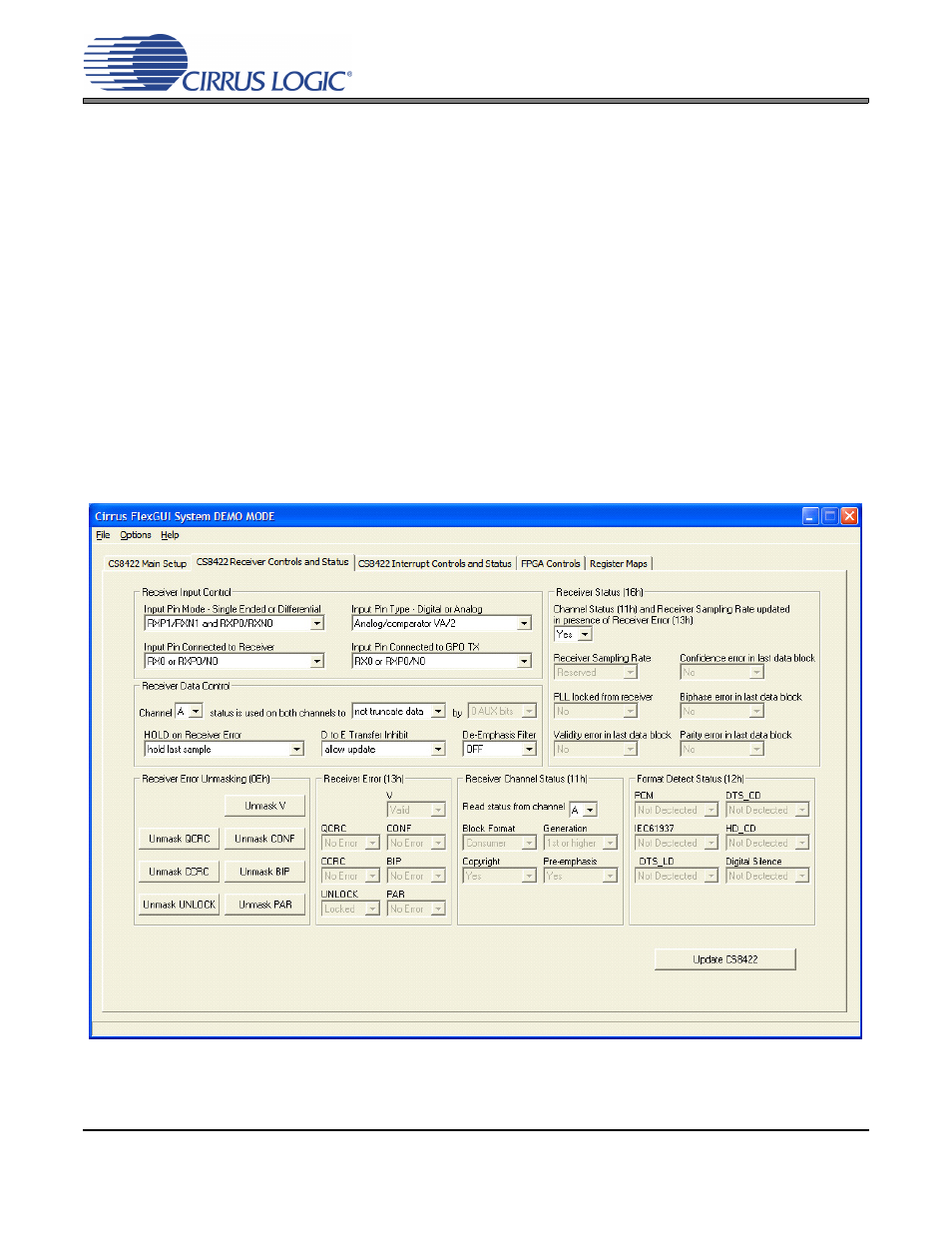

Figure 7. CS8422 Receiver Controls and Status Tab
