CapturePlus II
6 DS789UM2
4. SOFTWARE DESCRIPTION

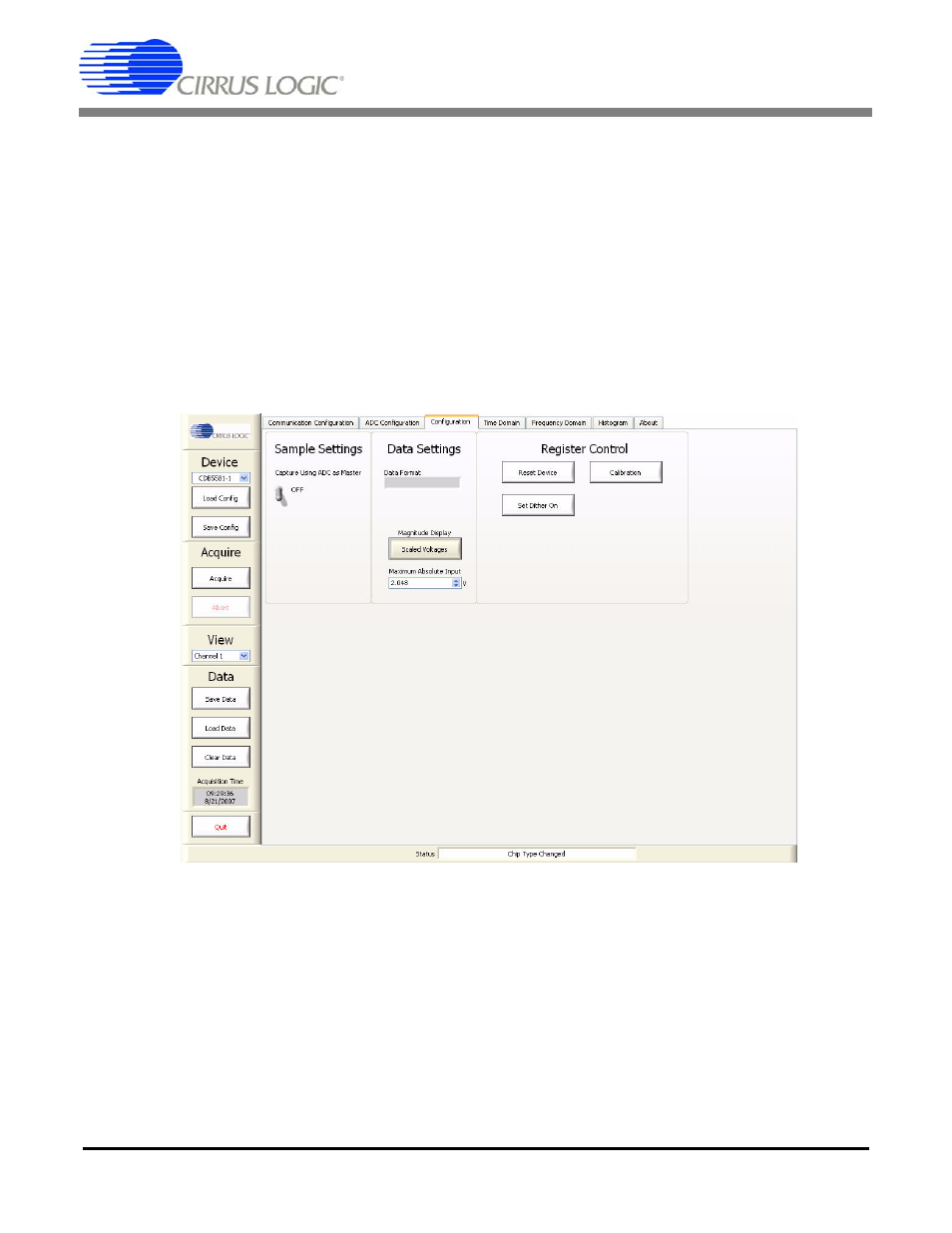

The CapturePlus II Software user interface is divided into two sections:
– The data control sub-panels are located on the left-hand side and bottom of the GUI display and
are always available.
– The tabs at the top of the GUI panels are always present and provide convenient access to
configuration and data collection panels.
– Click on a tab to display the desired panel.
4.1 Data Control Sub-panels
The data control sub-panels are located on the left-hand side and bottom of the GUI display. They are
always visible.
Sub-panel Descriptions:
– Device: Configures the CapturePlus II system to capture data from the evaluation board.
– Acquire: Configures software parameters for acquiring data sets from the evaluation board.
– View: Selects the analog input channel for which data is displayed.
– Data: Save, load, or clear the data set in PC memory.
– Quit: Exits the software.
