CapturePlus II
38
DS789UM2

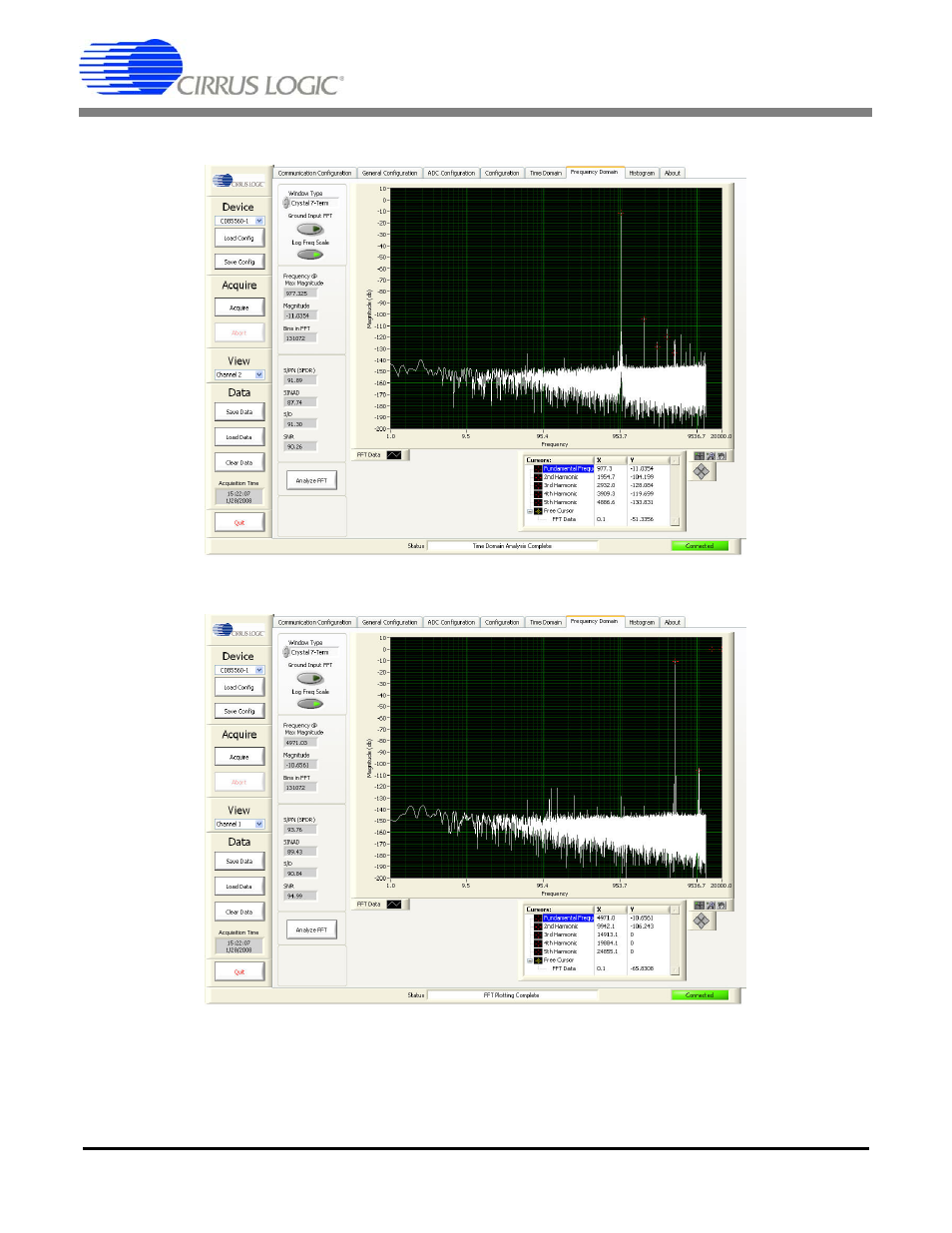

Key information calculated from the captured data and displayed is the SFDR, SINAD, S/D, and SNR.
Notice that when running an averaged, multiple FFT test the user is not required to activate the
Analyze FFT button to display the FFT graph. Only when capturing single data sets is the user required
to activate the Analyze FFT button to display the FFT graph.
