CapturePlus II
DS789UM2
33
Start the test run by clicking OK. At the end of the test run the screen will automatically display the results.

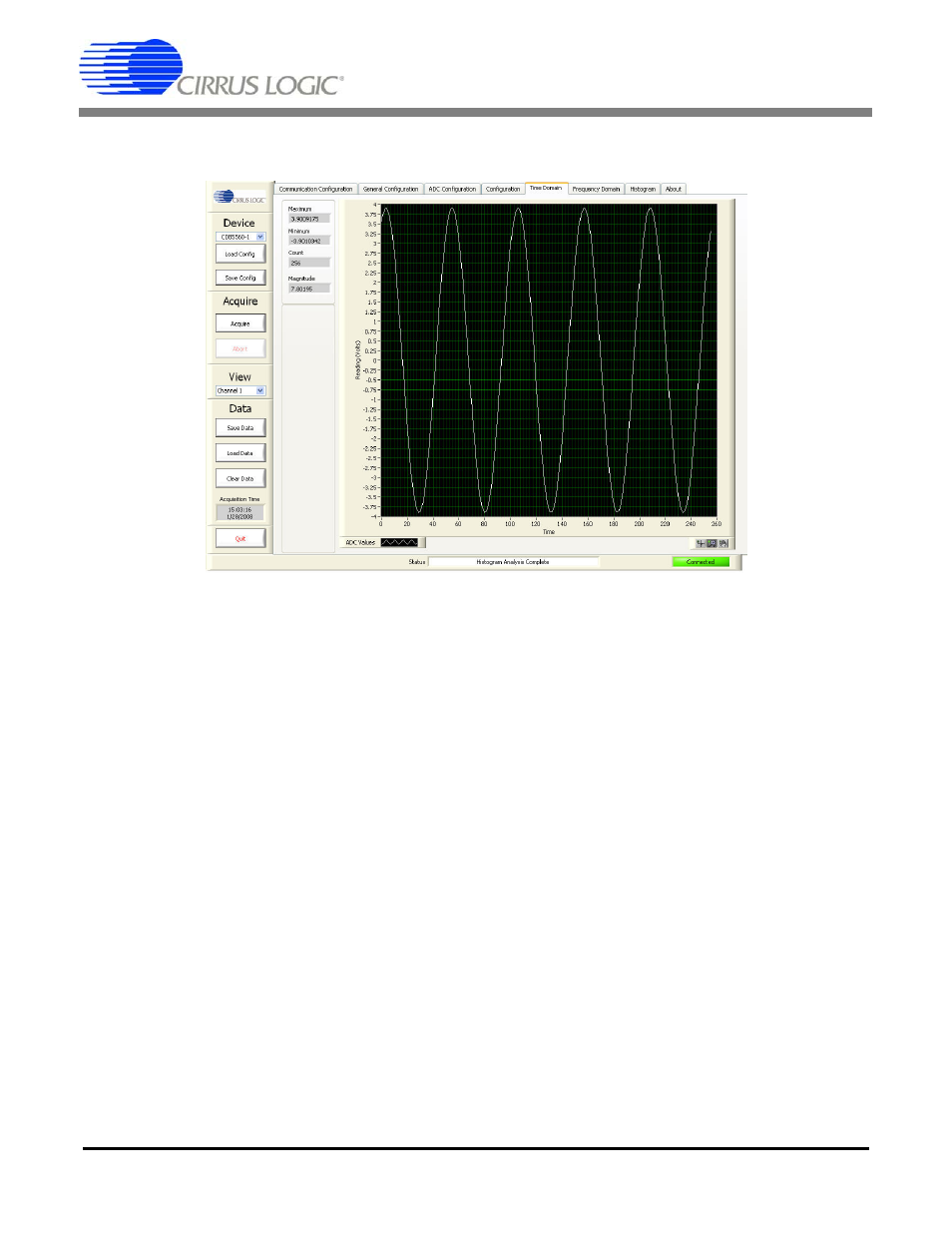

A typical time domain plot from capturing a -0.5 dB input signal with a 24-bit ADC is shown below.
Setting the desired signal level may require several iterations of adjusting the analog input signal level and
then capturing and viewing the data.
