CapturePlus II
32 DS789UM2
A.2 Measuring Analog Input Signals
A.2.1 Setting Up the Input Signal Amplitude
Connect the signal source to the evaluation board analog input(s).

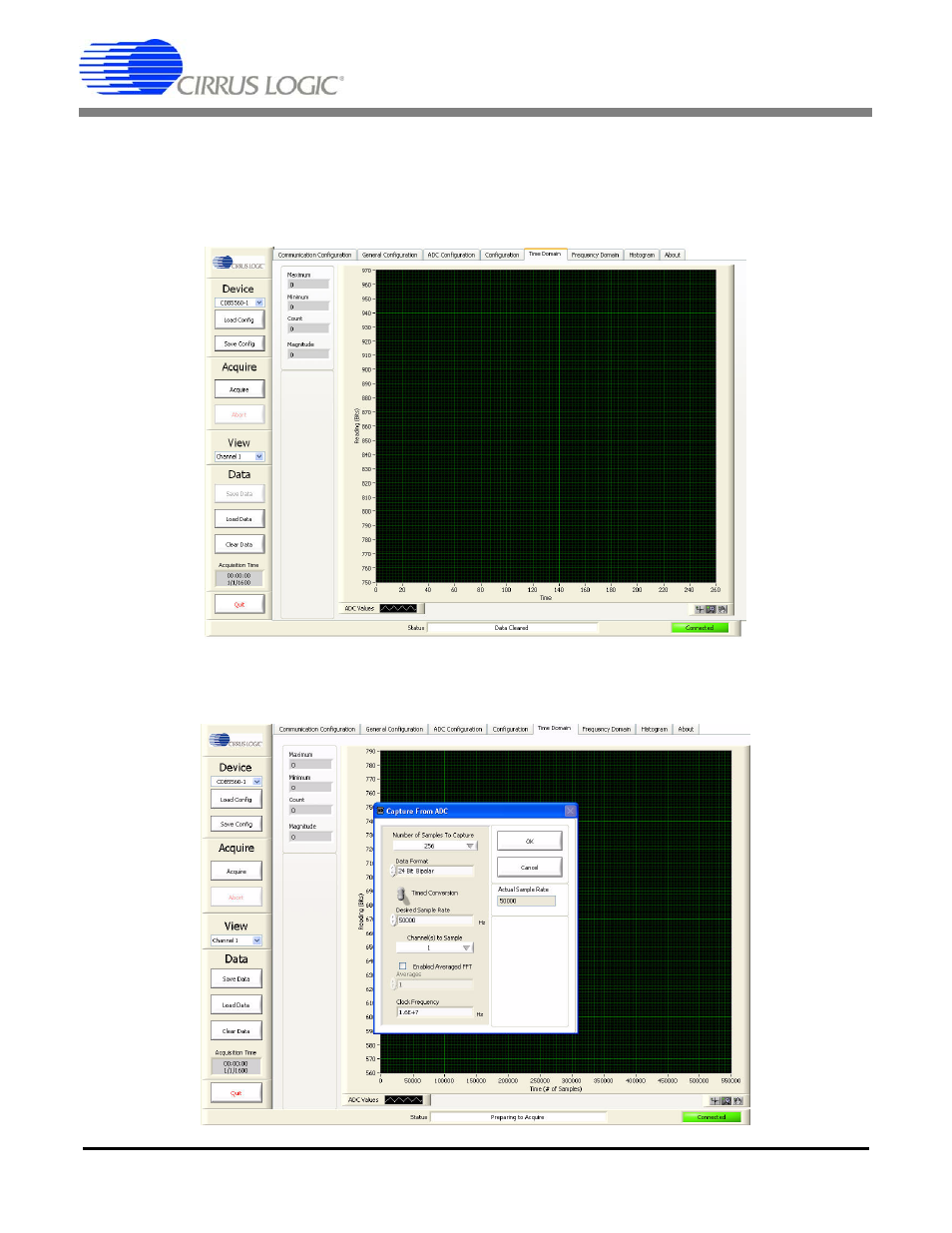

Select the Time Domain window by clicking on the Time Domain tab at the top of the screen.
Click on the Acquire button. Within the Acquire sub-panel set Select Number of Samples to Capture to a
small sample size; this example uses 256 to speed up the data capture process. Set the Channel(s) to
Capture to the desired channel(s).
