CapturePlus II
14 DS789UM2

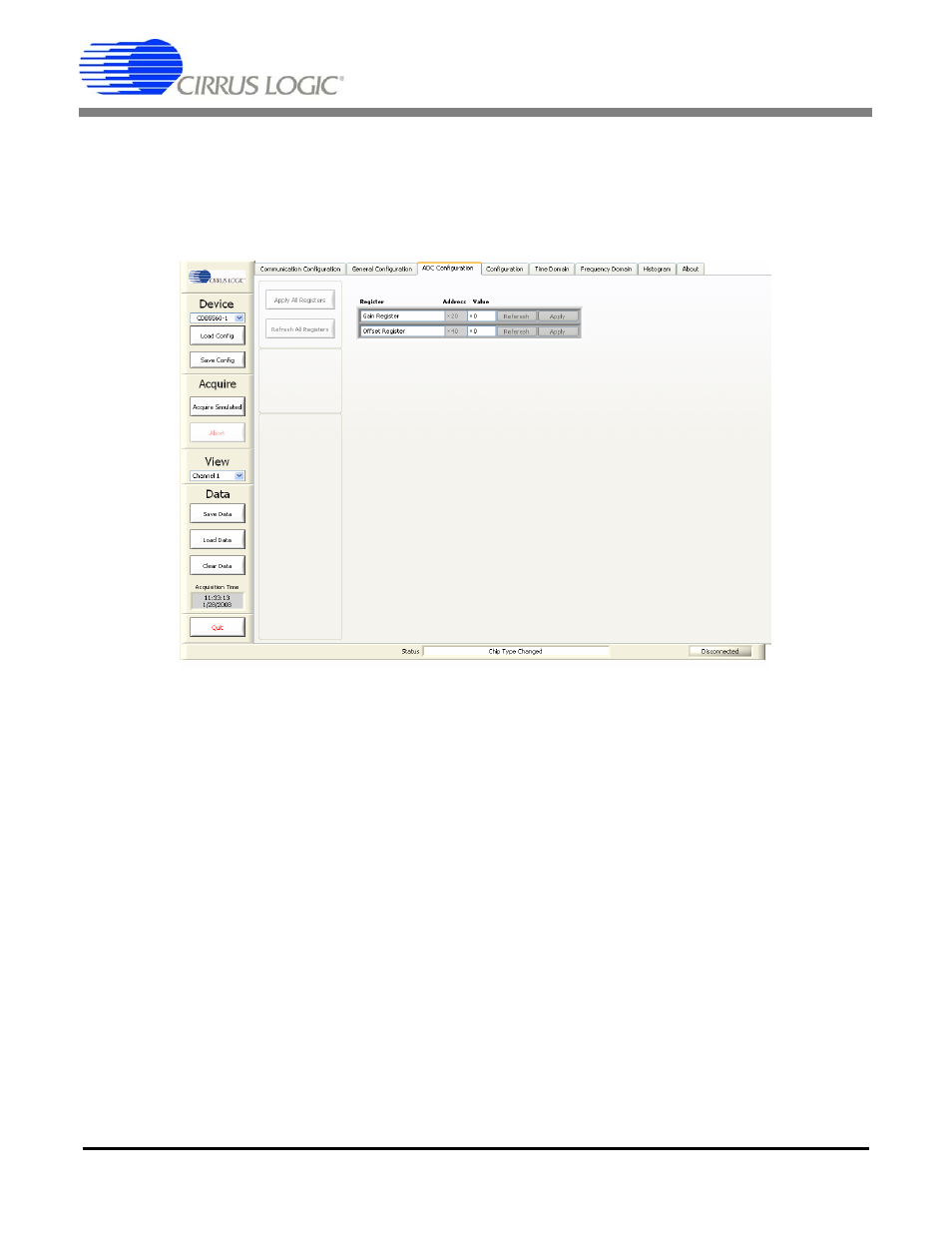

4.2.3 ADC Configuration Tab
The ADC Configuration tab provides a method for reading and writing to the ADC digital gain and offset
registers. Select the ADC Configuration tab to display this panel. Click on any other tab to exit this panel.
NOTE: This tab is not be available for all Cirrus Logic evaluation boards/ADCs.
The ADC Configuration panel consists of the following sub-panels:
– Gain Register: Displays the ADC GAIN Register contents in hexadecimal. Access to the gain
register Value window contents is enabled with a mouse click on the Value window. The Apply
button writes the contents of the Value window to the ADC gain register. The Refresh button reads
the value from the ADC gain register and displays it in the Value window.
– Offset Register: Displays the ADC offset register contents in hexadecimal. Access to the ADC
offset register Value window contents is enabled with a mouse click on the Value window. The
Apply button writes the contents of the Value window to the ADC offset register. The Refresh button
reads the value from the ADC offset register and displays it in the Value window.
– Apply All Registers: Writes contents of all Value windows to the ADC registers.
– Refresh All Registers: Reads contents from ADC registers and displays the contents in the Value
windows.
