5. CONFIGURING THE CapturePlus II SYSTEM
The following sections describe how to configure the CapturePlus II system.
The CapturePlus II system is designed to interface with a wide variety of Cirrus Logic evaluation boards.
For this example set-up, the instructions show the CapturePlus II system being interfaced to a Cirrus Log-
ic evaluation board.
5.1 Communication Configuration

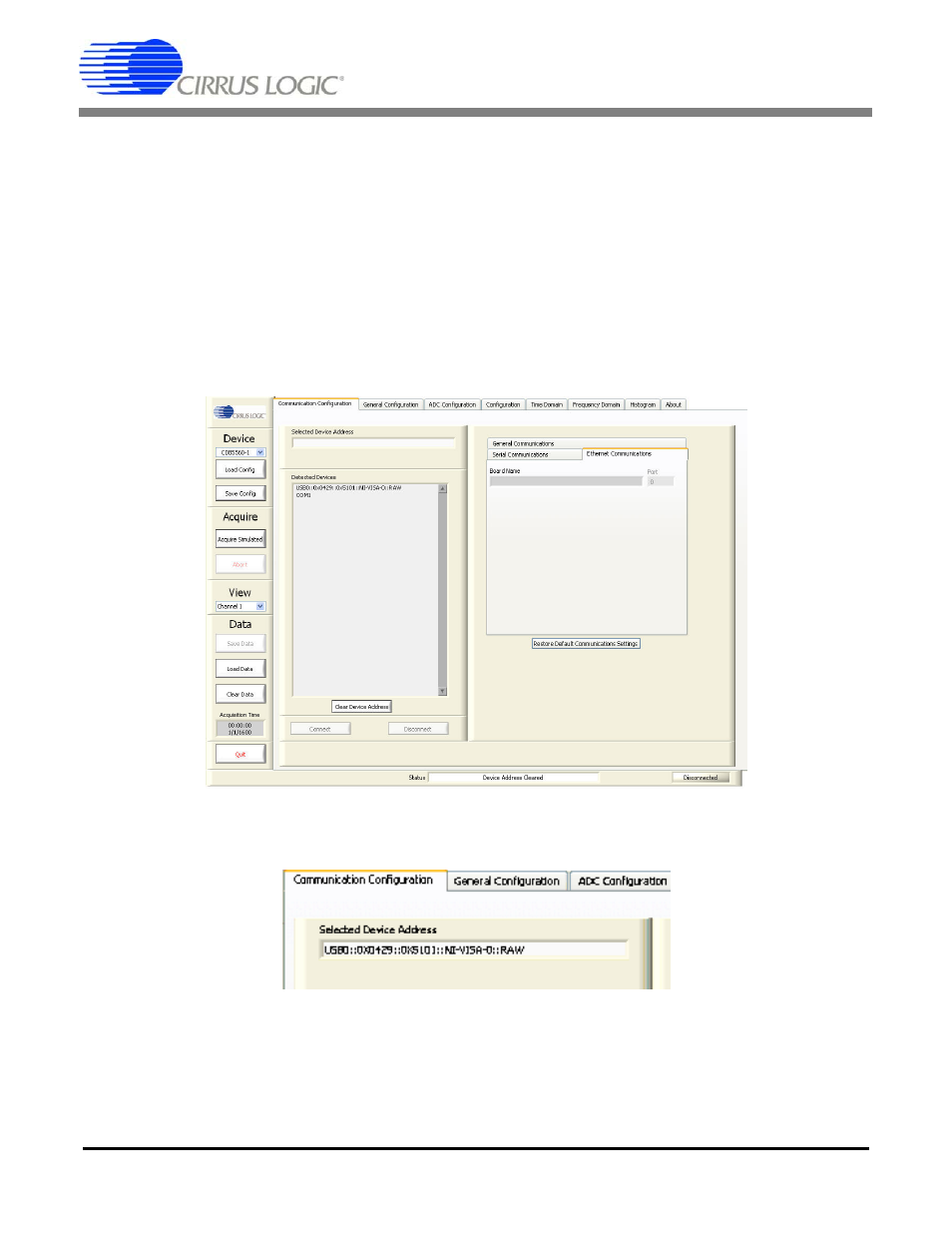

Select the Communication Configuration window (selected by clicking on the Communication Configura-
tion tab at the top of the screen). When the CapturePlus II system is finished booting up, the Detected
Devices field will display a USB device address.
Click on the displayed USB address and it will appear in the Selected Device Address field.
