1. CAPTUREPLUS II HARDWARE OVERVIEW
1.1 Kit Contents
The following items are included in the CapturePlus II kit.
– Cirrus Logic ARM9-based Control/Communications Board
– CapturePlus II Data Acquisition Software on CDROM
– RS-232 9-pin Null Modem Cable
– USB Cable
– Power Supply (Does not supply power to the evaluation board.)
1.2 Required Items Not Supplied
The following items are required to use the CapturePlus II system and are not included in the kit.
– Cirrus Logic Evaluation Board and Data Sheet
– Power Supplies to Run the Evaluation Board (varies depending on evaluation board used)
– PC Running Windows
®
2000 or Later or Windows NT
®
and an Available USB 2.0 Port
– Internet Access to Download any CapturePlus II Software Updates from
www.cirrus.com/Industrialsoftware .
1.3 Minimum PC System Requirements
The PC system requirements for the Cirrus Logic CapturePlus II system are:
– Windows 2000 or Later or Windows NT
– Intel
®
Pentium
®
600 MHz or Higher CPU
– Video Resolution of 1024 x 768 or Greater
– Minimum 1 GB RAM (2 GB recommended for large data captures)
– Minimum 100 MB Free Hard Drive Space

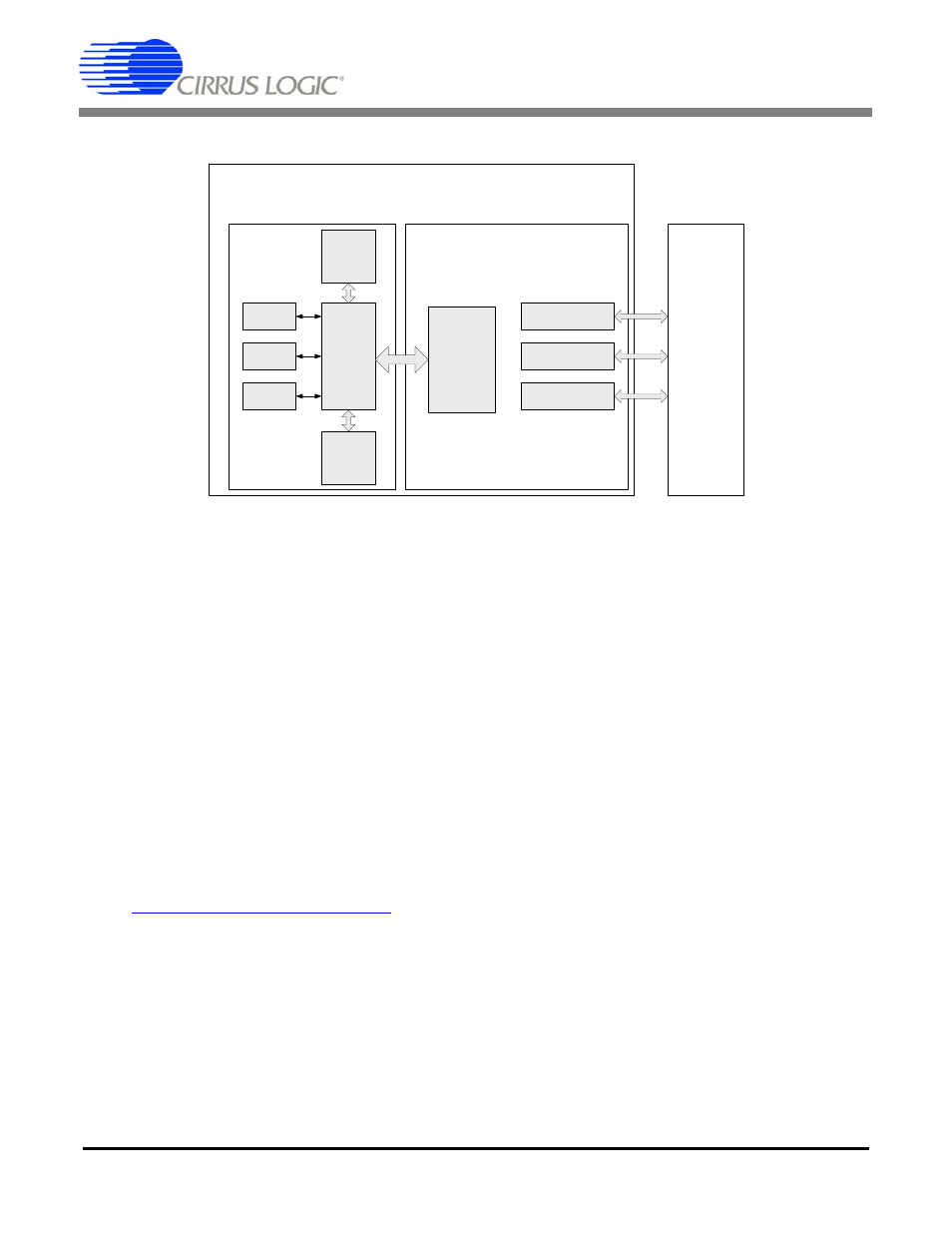

CapturePlus II
Hardware
Board A
(ARM9)
Board B
(Interface)
Electrical Isolation
Electrical Isolation
Electrical Isolation
FPGA
DSP
USB
Driver
Indicator
LEDs
Ethernet
Driver
Data
Acquisition
Memory
(RAM)
DSP
Operating
System
ROM
Cirrus Logic
Evaluation
Board
