Captureplus ii – Cirrus Logic CapturePlus II User Manual
Page 25
CapturePlus II
DS789UM2
25

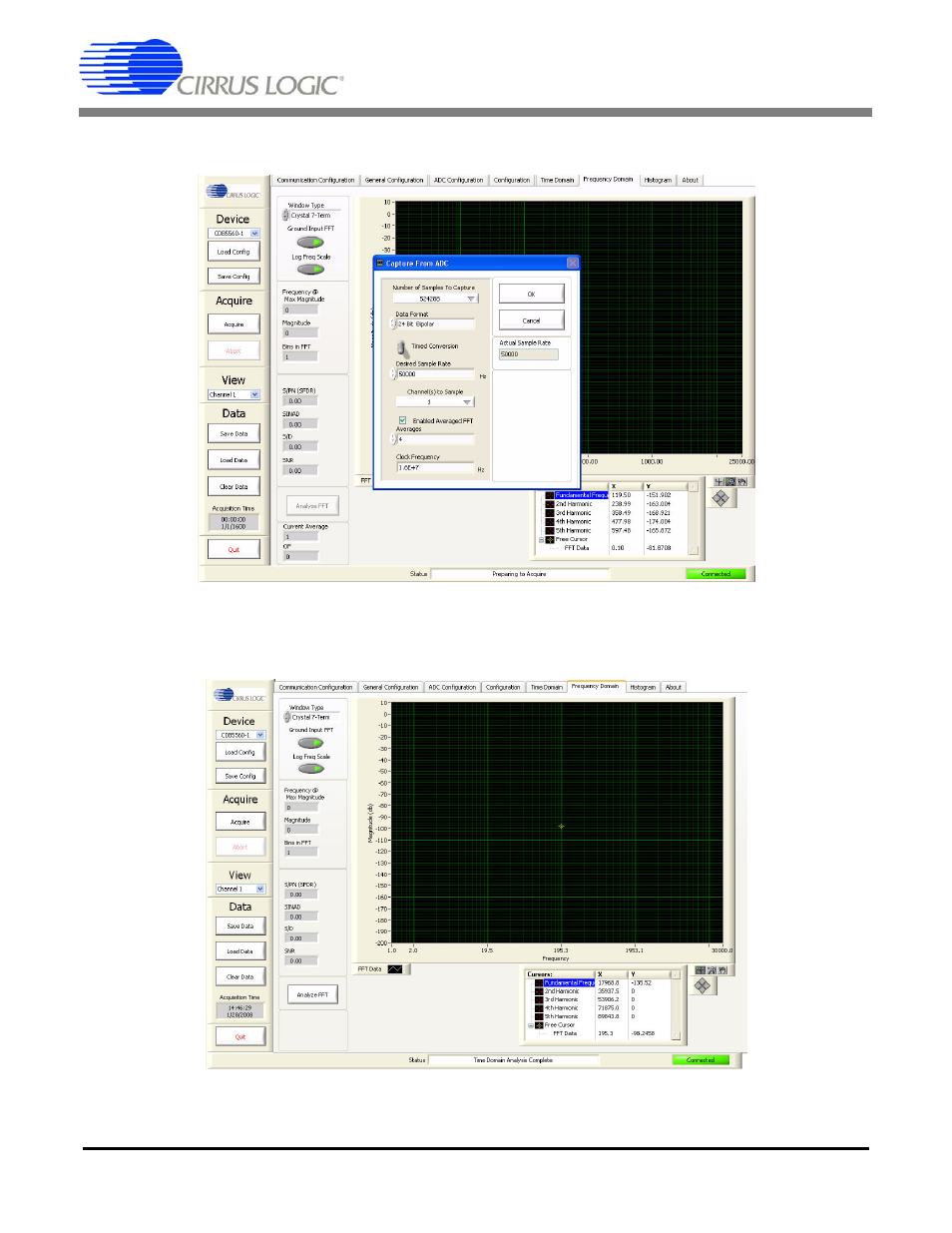

Activate the Acquire button. Within the Acquire sub-panel set Select Number of Samples to Capture to
524288.
Start the test run by clicking OK. Run time for this test is less than 1 minute for a 100 kSps ADC. When
the data has been captured and is ready to be displayed, the Status window at the bottom of the screen
will display Time Domain Analysis Complete.
Click on the Analyze FFT button to display the FFT data.
