4.2 Menu Tabs

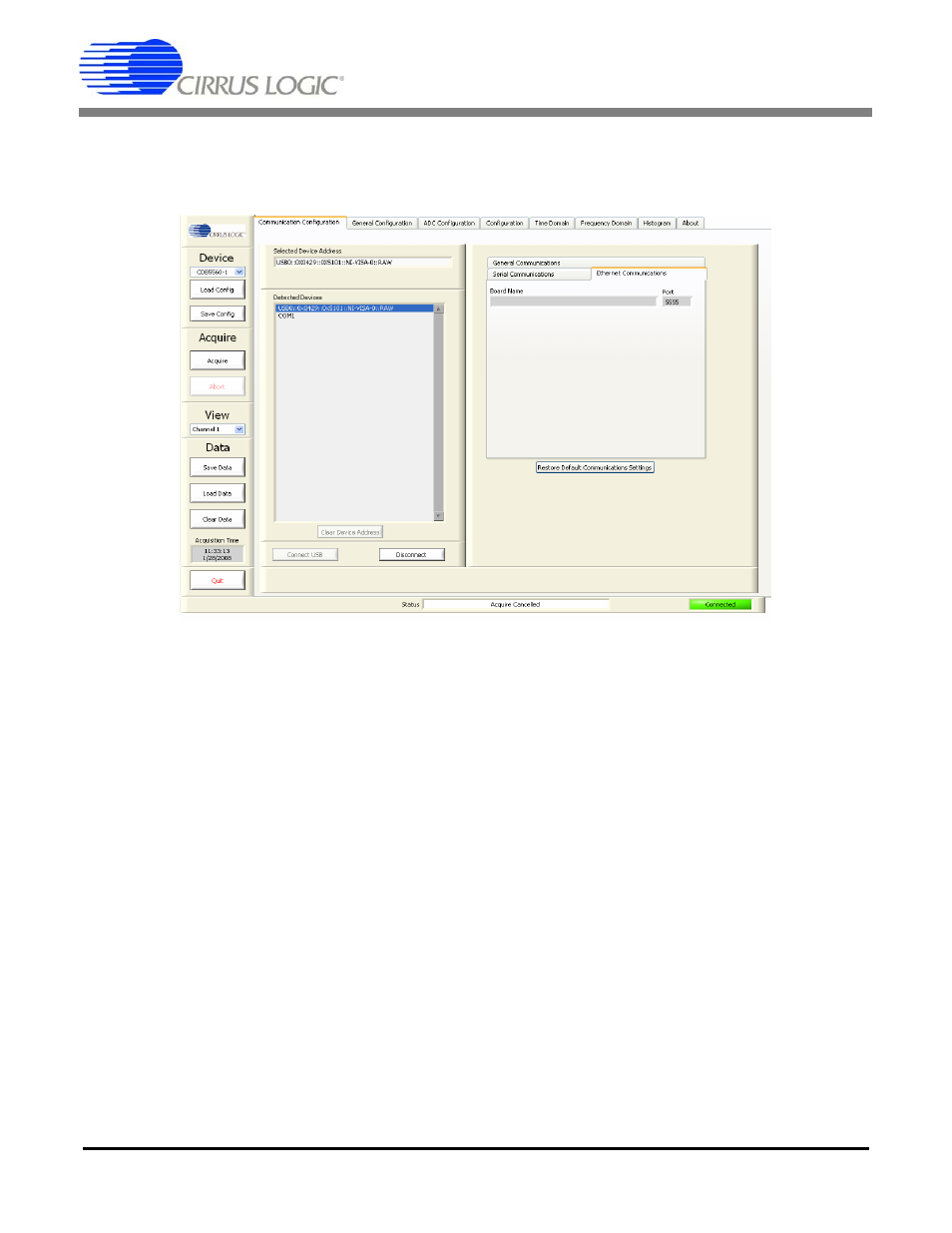

The menu tabs are always present at the top of the software panels and provide access to configuration
and data collection panels. The menu tab selects the currently displayed panel.
Sub-panel Descriptions:
– Communication Configuration: Displays the Communication Configuration panel.
– General Configuration: Displays the scaling configuration for all software-generated graphs and
calculations.
– ADC Configuration: Displays the ADC Configuration panel.
– Configuration: Displays the Configuration panel.
– Time Domain: Displays the Time Domain analysis panel.
– Frequency Domain: Displays the Frequency Domain analysis panel.
– Histogram: Displays the Histogram panel for statistical analysis.
– About: Displays the About panel.
