Page 29: 7commissioning

DGPI(L)−...−AI F
Festo DGPI(L)−...−AIF 0409a English
29
7

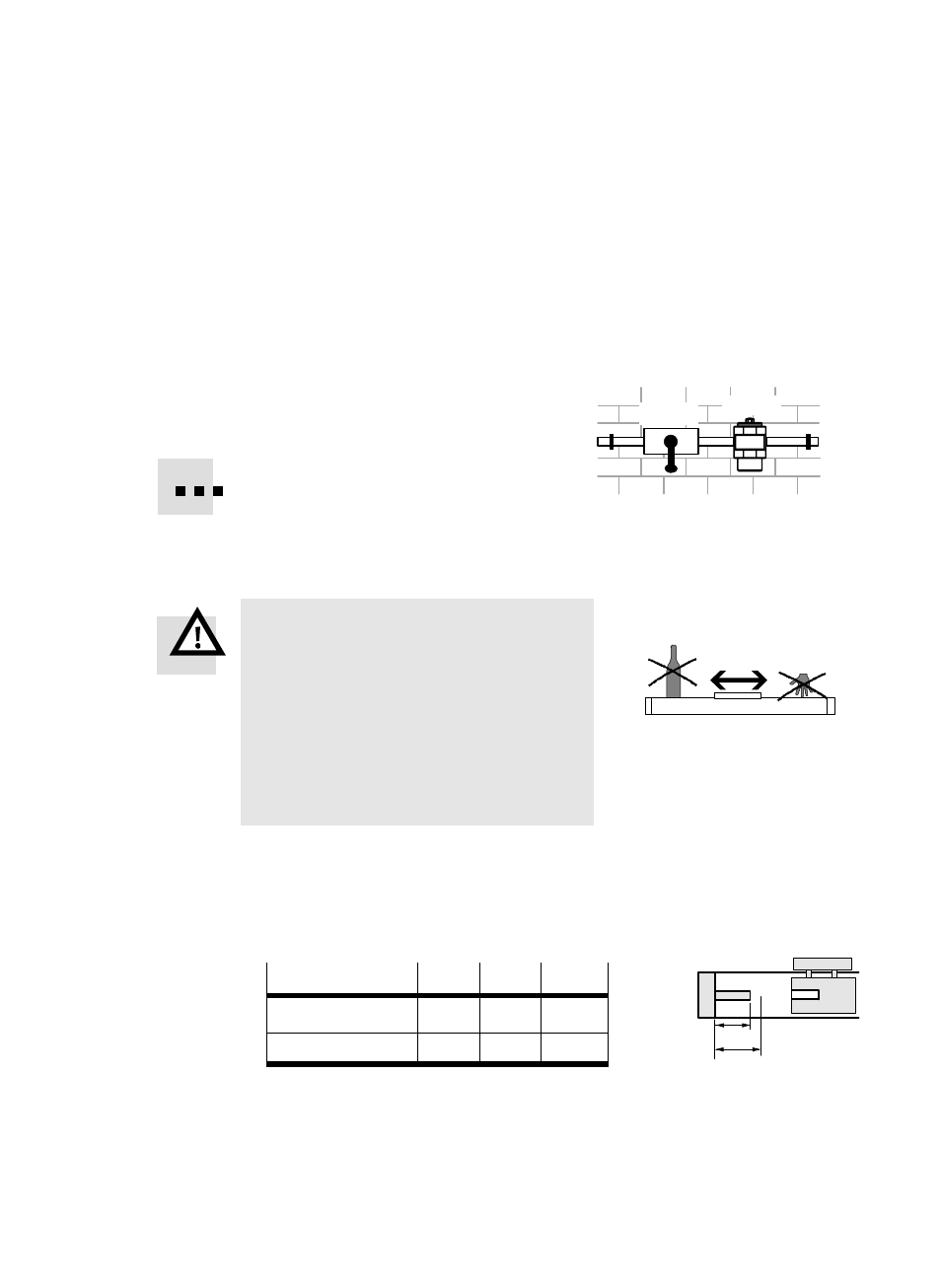

Commissioning
Commissioning the complete system
S
Slowly pressurize the complete system.
In this way you will prevent sudden unĆ
controlled movements.
For slow start−up pressurization, use
safety start−up valve type HEL−.../HEM−...Ă.
Commissioning the DGPI(L)−...
Warning
S Make sure that:
Ĉ nobody can place his/her hand in the path
of the moveable mass (e.Ăg. by providing a
protective grill).
Ĉ there are no objects in its path.
It must not be possible to touch the
DGPI(L)−... until the mass has come to a
complete stand.
Control with SPC11/200:
1. Note the stroke reduction per end position.
Only limited positioning behaviour is available
within the stroke reduction.
DGPI(L)−...
25
32
40...80
Cushioning length d
18 mm
20 mm
30 mm
Stroke reduction r
25 mm
25 mm
35 mm
At the factory it is intended that the pneumatic end position cushioning is
open completely on both sides when the device is controlled by the
SPC11/200.
QH−...
HEL−...
Fig. 17
Fig. 18
Fig. 19
d
r
