Page 25

DGPI(L)−...−AI F
Festo DGPI(L)−...−AIF 0409a English
25

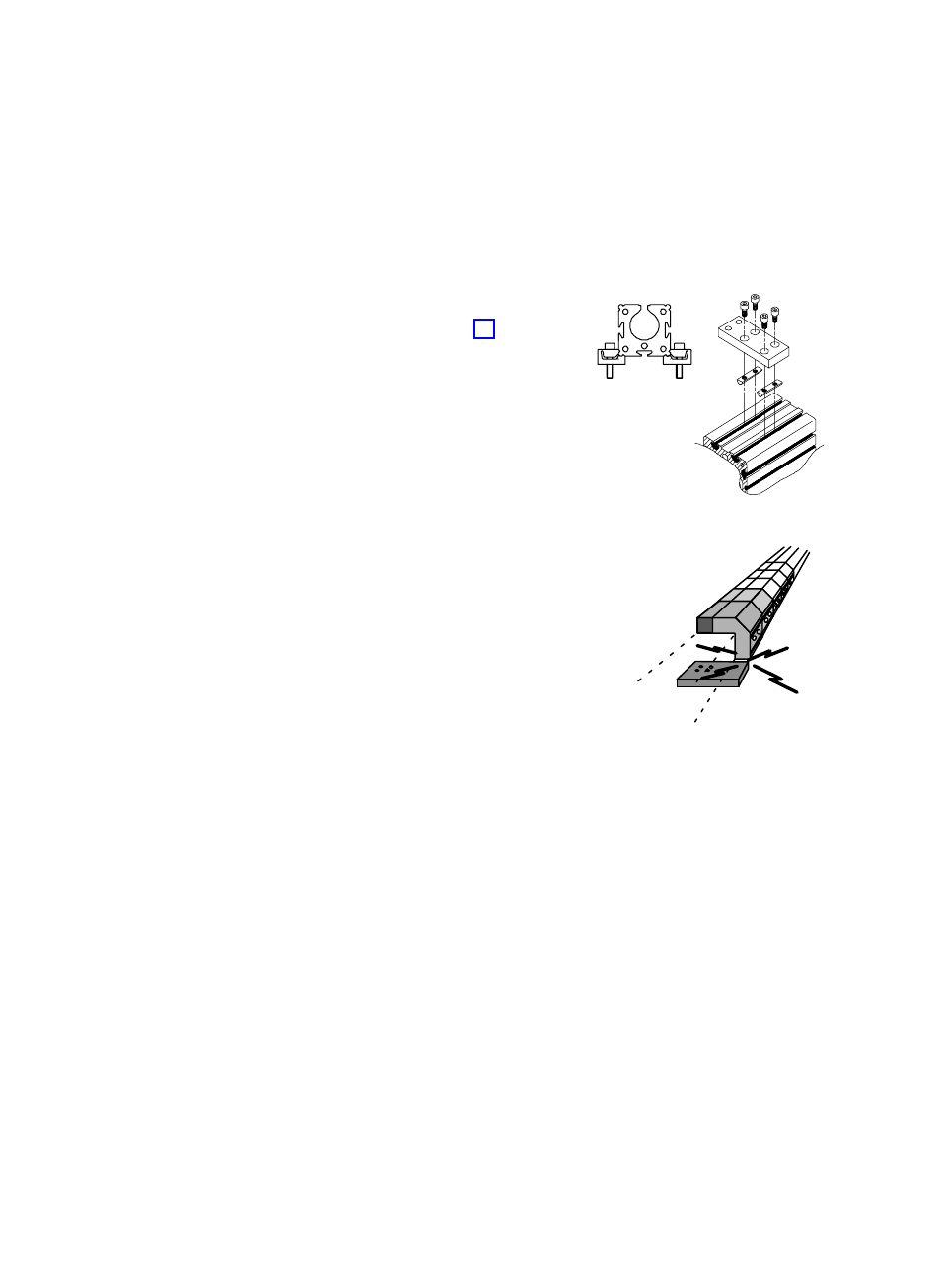

Fitting profile fastenings type MUP−...
1. Place the profile fastenings on the
DGPI(L)−... in accordance with Fig. 8.
If the sliding blocks of sizes 32...63 are
tilted, they will slide into the groove at
any point on the profile.
2. Tighten the fastening screws to an equal
extent.
3. Make sure that the profile fastenings are
outside the positioning range of the slide.
In order to do this, push the slide once
over the entire positioning path.
Fig. 8
dia. 32 ...63
dia. 25
Fig. 9
