DGPI(L)−...−AI F
Festo DGPI(L)−...−AIF 0409a English
26
Fastening the work load
1. Select a fastening method:
DGPIL−...
DGPI−...
1. Sliding blocks NSTL−... on slide
4
2. Threaded holes and centring elements
(see Accessories") on the slide
3. Holes
6 and
threads
7
in the
driver
8

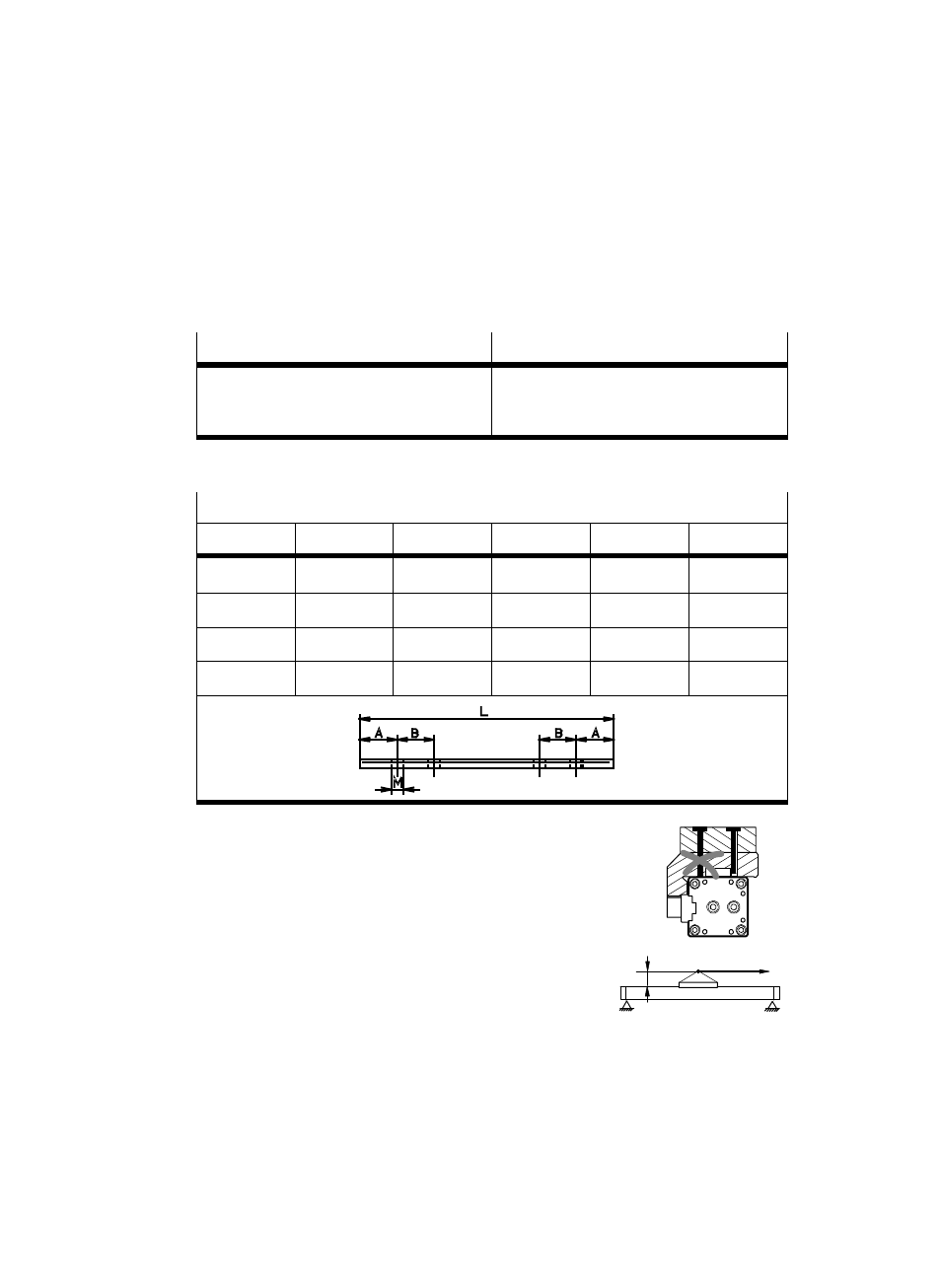

Fig. 10: Methods of fastening the work load (see Fig. 1)
Dimensions of the sliding blocks NSTL−... [mm]
j
25
32
40
50
63
L
100
128
166
199
229
A
13
14
25
24
30
B
15
15
20
20
35
M
M5
M5
M5
M8
M8
Fig. 11
If fastening method 2 is used, the screws
must be shorter than the threaded hole.
2. Place the work load so that the tilting
torque of force F parallel to the movement
axis and lever arm a" remains low.
Work loads with their own guide:
S
Adjust the guides of the work load and the DGPI(L) so that they are exactly
parallel.
Fig. 12
Fig. 13
a
F
