44

14. Appendix IV Bolt Torque Recommendations

Metal Construction

Reagent Head
Part No.

Head
Size

Head Bolts

Tie bar Bolts

No. Bolts &
Size

Torque

No. Bolts &
Size

Torque

N-m

Ft–lbs.

N-m

Ft–lbs.

NP160001

A

(6) M10 * 1.5

39

29

(4) M8 * 1.25

8

6

NP160002

B

(6) M12 * 1.75

68

50

(4) M8 * 1.25

8

6

NP160003

C

(6) M10 * 1.5

39

29

(4) M8 * 1.25

8

6

NP160004

D

(6) M8 * 1.25

20

15

(4) M8 * 1.25

8

6

Plastic Construction

Reagent Head
Part No.

Head
Size

Head Bolts

Tie bar Bolts

No. Bolts &
Size

Torque

No. Bolts &
Size

Torque

N-cm In–lbs.

N-cm In-lbs.

NP160012

A

(6) M10 * 1.5

850

75

(4) M8 * 1.25

250

22

NP160014

B

(6) M12 * 1.75

850

75

(4) M8 * 1.25

250

22

NP160011

C

(6) M10 * 1.5

850

75

(4) M8 * 1.25

250

22

NP160013

D

(6) M8 * 1.25

850

75

(4) M8 * 1.25

250

22

Please note that torque values for plastic heads are given in N-centimeters and inch-lbs


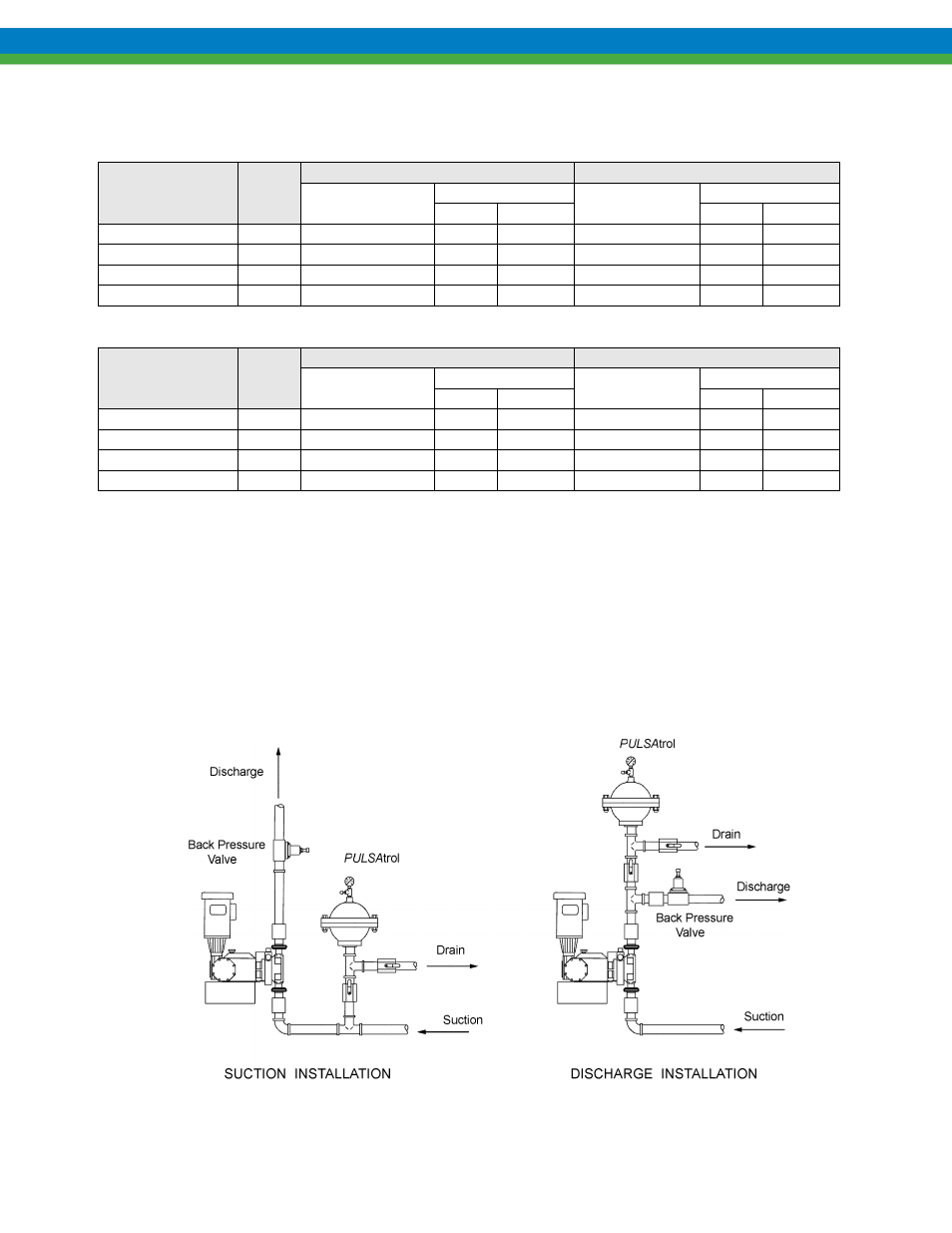

15. Appendix V Pulsafeeder Accessories

Pulsatrol Installation, Operation, & Removal Instructions

The PULSAtrol is a pneumatically charged diaphragm-type chamber that intermittently stores energy.
Used on the inlet, it will improve NPSHA (Net Positive Suction Head available) characteristics of the
suction piping system. On the discharge line it will reduce peak pressures and pulsating flow variations.

Figure 28
