Installation Instructions
B174
For Outdoor Wall Sconce 30-7930 Page 4 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
22709 Rev A

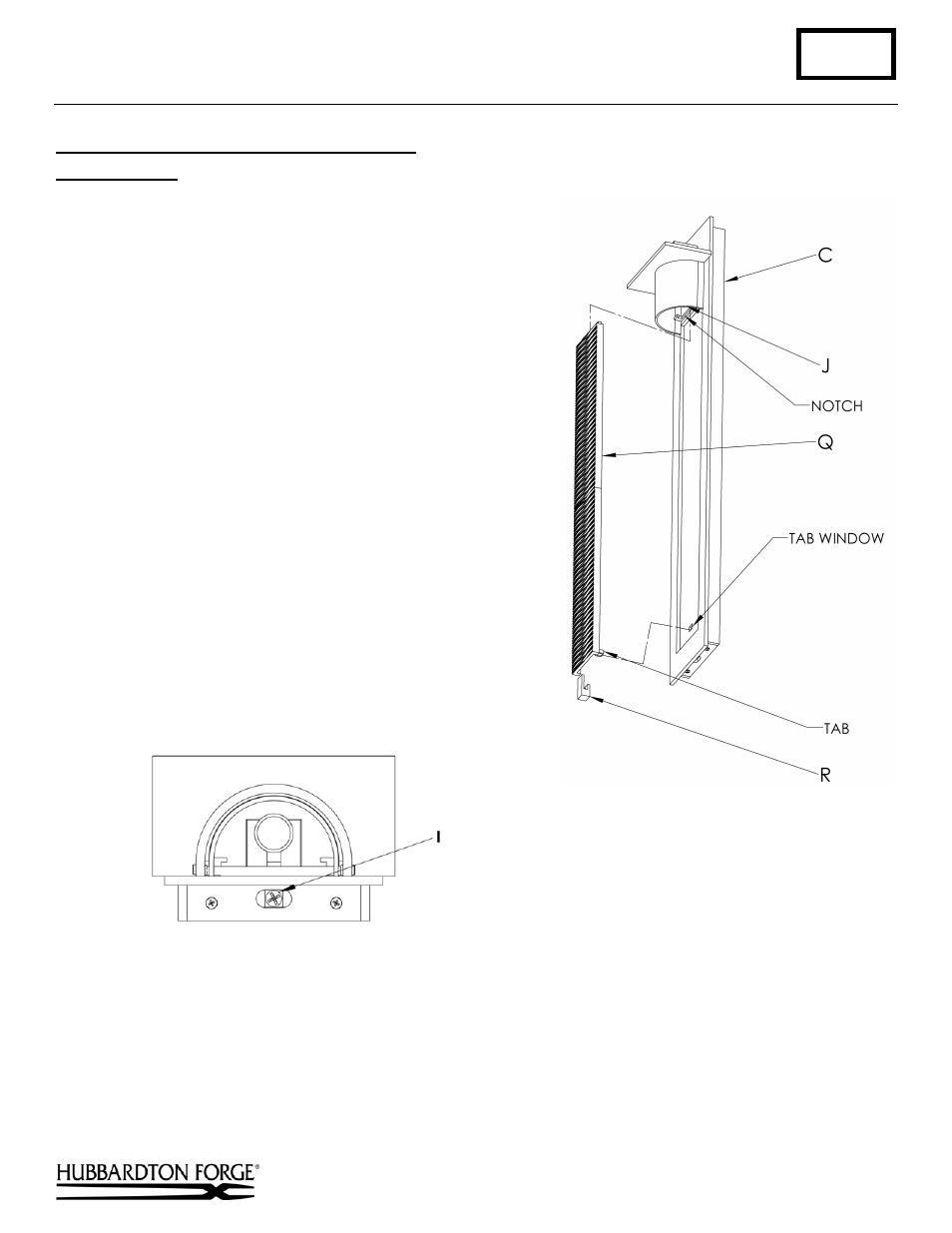

To Assemble & Install Textured Plate Option (Figures 7 & 8)
Component Parts
C Fixture
I
Brass Screw
J Top Ring
Q Textured Plate Assembly
R Spacer
1. Slip spacer (R) onto textured plate assembly (Q) and align so
the screw installed in the spacer matches the dimple in the
back of the textured plate assembly (Q). Tighten the set
screw until snug. Do not over tighten.
2. Slip textured plate assembly (Q) into top ring (J) aligning the
top with the notch inside the top ring (J).
3. Slip tab on textured plate assembly (Q) into the tab window
in fixture (C).
4. When texture plate assembly (Q) is tight against fixture (C)
tighten brass screw (I) from the bottom of the fixture.
See Figure 8.
5. Restore electricity at the main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 8)
(Figure 7)
