Installation Instructions
B174
For Outdoor Wall Sconce 30-7930 Page 3 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
22709 Rev A

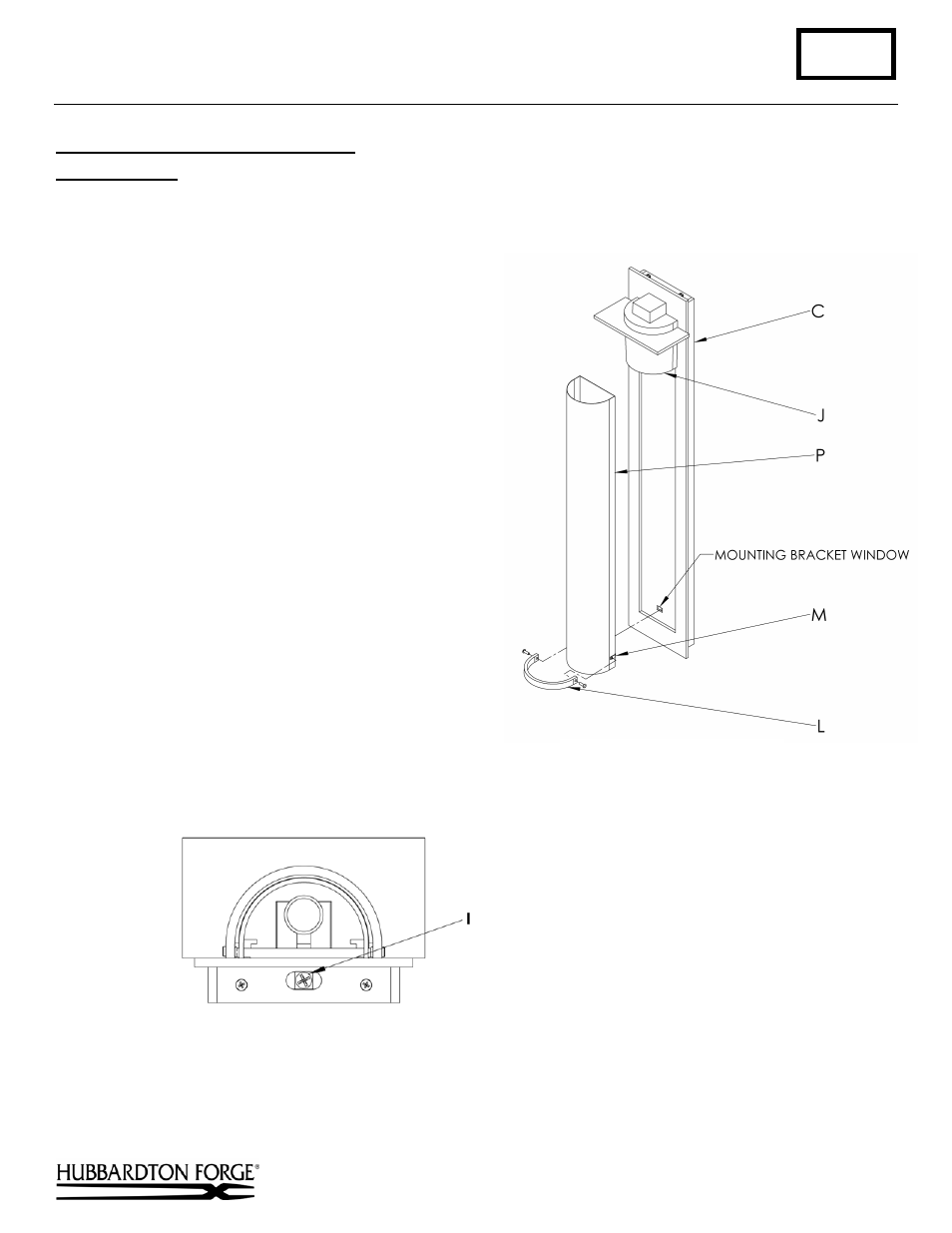

To Assemble & Install Screen Option (Figures 5 & 6)
Component Parts
C Fixture
I
Brass Screw
J Top Ring
L Retaining Ring
M Mounting Bracket
N Cap Screw (2)
P Mesh Screen
1. Slide retaining ring (L) over mesh screen (P)
aligning holes with holes in mesh screen.
2. Slip cap screw (N) thru hole in retaining ring (L)
(both sides).
3. Align mounting bracket (M) with holes in retaining
ring (L).
4. Thread cap screws (N) into mounting bracket (M)
and tighten (both sides).
5. Slide mesh screen (P) into top ring (J) and align tab
on mounting bracket (M) with the mounting bracket
window in the fixture (C).
6. When mesh screen (P) is tight against fixture (C)
tighten brass screw (I) from the bottom of the
fixture. See Figure 6.
7. Restore electricity at the main breaker.
(continued)
(Figure 6)
(Figure 5)
