Installation Instructions
B220
Axis Outdoor Sconce 30-6405 Page 3 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 26480 Rev A

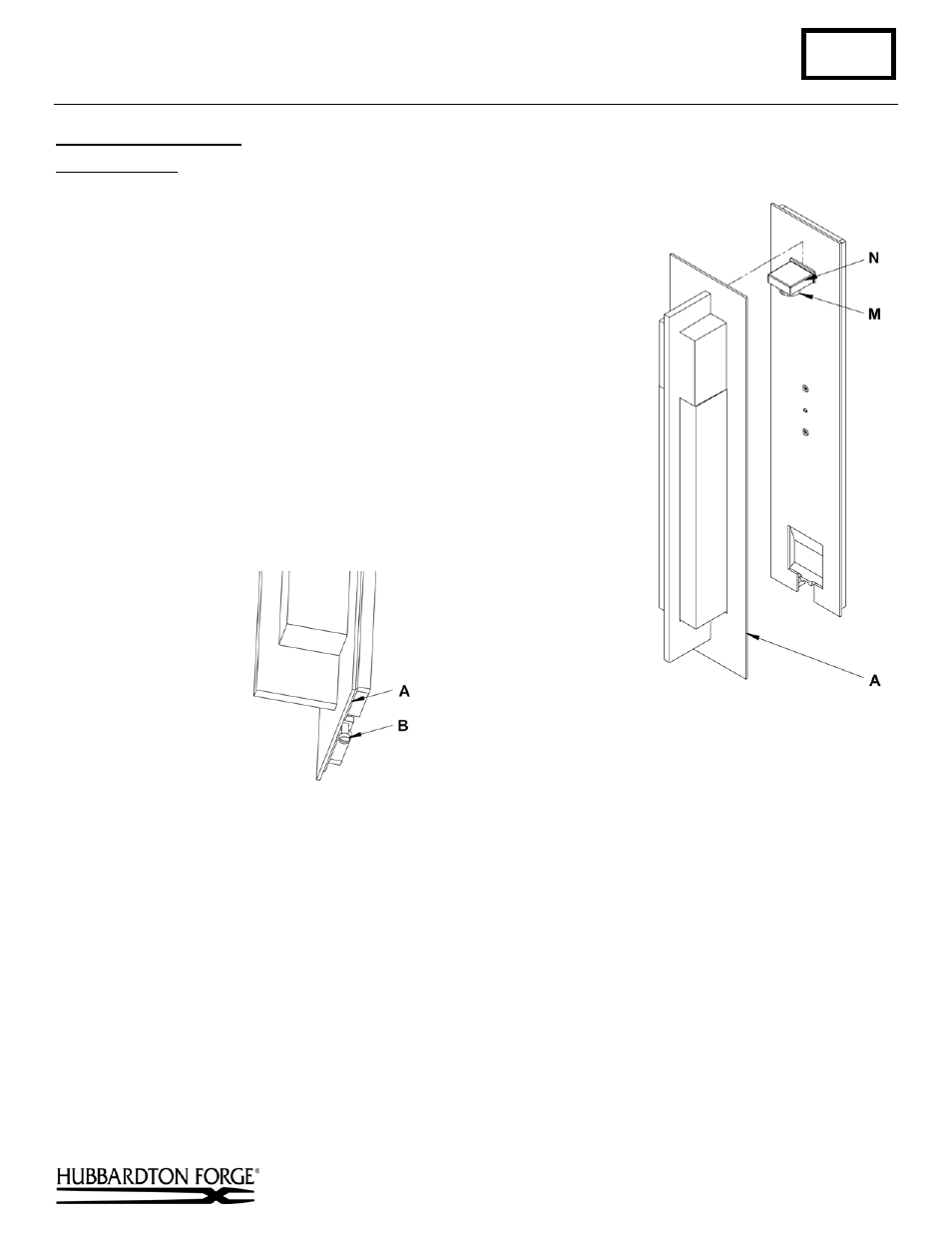

To Install Fixture Front (Figures 8 & 9)
Component Parts
A Fixture Front
B Screw
M Socket
N Socket Housing
9. Install light bulb into socket (M). (Bulb not included)
10. Slip fixture front (A) onto socket housing (N).
11. Tighten screw (B) to lock fixture front (A) in place. Be careful not
to over tighten. See Figure 9
12. Restore electricity at the main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 8)
(Figure 9)
