Installation Instructions
B220
Axis Outdoor Sconce 30-6405
Page 1 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735
26480 Rev A
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.
Fixture should be mounted four feet above grade.
After installation extra hardware and accessories are possible; our kits are used on multiple products and options.

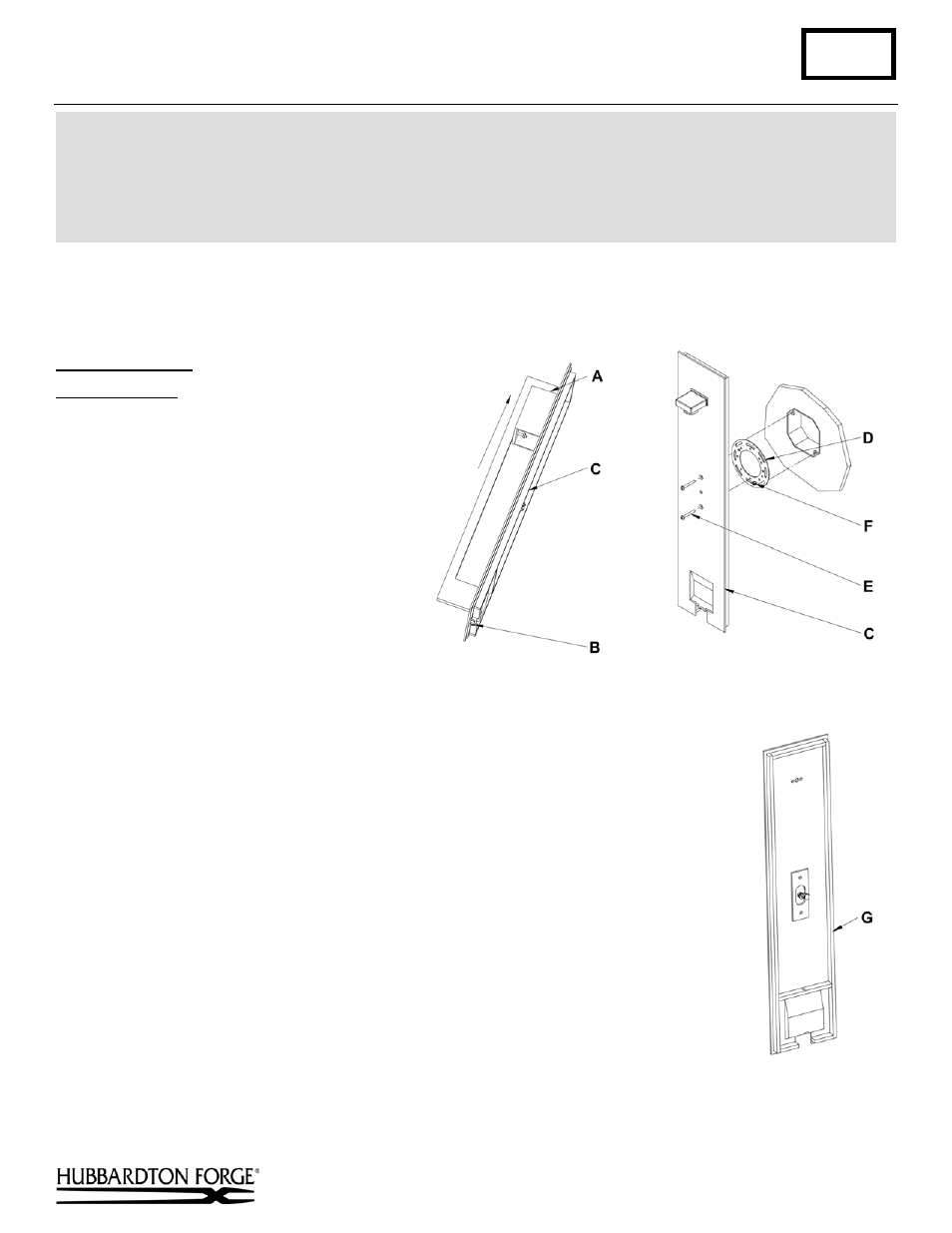

To Install Fixture
(Figures 1, 2 & 3)
Component Parts
M Fixture Front
N Screw
O Fixture
P Crossbar
Q #8 Screw (2)
R Ground Screw
S Caulking Lip
Caution: Be sure power is off at the main
breaker box prior to installation.
1. Carefully unpack the fixture from the
carton.
2. Loosen the screw (B) in the bottom of
the fixture (C) until the fixture front (A)
will come loose from the fixture back.
Move the fixture front (A) towards the top of the fixture (C) to remove (Figure 1).
3. Using two machine screws (not provided) attach crossbar (D) to the electric box
using inside oval holes to orient fixture.
Note: A new electric box comes with screws. When replacing a fixture, retain the
screws for use with the new fixture.
4. Using suitable wire connectors (not provided), connect the fixture wires to the
supply wires, (white to white, black to white). Note: Polarity separation is not
required for the socket used in this fixture. Run a pigtail lead from crossbar ground
screw (F) to the junction box and connect all ground wires (bare copper or green to
bare copper or green).
Caution: Make sure wire connectors are twisted on securely and no bare wires are
exposed.
5. Apply a generous bead of a suitable caulking material to caulking lip (G) on the
fixture.
6. Carefully tuck all wires behind the fixture, place fixture firmly against the wall and
fasten with two #8 screws (E). To ensure a water tight seal, apply a thin bead of
caulking around entire perimeter of the fixture.
7. Continue with installation instructions following to assemble fixture front and glass.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 2)
(Figure 1)
(Figure 3)
