Installation Instructions
B220
Axis Outdoor Sconce 30-6405 Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 26480 Rev A

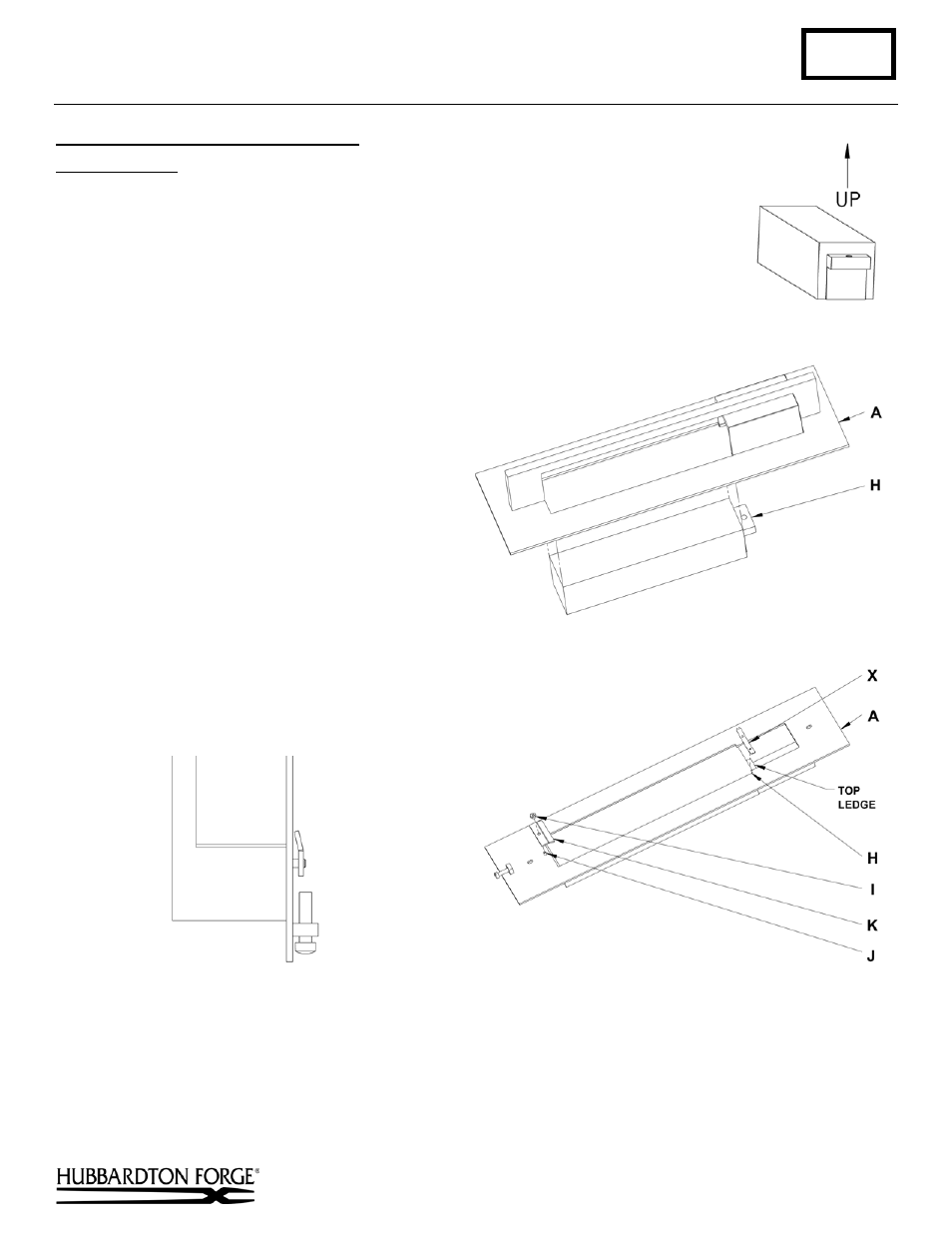

To Assemble Fixture Front and Glass (Figures 4 thru 7)
Component Parts
A Fixture Front
T Glass
U Hex Nut
V Threaded Stud
W Glass Bracket
X Spring
1. Place glass (H) on flat clean surface oriented
as shown in Figure 4.
2. Place fixture front (A) over glass (H)
(Figure 5).
3. Holding fixture front (A) and glass (H)
securely rotate them both over so fixture
front (A) rests on flat surface.
4. Remove hex nut (I) from threaded stud (J).
5. Install spring (X) at the top of the glass (T).
Push spring inside of fixture until it rests
against the top ledge of glass (T).
6. Slip glass bracket (K) on to threaded stud
(J). See Figure 7 for orientation.
7. Thread hex nut (I) onto threaded stud (J). Be
careful not to over tighten.
8. Continue with installation instructions following
to install glass.
(continued)
(Figure 5)
(Figure 7)
(Figure 4)
(Figure 6)
