Installation Instructions
B175
Beacon Hall Outdoor Wall Sconce 30-4810, 30-4810F, 30-4815 & 30-4815F Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735
22735 Rev C

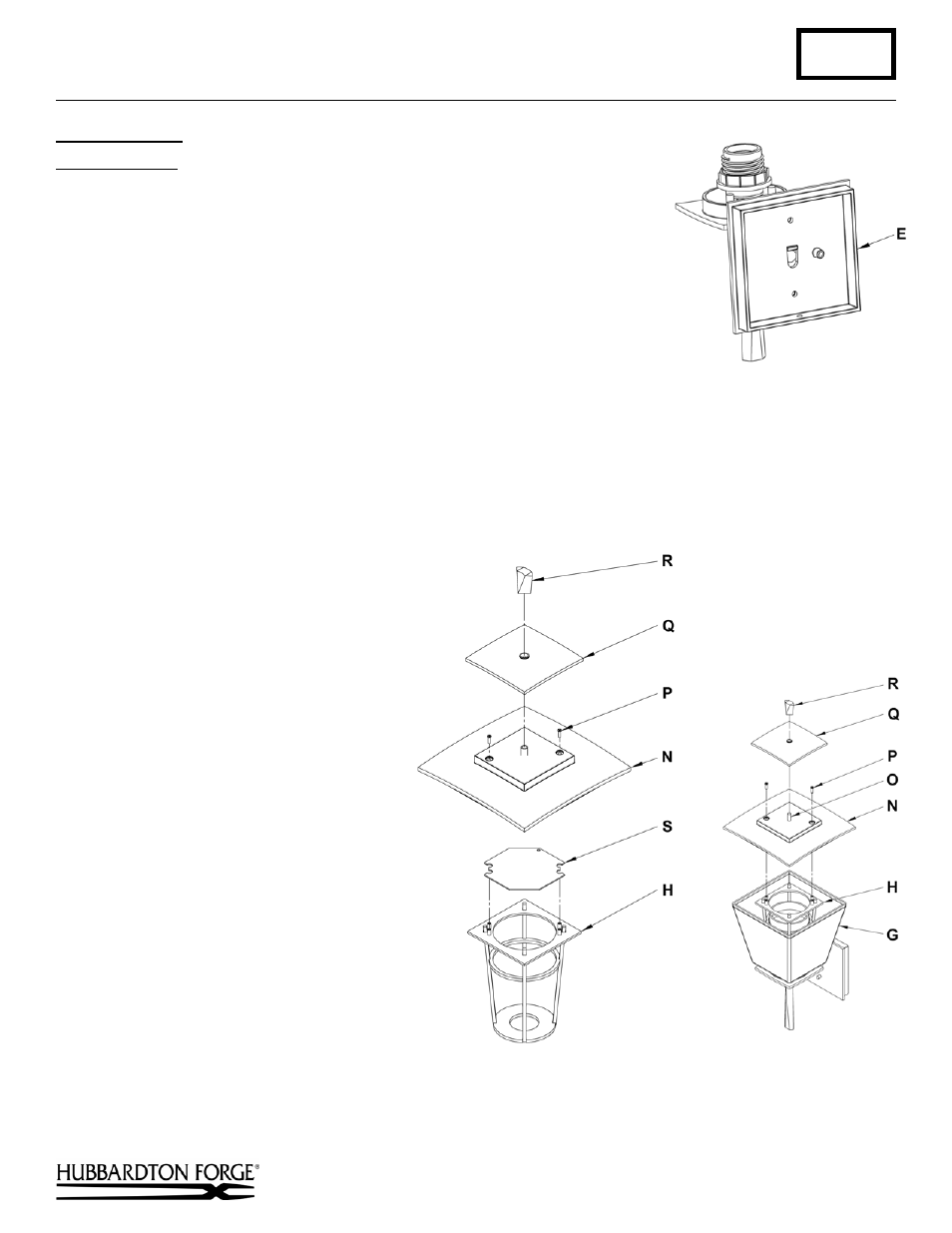

To Install Glass (Figures 4 & 5)
Component Parts
F Inner Glass
G Outer Glass
H Glass Cage
I Retaining Ring
J Socket Tool
K Socket
N Top
Hat
P Flat head Screw (2)
Q Top
Cover
R Finial
S Cover Plate (Model 30-4815 only)
1. Disassemble upper assembly by
unthreading finial (R) and removing the
two flat head screws (P) under top cover
(Q) (Figure 4). Set all pieces aside for
later use.
2. Slip outer glass (G) over socket (K).
3. Slip glass cage (H) over socket (K).
4. Thread retaining ring (I) onto socket
using provided socket tool (J). Do not
over tighten.
5. Install bulb. (Fluorescent versions bulb
is included.)
6. Slip inner glass (F) over socket (K) and
bulb.
(continued)
(Figure 3)
(Figure 4) (Figure 5)
