Installation Instructions
B175
Beacon Hall Outdoor Wall Sconce 30-4810, 30-4810F, 30-4815 & 30-4815F Page 1 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735
22735 Rev C
Please Note: After installation extra hardware and accessories are possible; our kits are used on multiple products and
options.

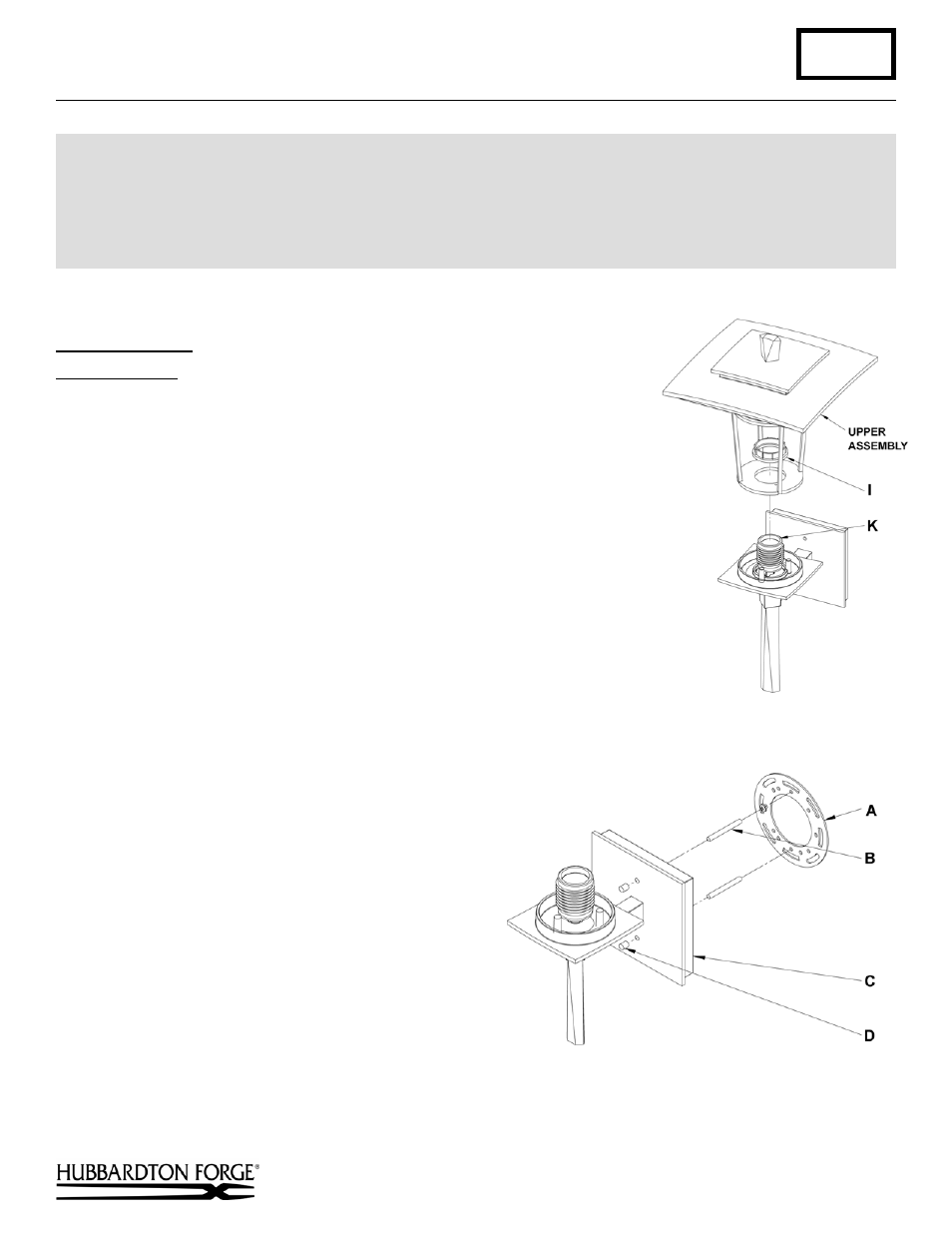

To Install Fixture (Figures 1, 2 & 3)
Component Parts
A Cross Bar
B Threaded Studs (2)
C Fixture
D Barrel Knobs (2)
E Caulking
Lip
I Retaining Ring
K Socket
Caution: Be sure power is off at the main breaker box prior to installation.
1. Carefully unpack the fixture from the carton.
2. Remove retaining ring (I) and lift fixture upper assembly from socket
(K) shipped assembled. Save both for later use.
3. Using two machine screws (not provided) attach cross bar (A) to the
electric box using inside oval holes to orient fixture.
Note: A new electric box comes with screws. When replacing a fixture,
retain the screws for use with the new fixture.
4. Start threaded studs (B) into appropriate holes in crossbar (A).
5. Using suitable wire connectors (not provided),
connect the fixture wires to the supply wires,
(white to white, black to black, bare copper or
green to bare copper or green). If the fixture is
wired with twin lead lamp cord, connect the
ribbed side to white, and the smooth side to
black.
Caution: Make sure wire connectors are
twisted on securely and no bare wires are
exposed.
6. Apply a generous bead of a suitable caulking
material to caulking lip (E) on the fixture.
7. Carefully tuck all wires behind the fixture.
Place fixture (C) over threaded studs (B) and
tighten firmly to mounting surface using barrel
knobs (D).
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 2)
(Figure 1)
