Hubbardton Forge 126503 User Manual

A125, Assembly & installation instructions

H U B B A R D T O N F O R G E . C O M

hand-forged, vermont-made lighting and accessories

154 RT. 30 SOUTH

•

CASTLETON, VERMONT 05735

19909

Assembly & Installation Instructions

If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

To Install Fixture

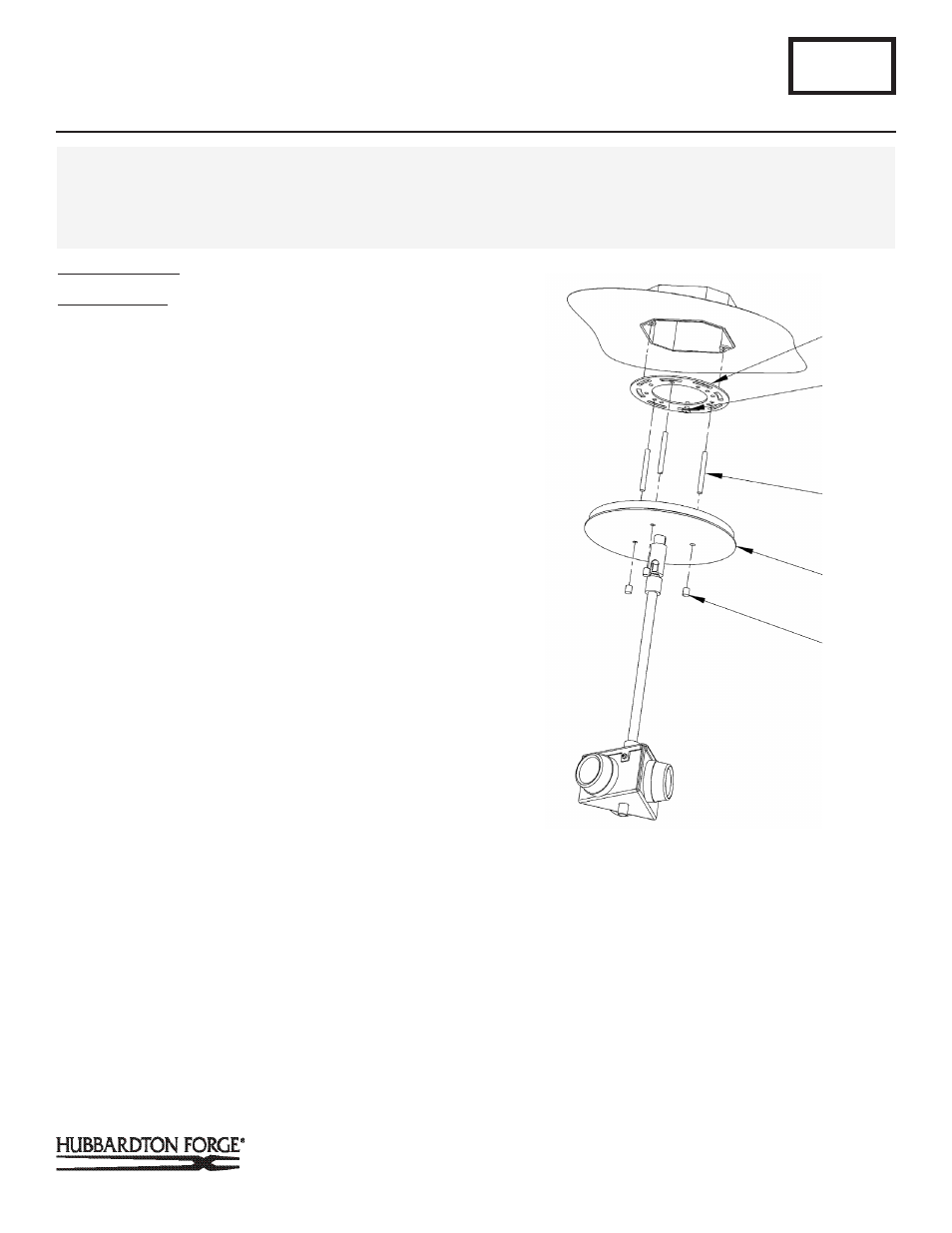

(Figure 1)

Component Parts

A Ground Screw

B Cross Bar

C Threaded Stud (3)

D Canopy

E Barrel Knobs (3)

CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.

1. Carefully unpack the fixture from the carton.

2. Thread studs (C) through appropriate holes in cross bar (B)

to match hole centers in canopy (D). Move ground screw (A)

to another available threaded hole if necessary.

3. Using two machine screws (not provided) fasten cross bar

(B) to the electric box using outer oval holes to orient fixture

to desired hanging position.

Note: A new electric box comes with screws. When replacing an

existing fixture, retain the screws for use with the new fixture.

4. Using suitable wire connectors (not provided); connect

fixture wires to supply wires (white to white and black

to black). Connect all ground wires to green

ground screw (A).

CAUTION: MAKE SURE WIRE CONNECTORS ARE TWISTED ON
SECURELY, AND NO BARE WIRE IS EXPOSED.

6. Slide fixture canopy (D) over threaded studs and push firmly

to ceiling, making sure that no wires are pinched between

fixture canopy and ceiling. Fasten with barrel knobs

(E). Be sure studs (C) are fully seated in barrel knobs (E).

A125

For Exos Semi-Flush 126503

Page 1 of 3

CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*

Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

(Figure 1)

(Continued)
